Amel Super Maramu 2000

Lofrans Tigres Windlass Overhaul Part 9: 10 Pictures from 74 to 83 Removing the Worm (shaft) from the electric motor, removing Thrust Ring, Thrust Bearing Spacer, seal, O Ring and key

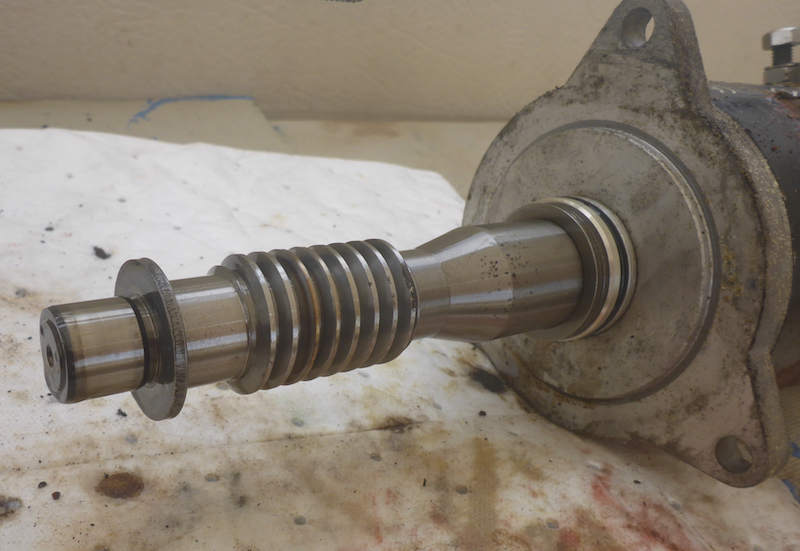

Picture 74
Now need to remove the Worm (shaft) (Part 483)

This will take me 4 hours

As I will discover later, this shaft has to come off for the reassembly
Looking at the parts detail, I knew I could not use screw driver to separate it because of the Thrust bearing AX2542 (part 485)

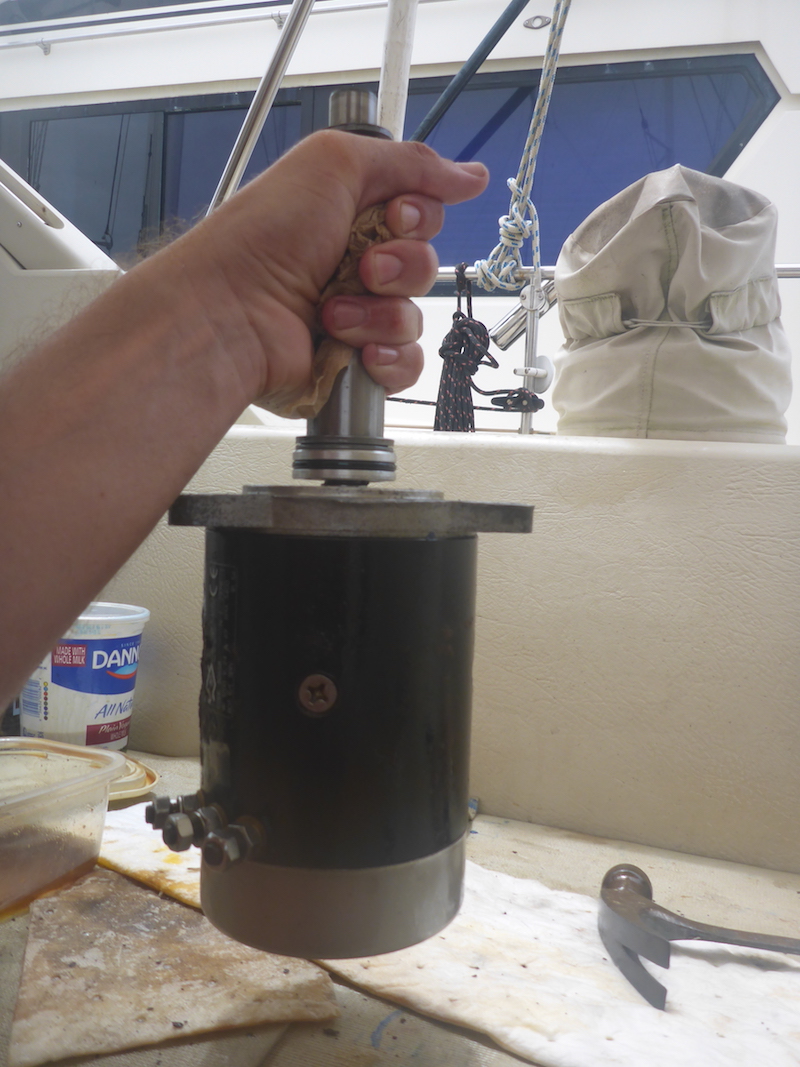

Picture 75
With one hand I hold a few centimeter above the ground

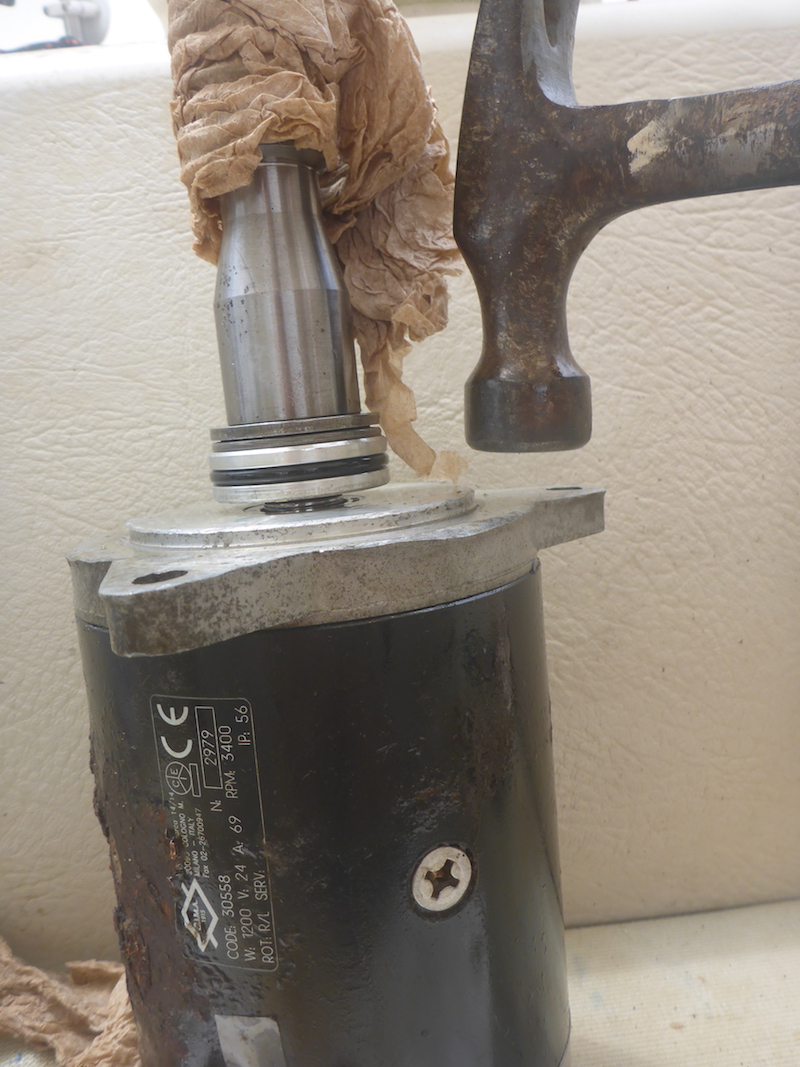

Picture 76
With the other hand, I used a hammer rotating every time
Every 5 or 6 knocks, I upside down the electric motor and Worm shaft to add penetrating oil
Note: I should have used an bronze hammer

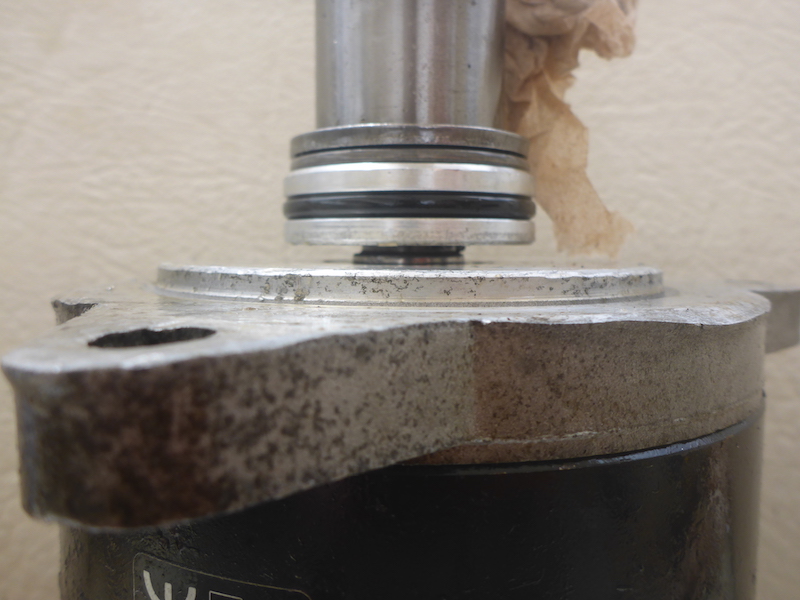

Picture 77
Starting to move

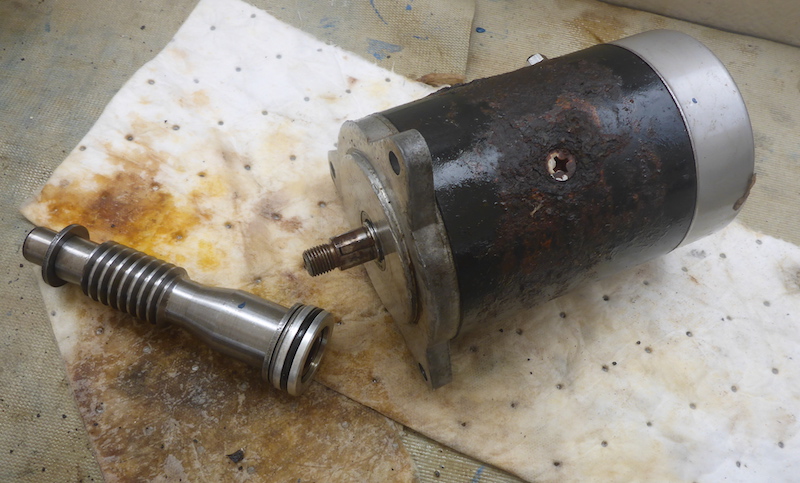

Picture 78
Finally off

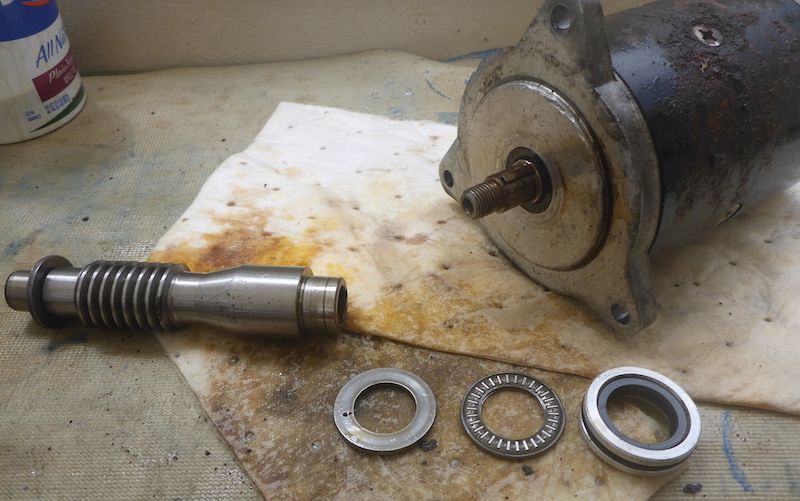

Picture 79
Looking at the parts from left to right

Worm (shaft) (Part 483)
Thrust ring CP32542 (Part 484)
Thrust bearing AX2542 (part 485)
Spacer (Part 486) which has 2 more parts in it

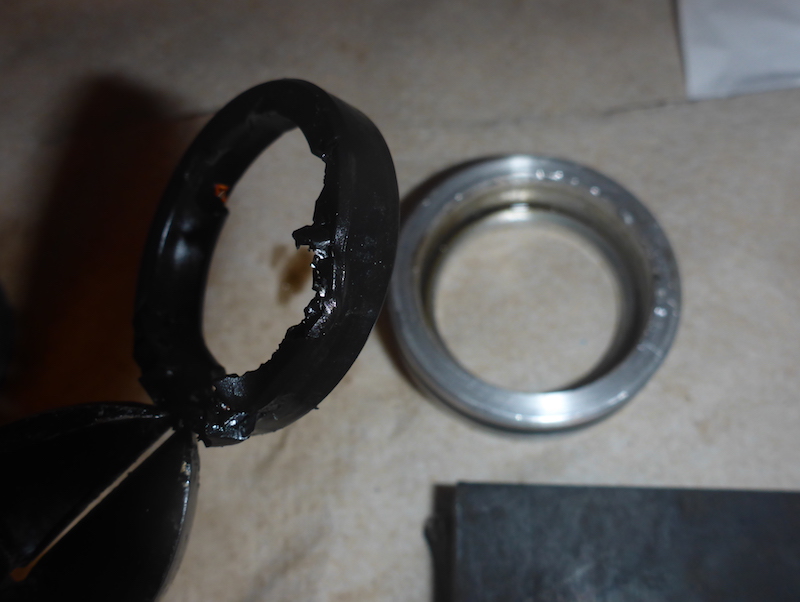

Picture 80
In the "Spacer" (Part 486), there is a 25-35-7 Oil Seal (Part 291)

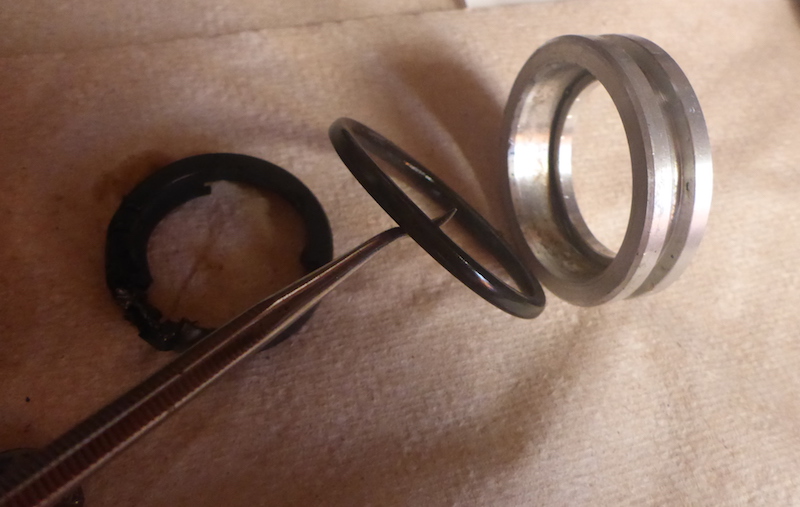

Picture 81
And an O Ring 4143 (Part 487)

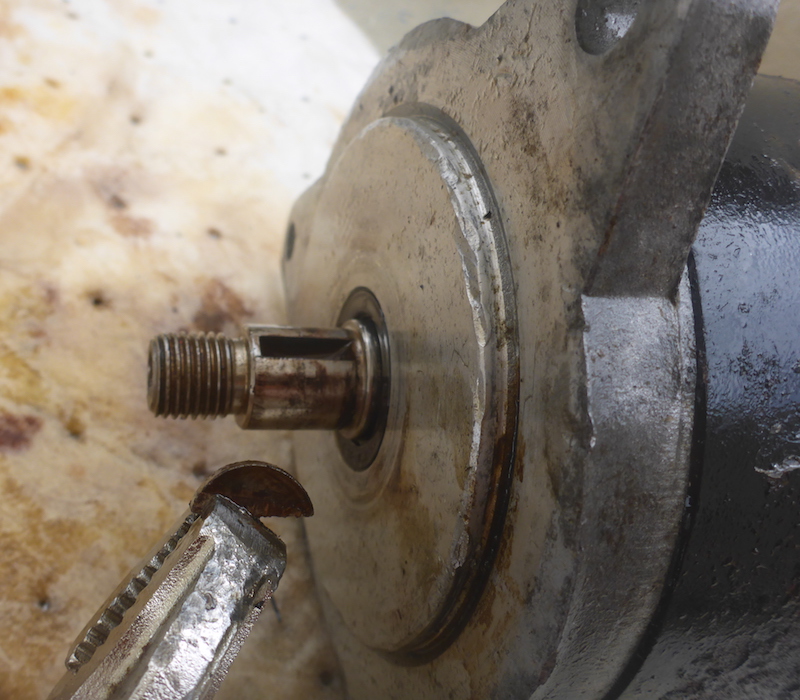

Picture 82
Removing the Round key 4x6.5 (Part 350)

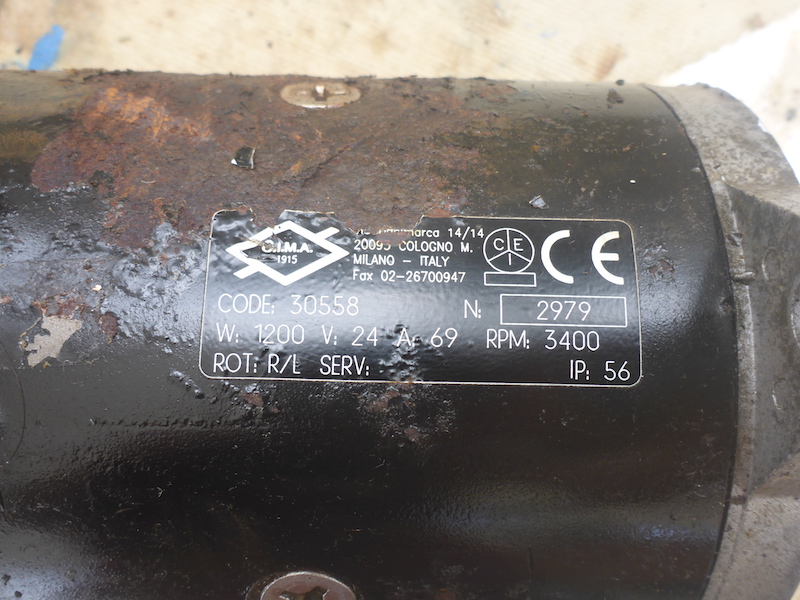

Picture 83
Take reference of the electric motor specification

Next: Part 10 Removing oil, lay parts, failed attempt to remove the bolt to inspect the brushes
