Amel Super Maramu 2000

Lofrans Tigres Windlass Overhaul

Part 18:

8 Pictures from 149 to 156

Putting back O Ring and bearing on Motor Cover

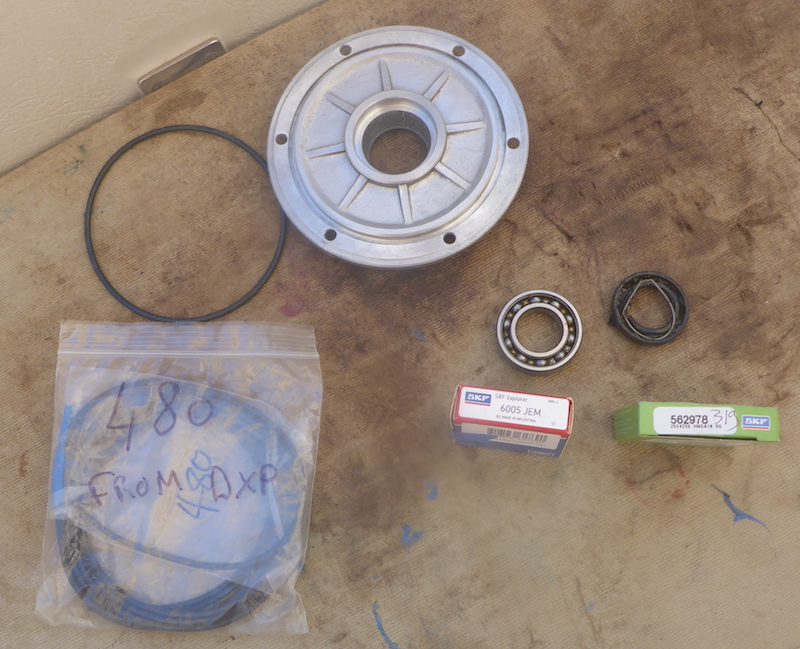

Picture 149
Now the Cover (Part 481)
Will put a new Bearing 6005 (Part 323)
New O Ring seal 4462 (Part 480)
 windlass lofrans tigres overhaul Amel Super Maramu 2000

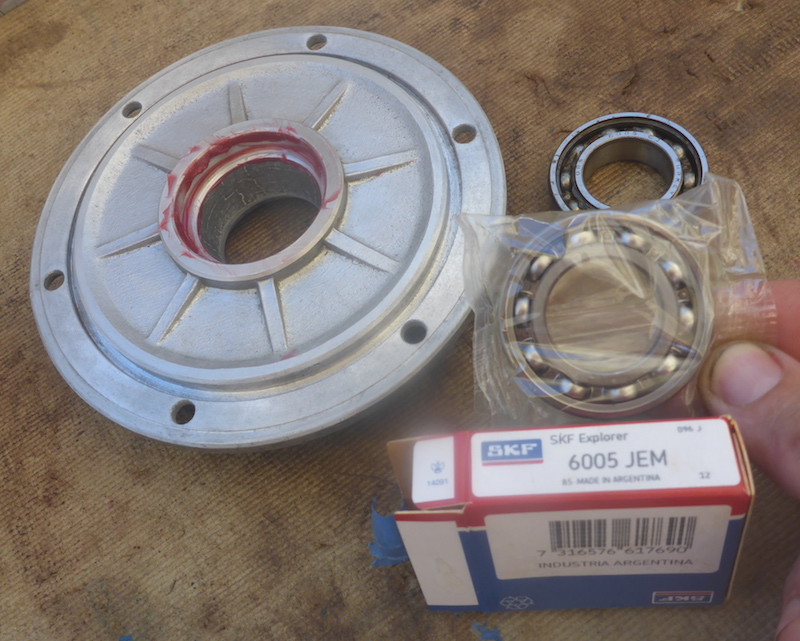

Picture 150
Taking out new Bearing 6005 (Part 323)
 windlass lofrans tigres overhaul Amel Super Maramu 2000

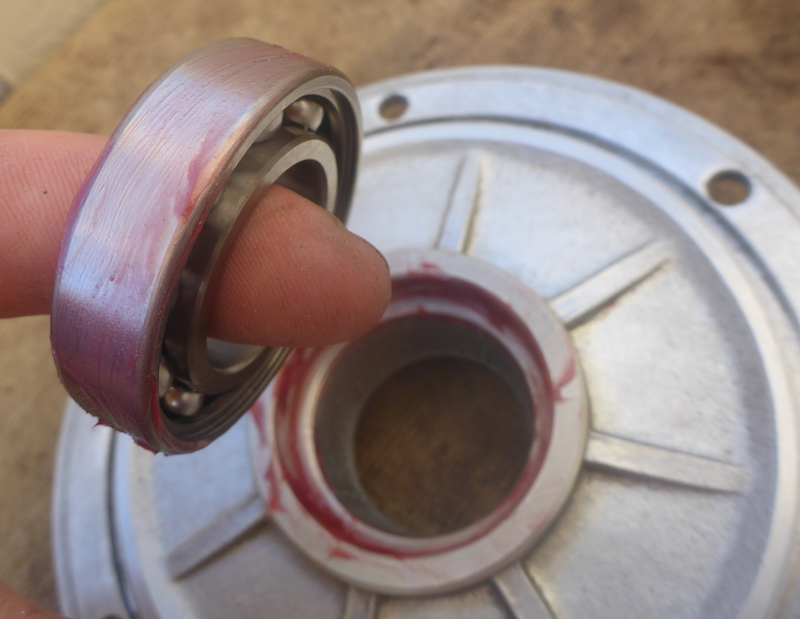

Picture 151
Add grease on the Cover and the new Bearing 6005 (Part 323)
 windlass lofrans tigres overhaul Amel Super Maramu 2000

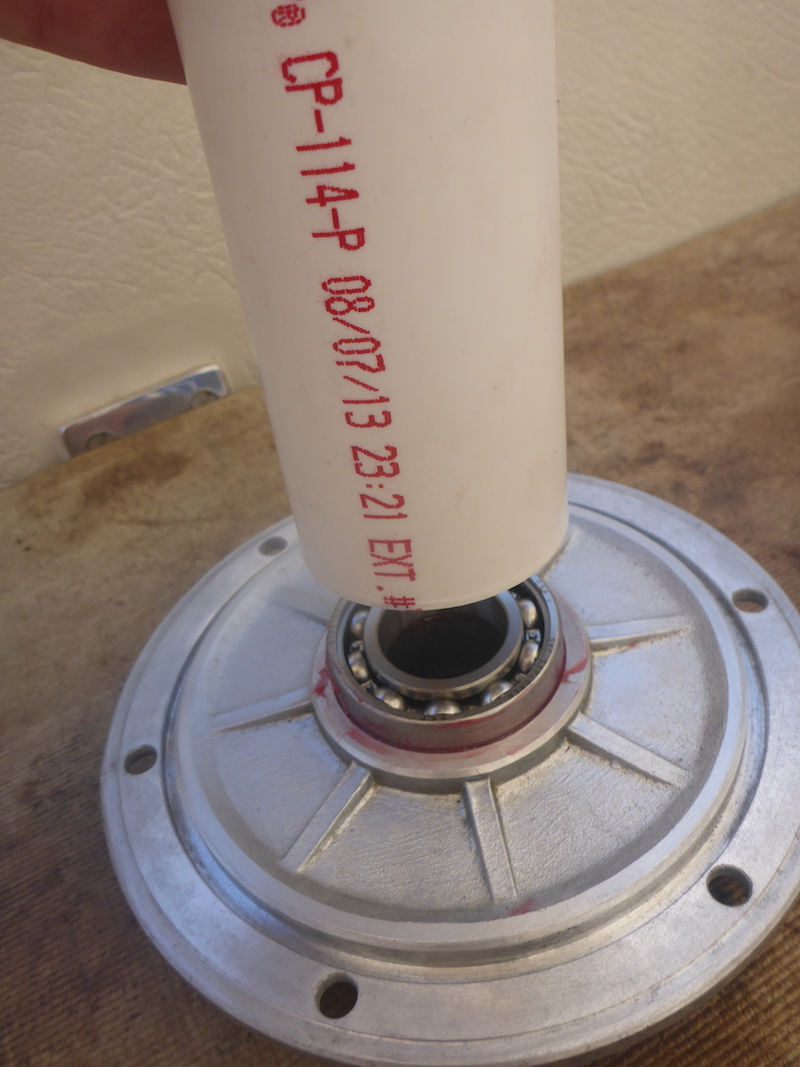

Picture 152
Using gently a hammer on a PVC pipe
 windlass lofrans tigres overhaul Amel Super Maramu 2000

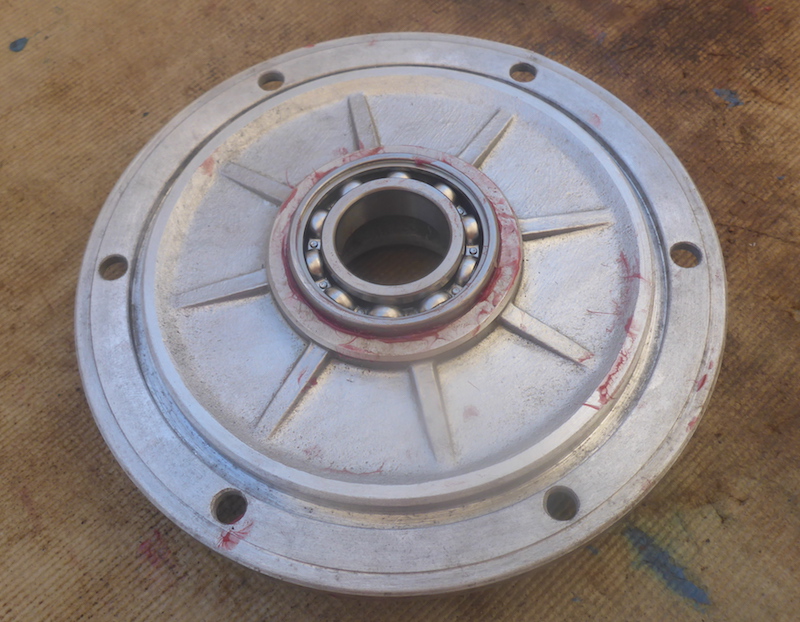

Picture 153
Now in place
 windlass lofrans tigres overhaul Amel Super Maramu 2000

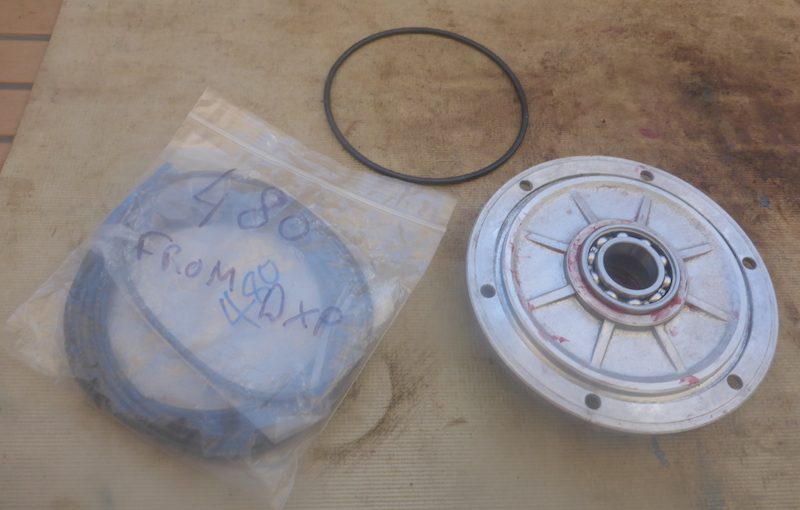

Picture 154
Now the O Ring seal 4462 (Part 480)
 windlass lofrans tigres overhaul Amel Super Maramu 2000

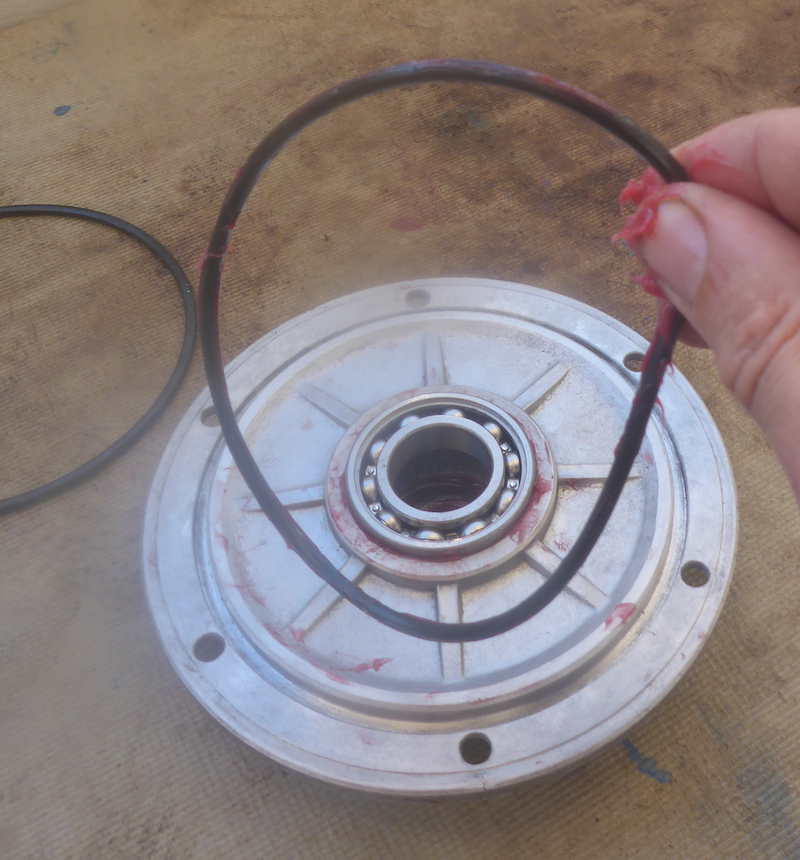

Picture 155
Put some grease
 windlass lofrans tigres overhaul Amel Super Maramu 2000

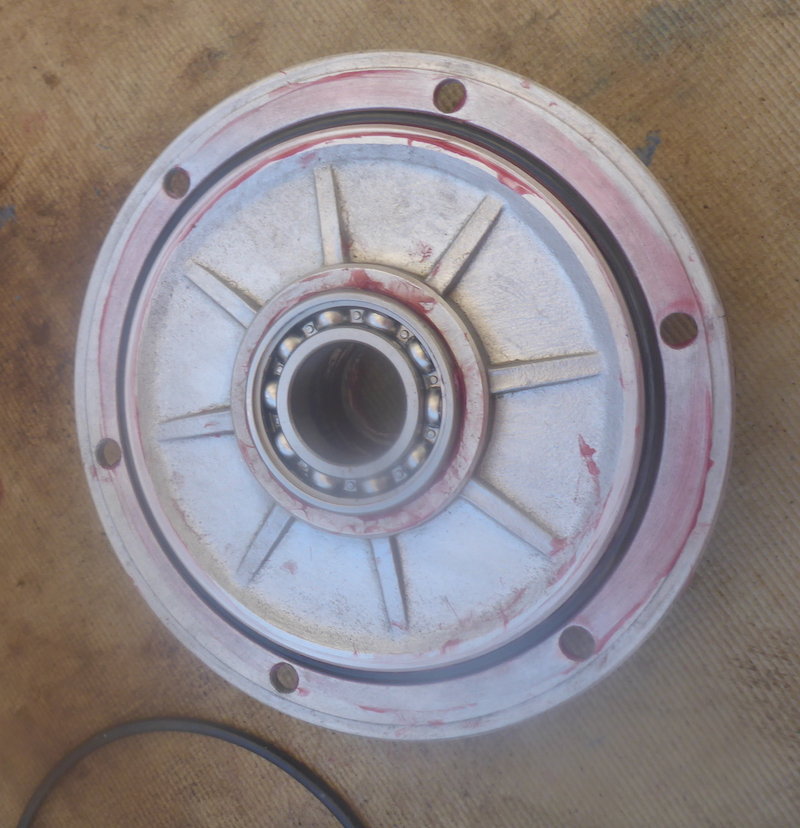

Picture 156
Put in
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Next: Part 19
