Lofrans Tigres Windlass Overhaul Part 8: 5 Pictures from 69 to 73 Removing seal and bearing from the housing, unbolting the electric motor from the housing

Picture 69

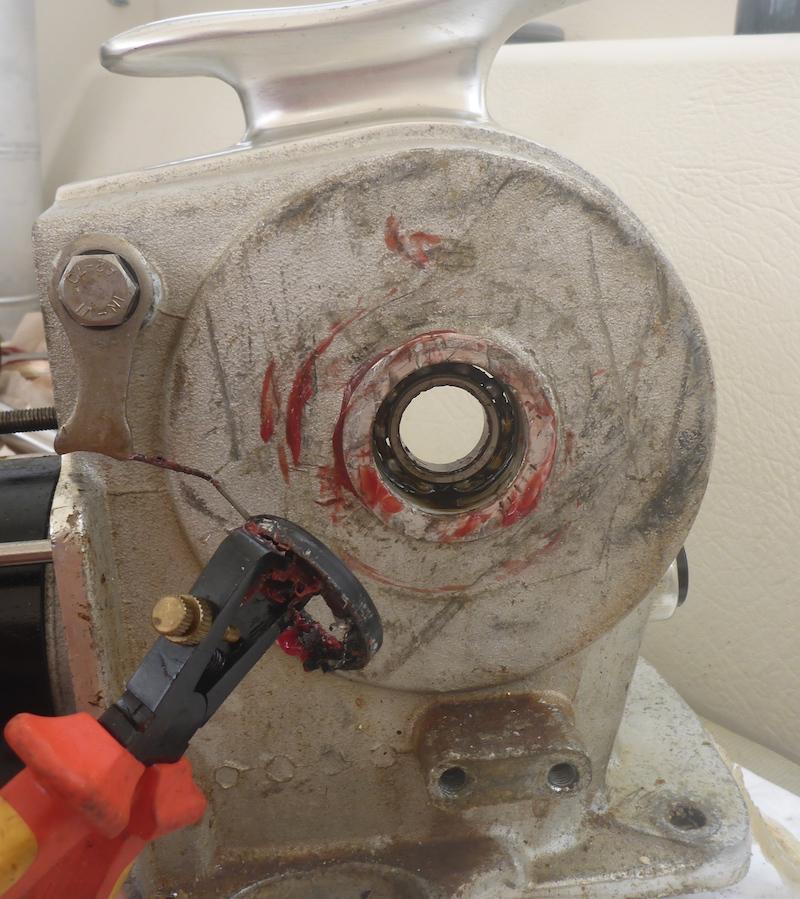

Removing the other oil Seal 25-42-6 (Part 319)

Picture 70

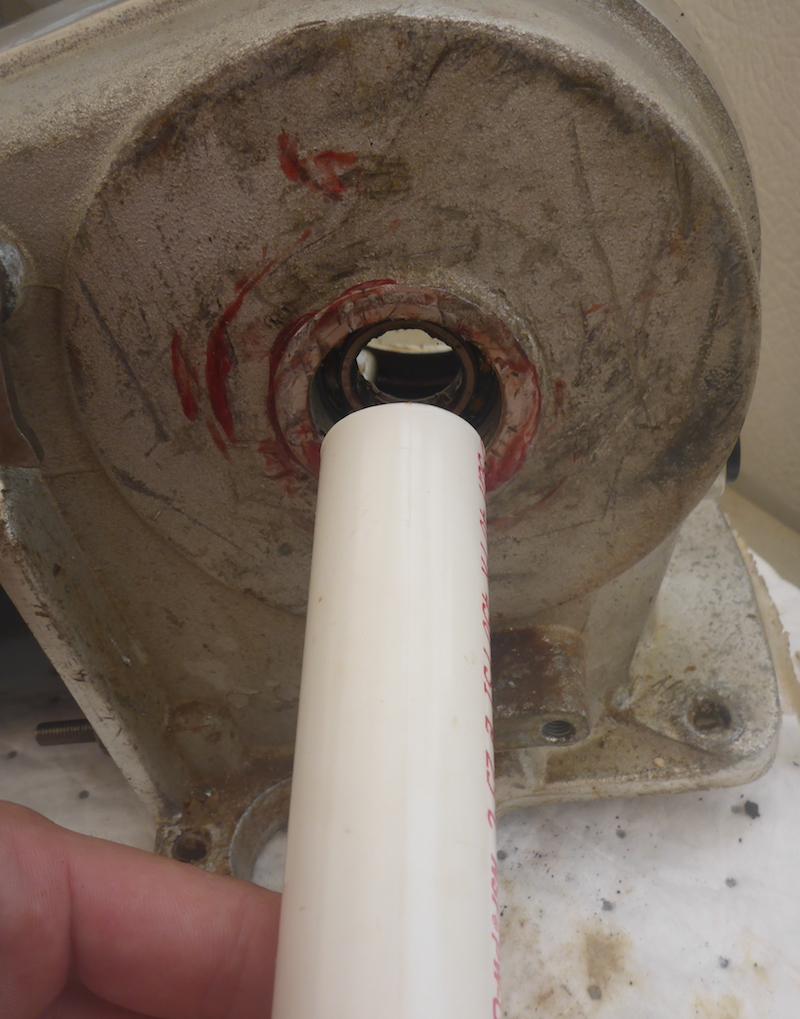

Removing the other ball 6005 bearing (Part 323)
Using same PVC tube and hammer

Picture 71

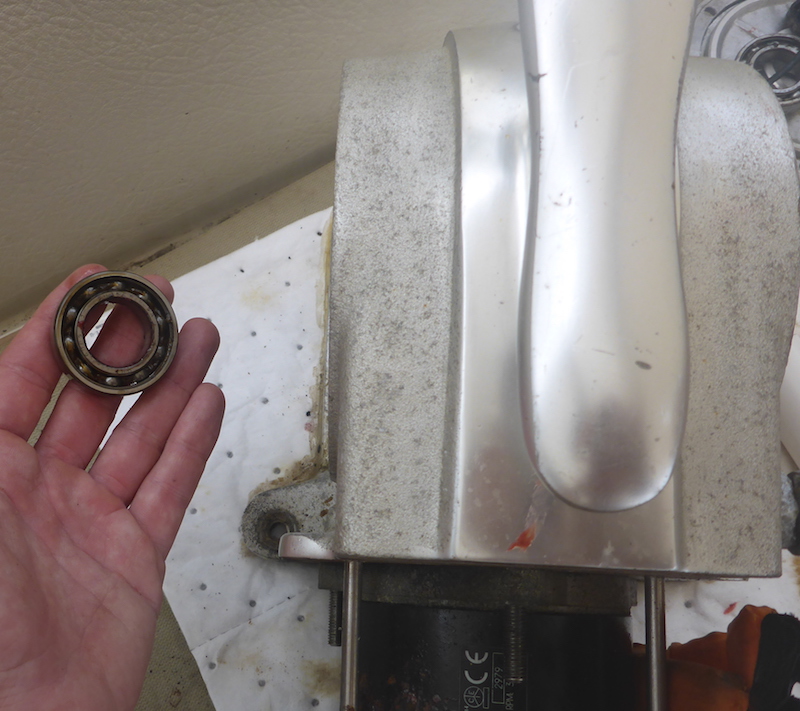

Here is the ball 6005 bearing (Part 323)
Note: the ball bearing also was in perfect condition and could still have been used

Picture 72

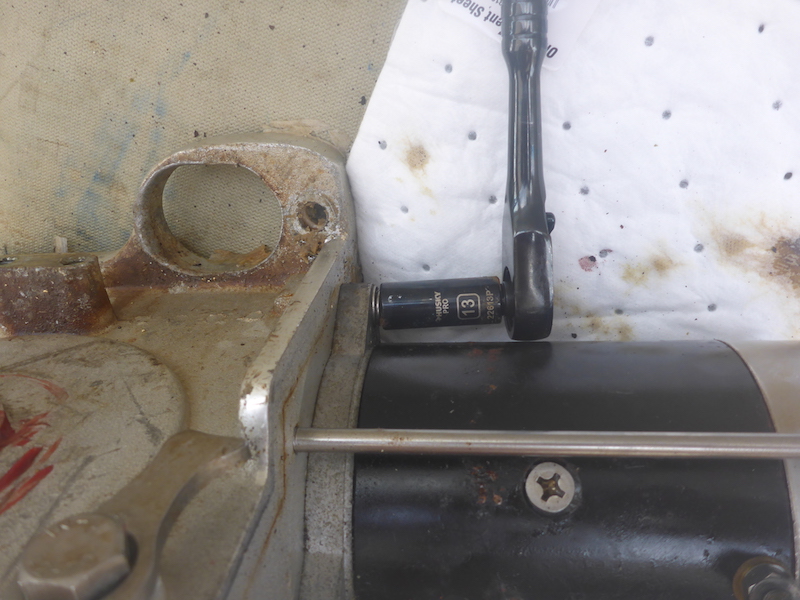

Using 13 mm socket I unbolt the 3 nuts holding the electric motor

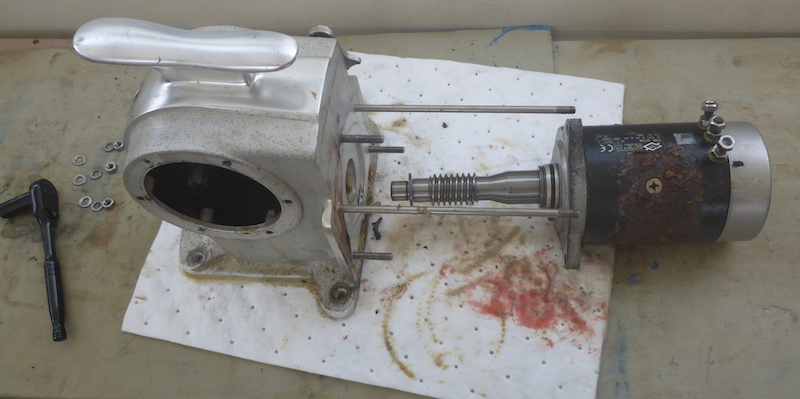

Picture 73
Now removed

Next: Part 9 Removing the Worm (shaft) from the electric motor, removing Thrust Ring, Thrust Bearing Spacer, seal, O Ring and key
