Lofrans Tigres Windlass Overhaul Part 3: 8 Pictures from 25 to 32 Extraction of the shove gipsy, gipsy / chain wheel and gipsy holder

Pictures 25 to 32 are similar to the below links, a little less detailed.
Also was smoother and done in half an hour as opposed as 4 hours.

Extraction of the shove gipsy, gipsy / chain wheel and gipsy holder

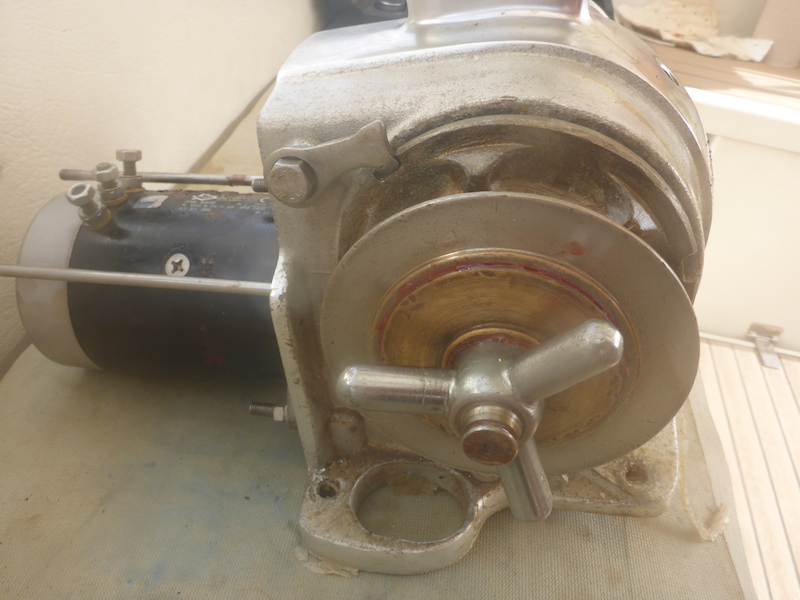

Picture 25
use a 17 mm socket to lock the gipsy stopper into a gipsy border socket

Picture 26
unscrew the wingnut

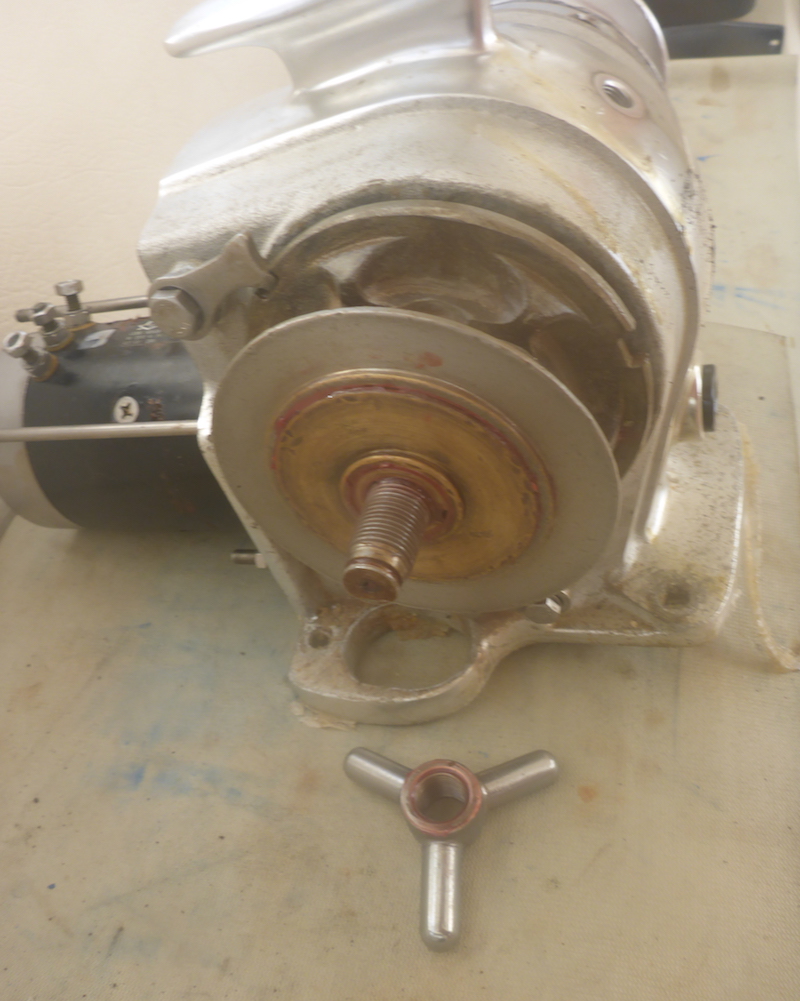

Picture 27
extract the shove gipsy

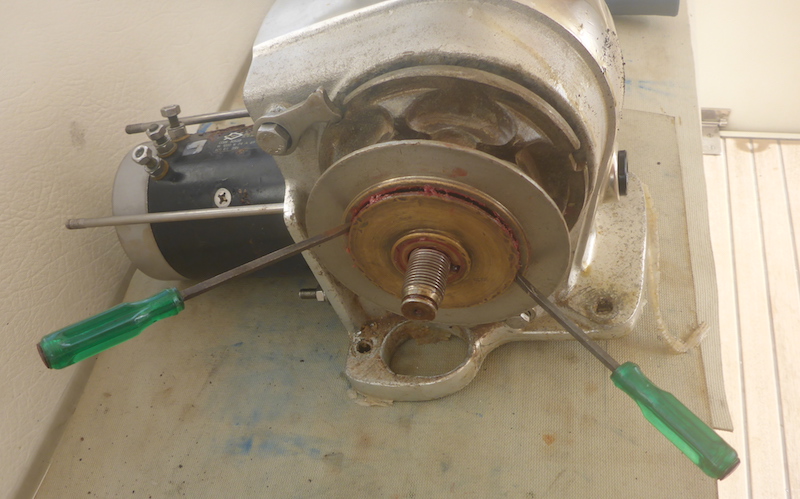

Picture 28
shove gipsy is out

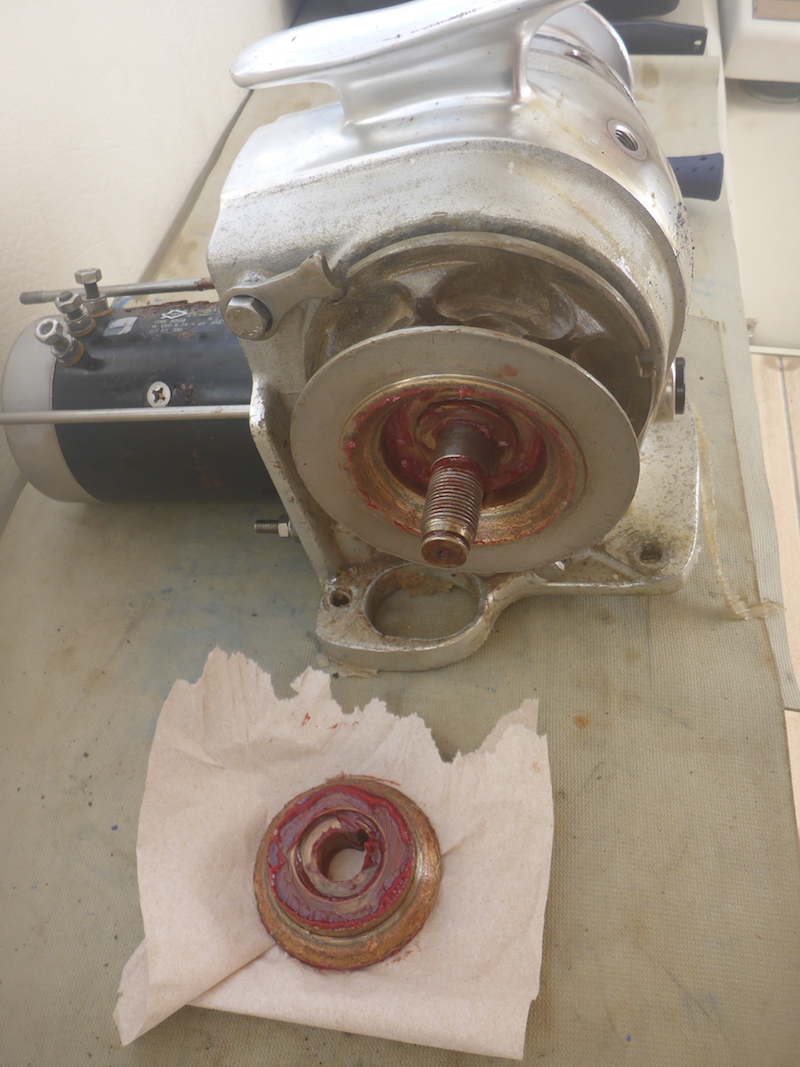

Picture 29
using a 13 mm socket unscrew bolt, remove washer and stripper

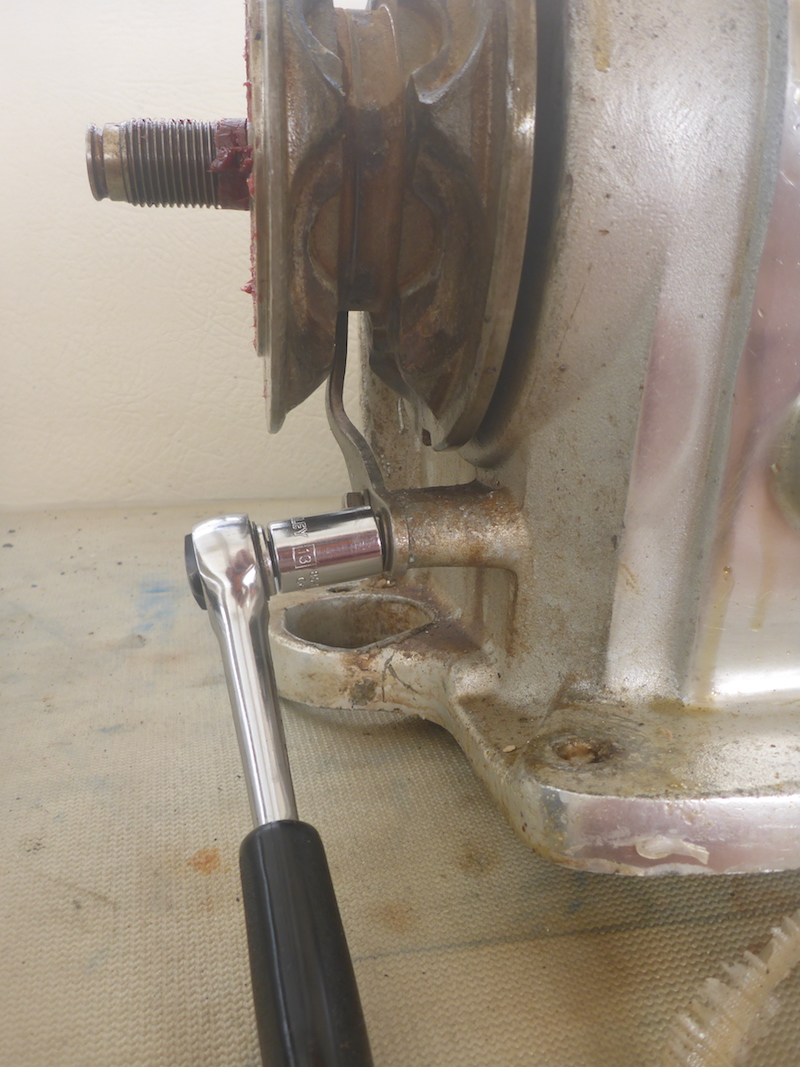

Picture 30
bolt and stripper out

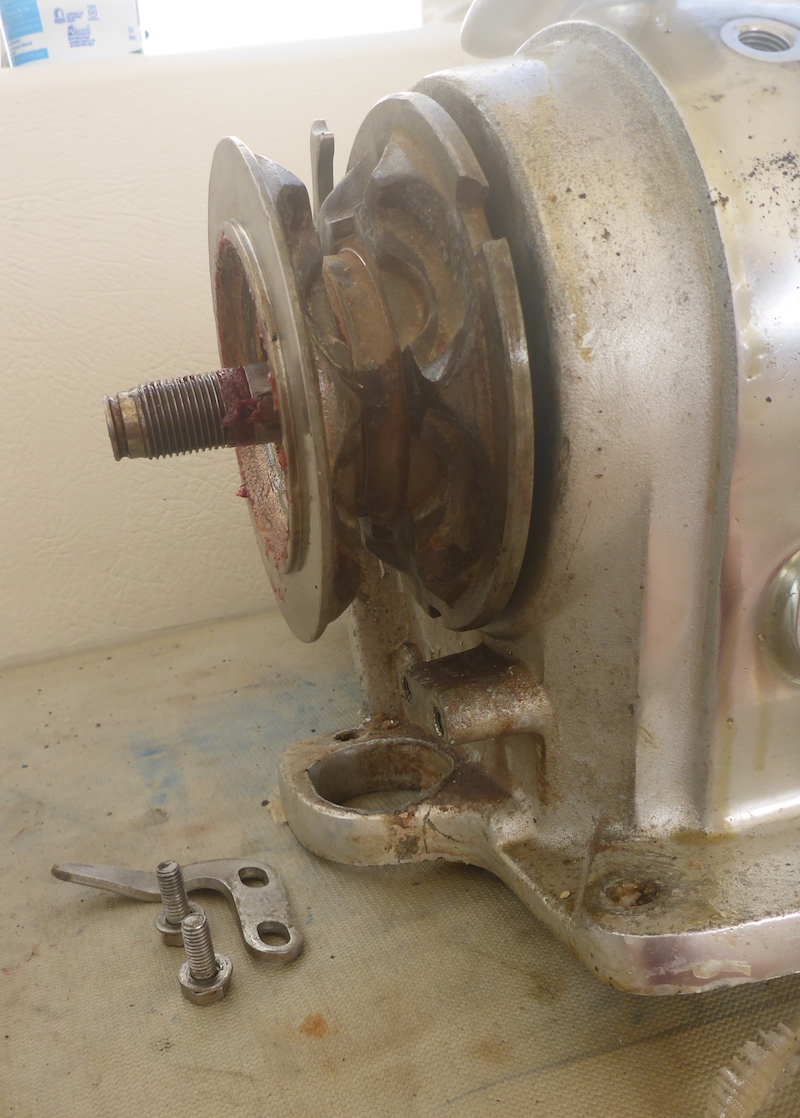

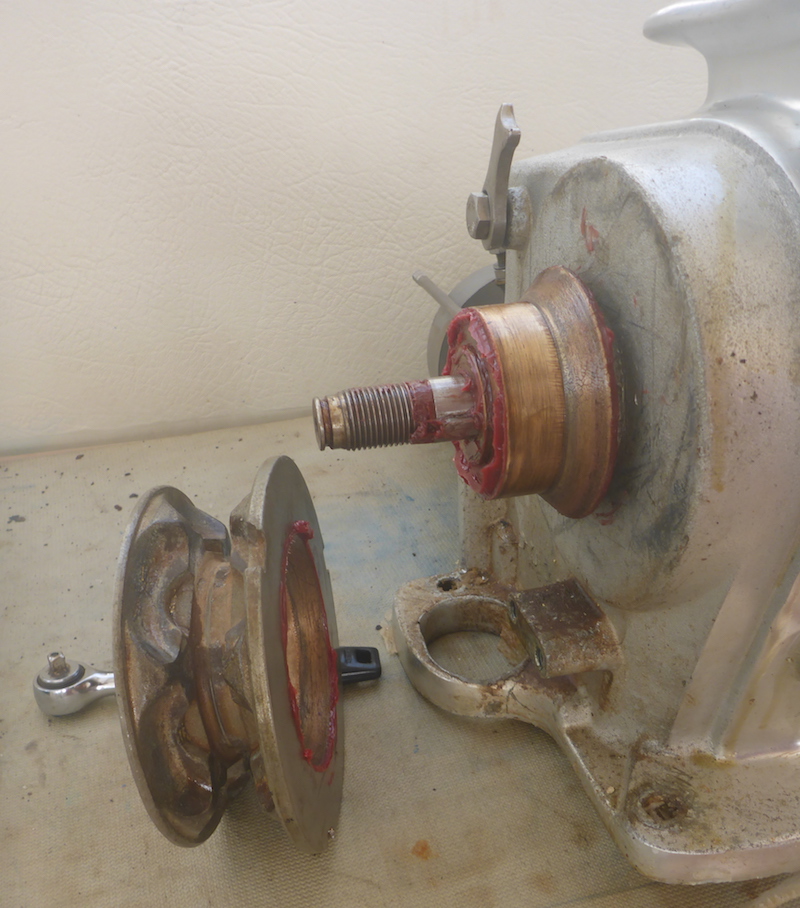

Picture 31
remove the gipsy/chain wheel

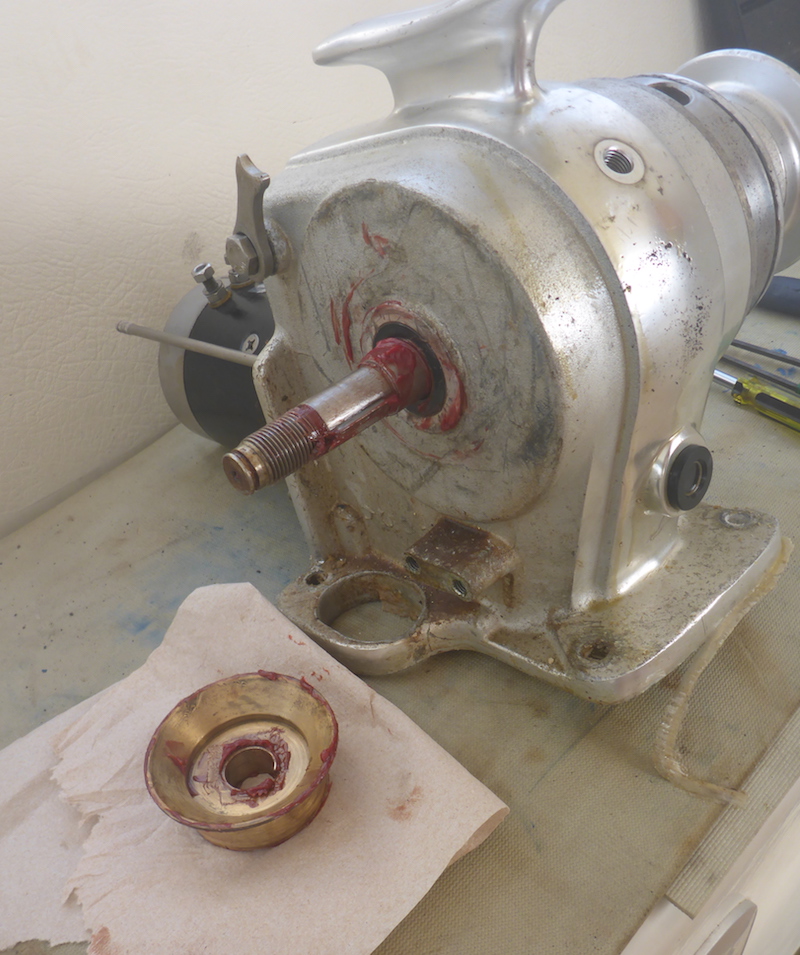

Picture 32
remove the gipsy holder

Picture 39 should be here as I remove the key from the shaft

Next: Part 4 Extraction of the drum, emergency wheel clutch plate and manual emergency wheel
