Amel Super Maramu 2000

Lofrans Tigres Windlass Overhaul Part 16: 16 Pictures from 130 to 145 Reassembly of the Worm (Shaft) with O Ring, Seal,

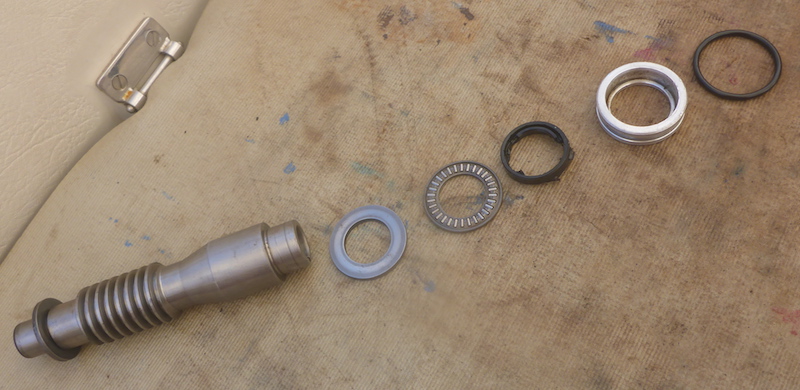

Picture 130
As I mentioned, I keep the parts (including the parts that will be replaced) in the order they were located
and I throw away the old parts (here O Ring and seal) when I put the new ones

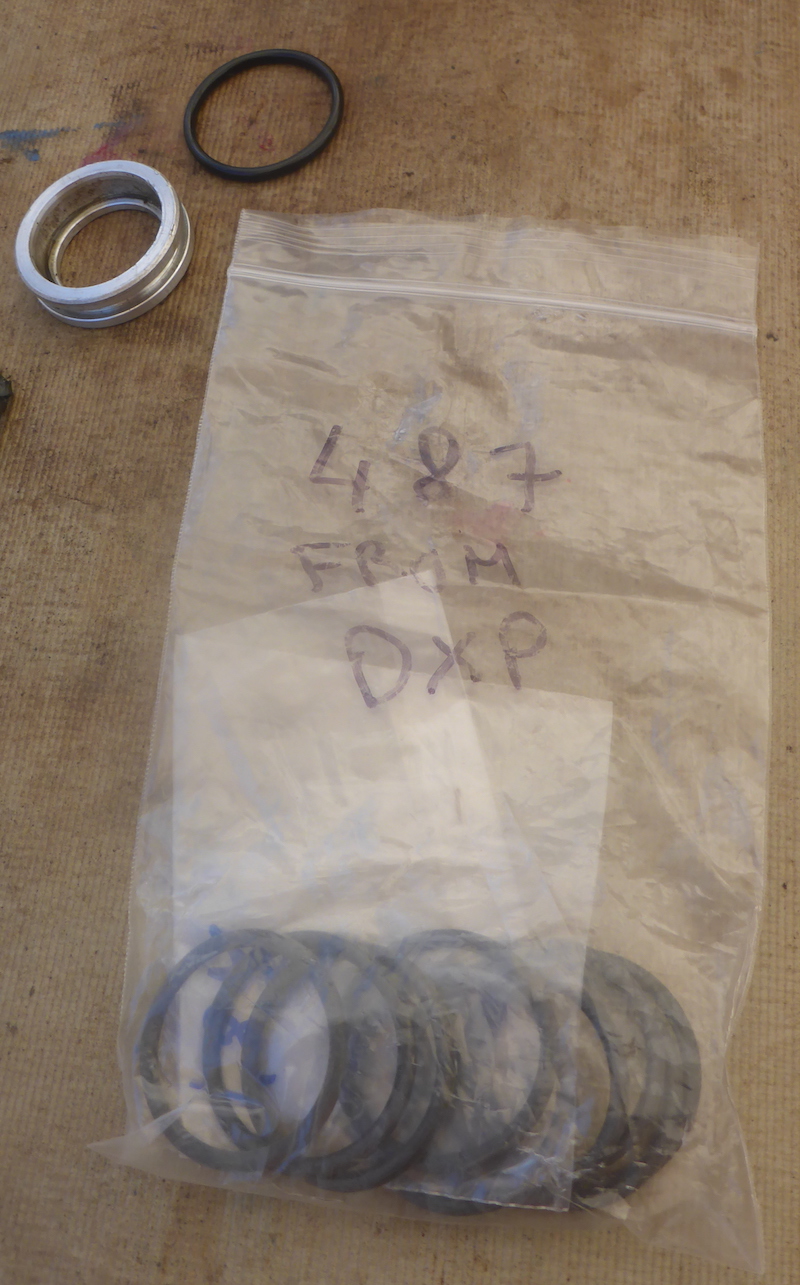

Picture 131
O Ring seal 4143 (Part 487)
Note: each bag has the part number written on it

Picture 132
An article I read said to "oil" them, I hope greasing them was ok before putting then on

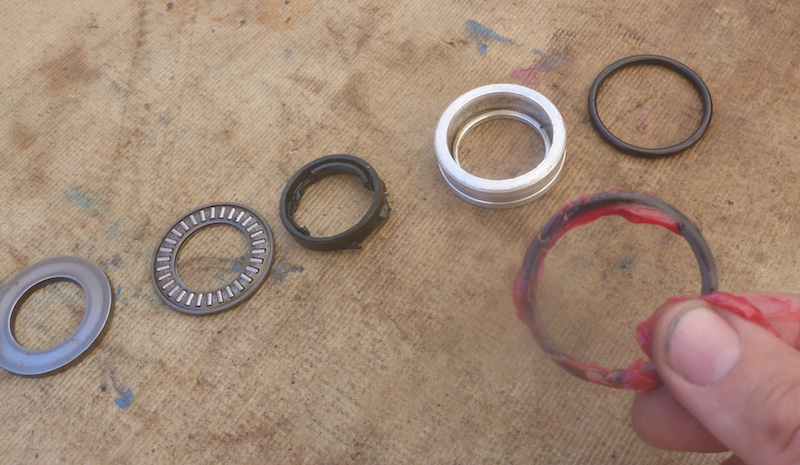

Picture 133

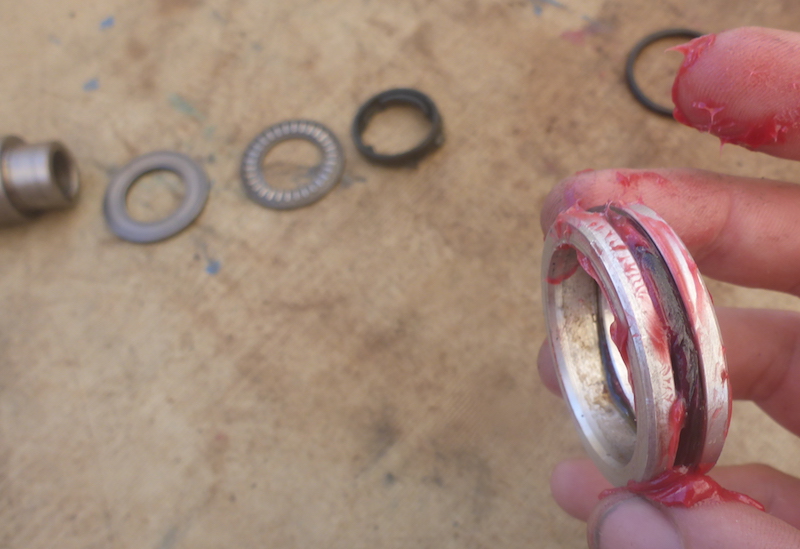

Now on

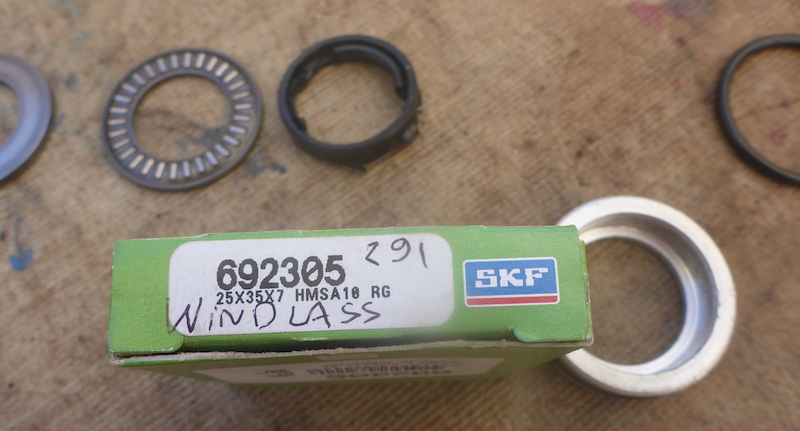

Picture 134
Next is the Seal 25-35-7 (Part 291)

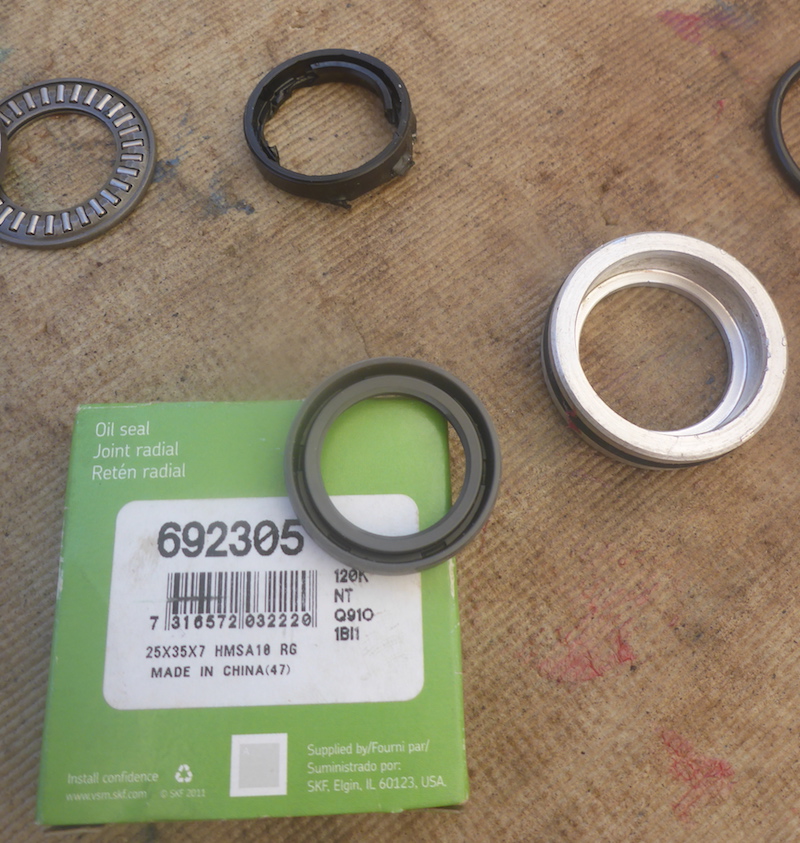

Picture 135
Seal 25-35-7 (Part 291)

Picture 136

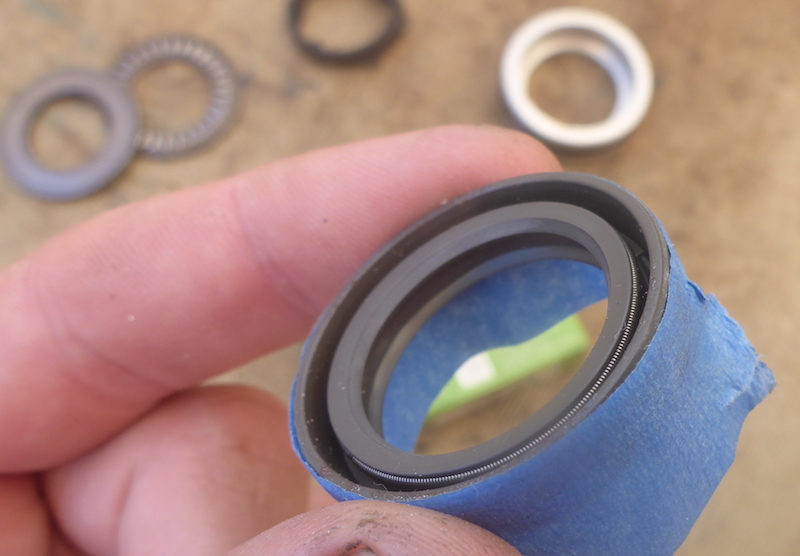

I have always wonder if putting grease on the outside of the seal would compromise the RTV Silicone gasket maker
So to be on the safe side I put blue tape

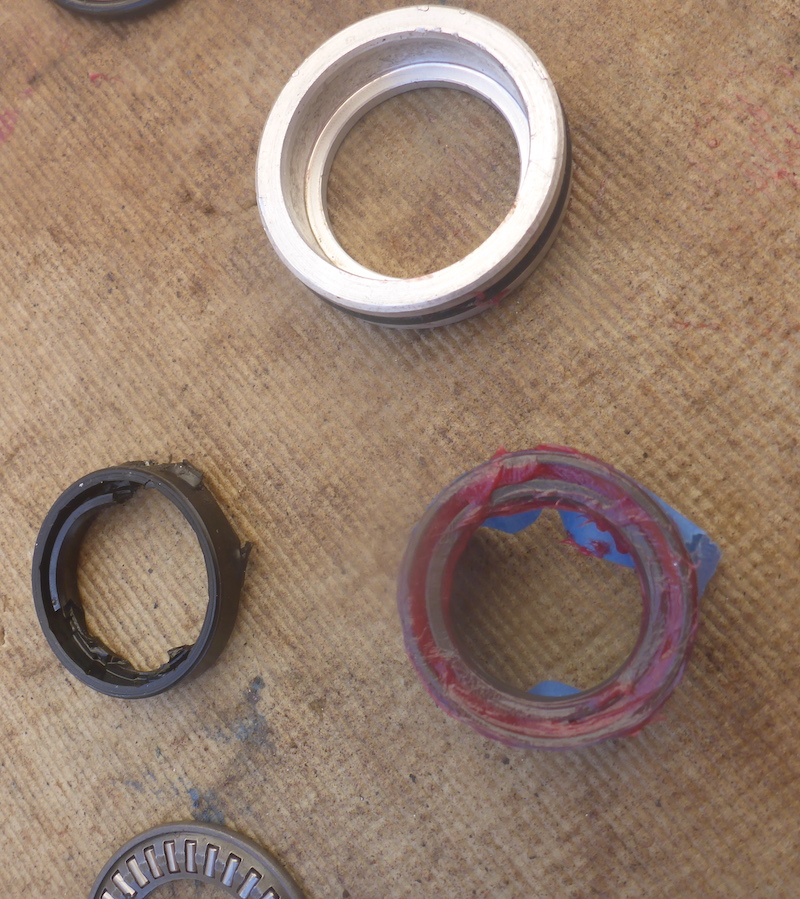

Picture 137
Filling up with grease

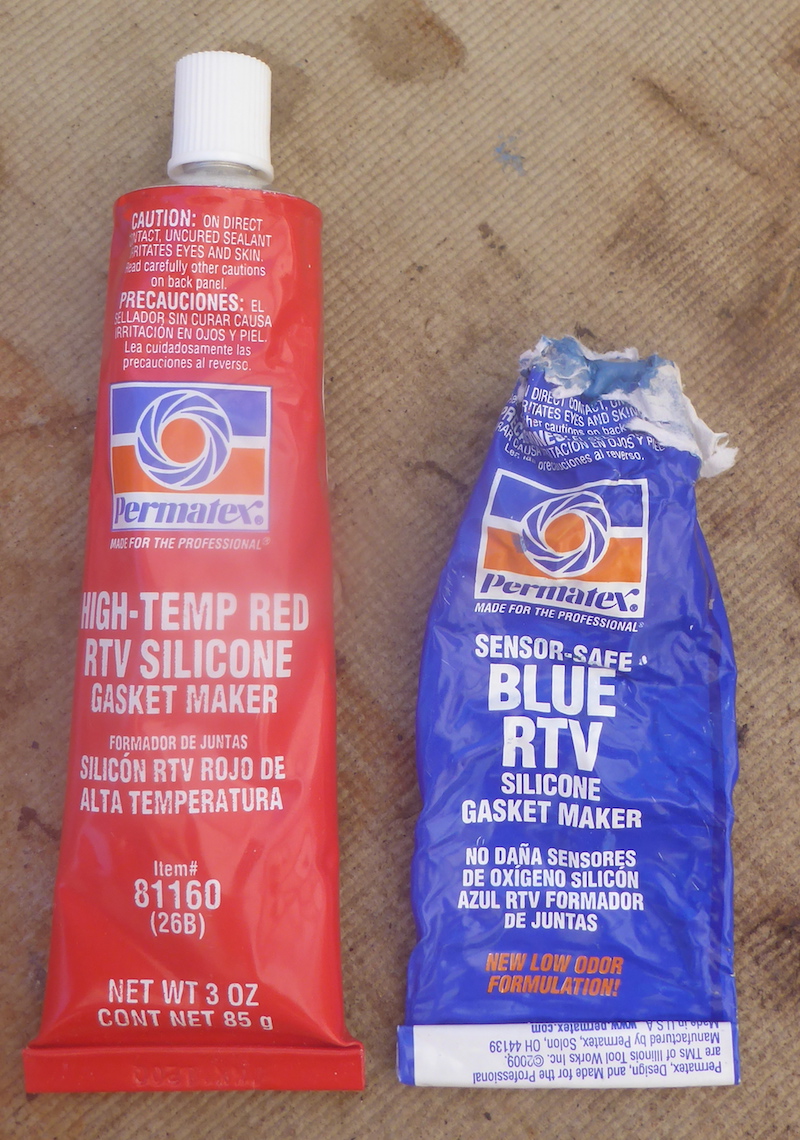

Picture 138
My "Blue" RTV Silicone gasket maker was not usable, so I used the Red (hope this is ok)

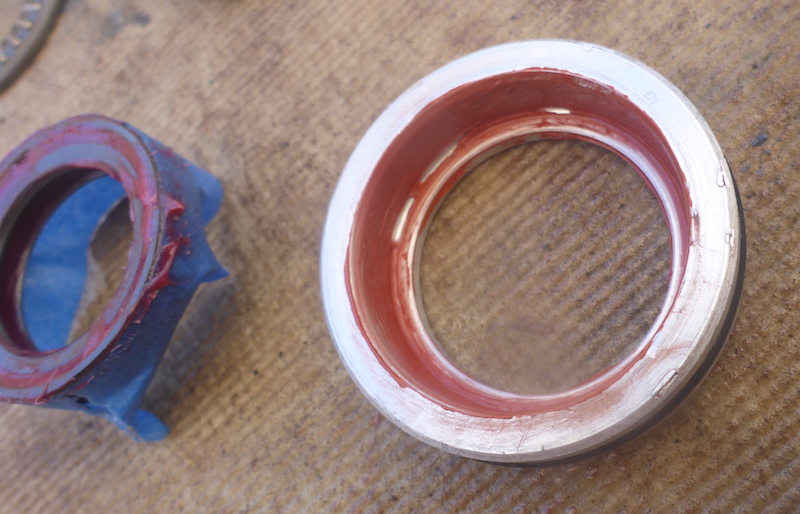

Picture 139
Coast inside the spacer

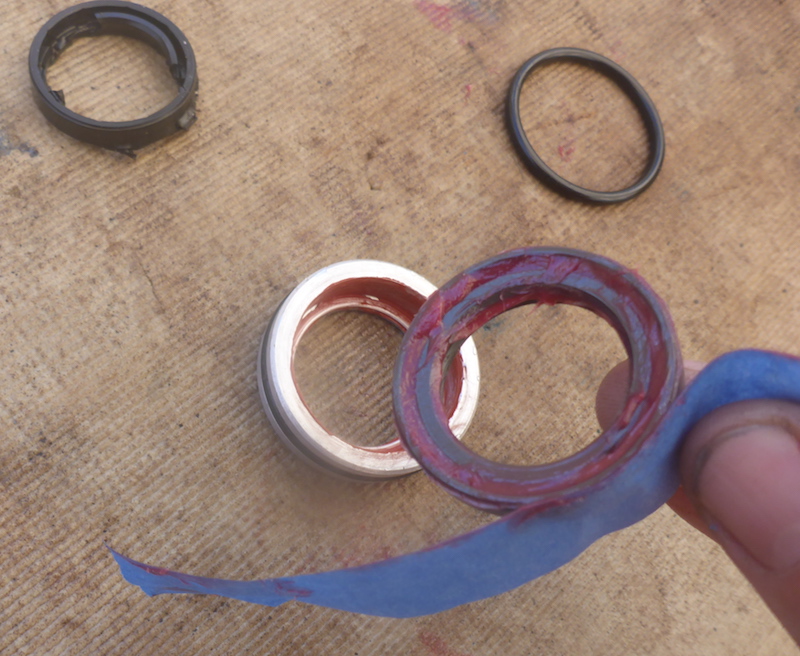

Picture 140
removed the blue tape around the seal

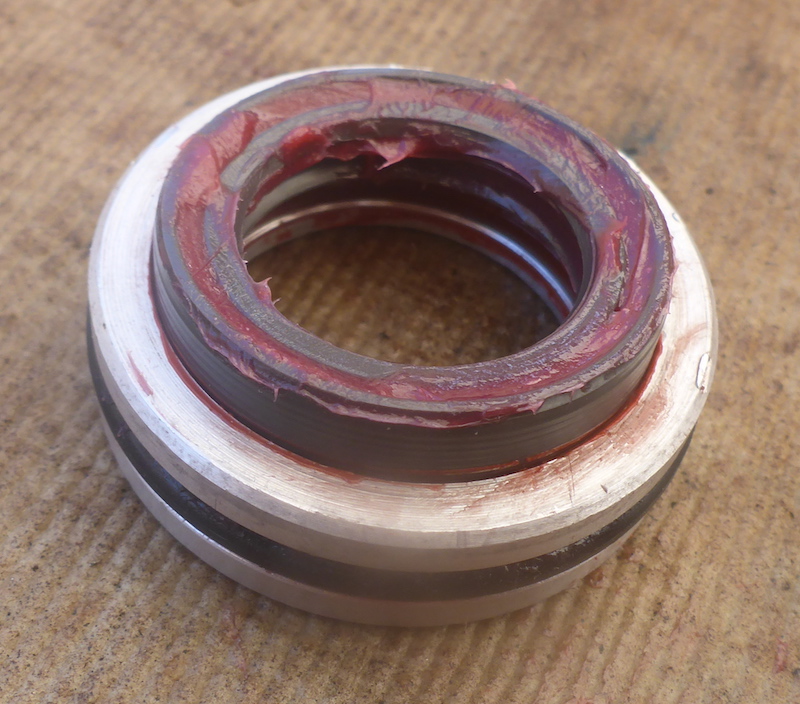

Picture 141
Place it over (lips facing up)

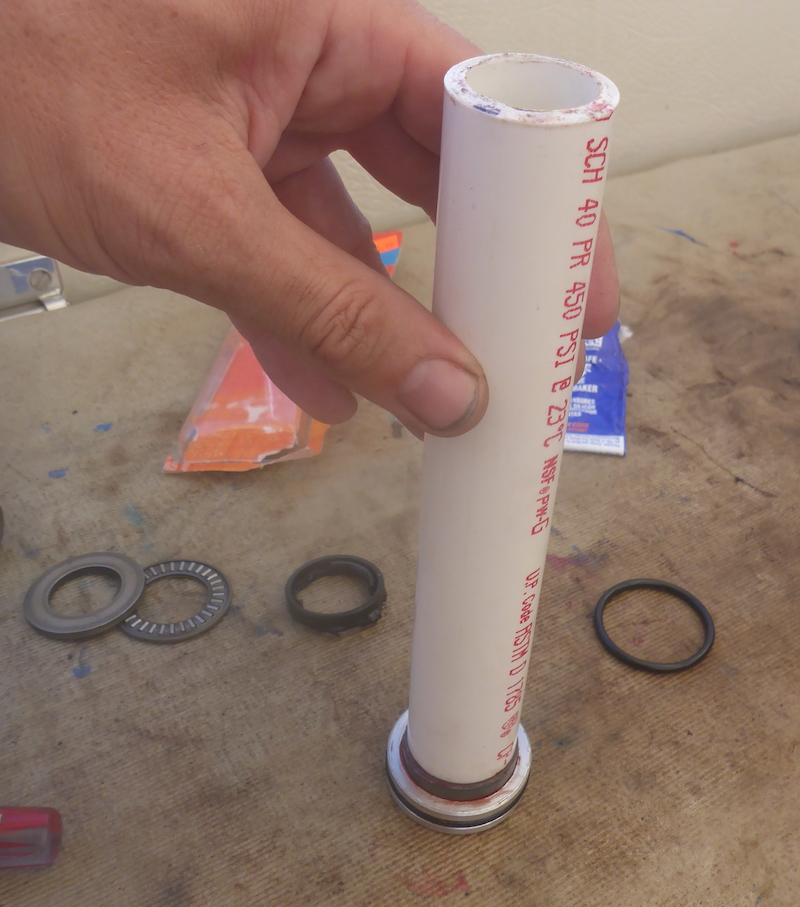

Picture 142
With a PVC pipe pushed it in

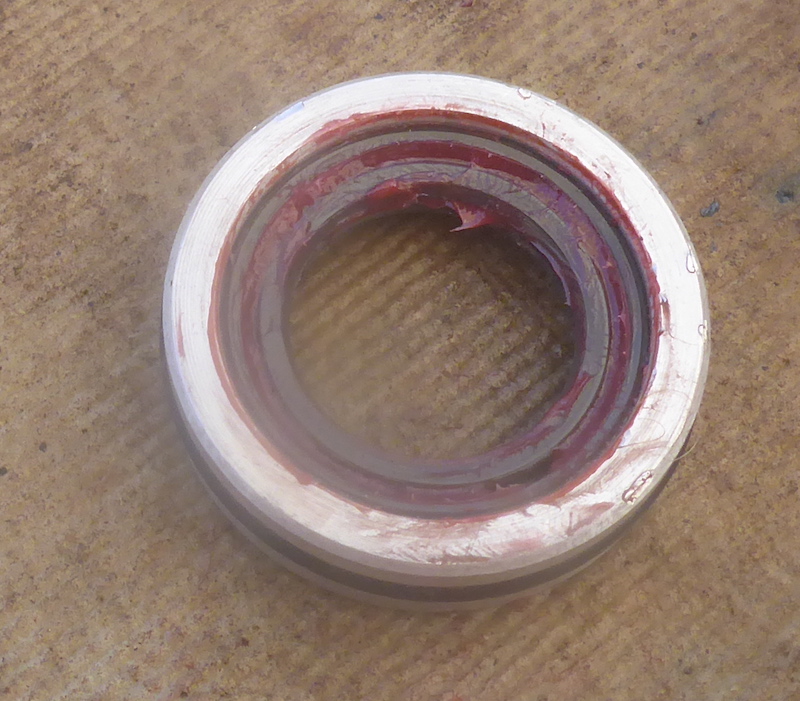

Picture 143
Now in place

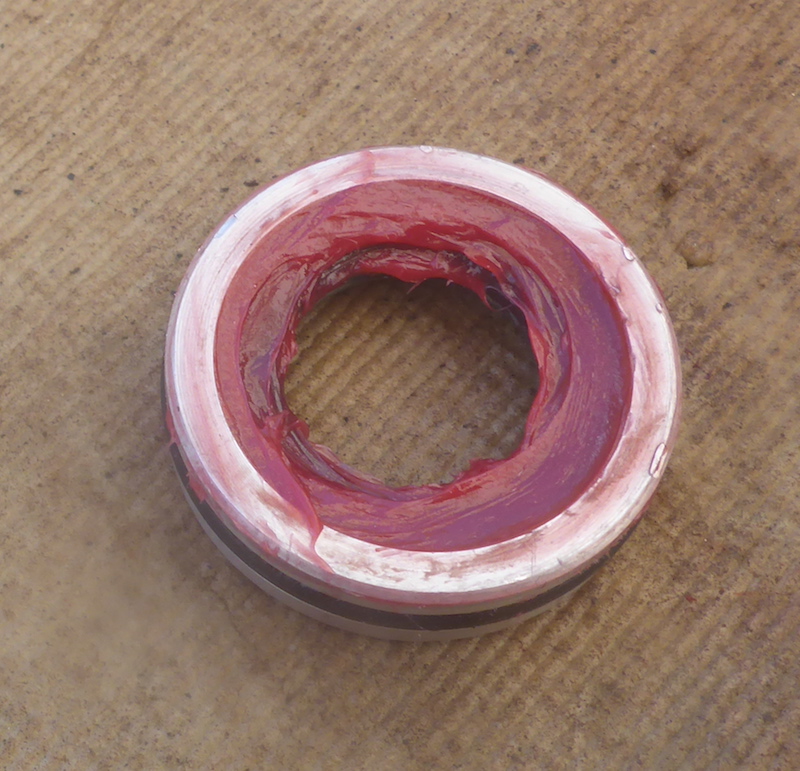

Picture 144
Added grease

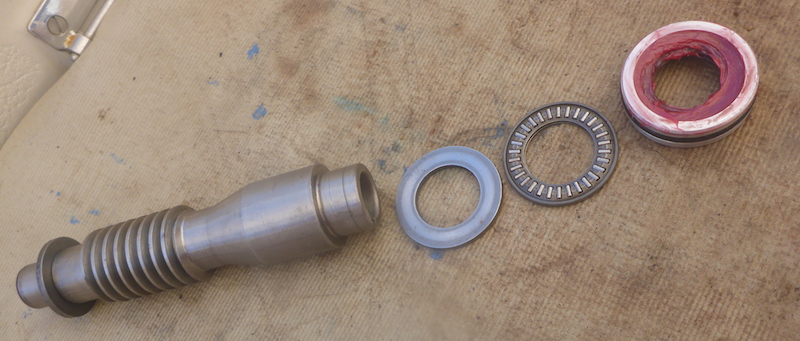

Picture 145
Here are the parts ready for reassembly - which should not be done now

Next: Part 17 Putting key back on Electric motor shaft
