Lofrans Tigres Windlass Overhaul Part 28: 4 Pictures from 254 to 258 Reconnecting electric wires of the Chain Counter "Eye" / Sensor

Picture 254

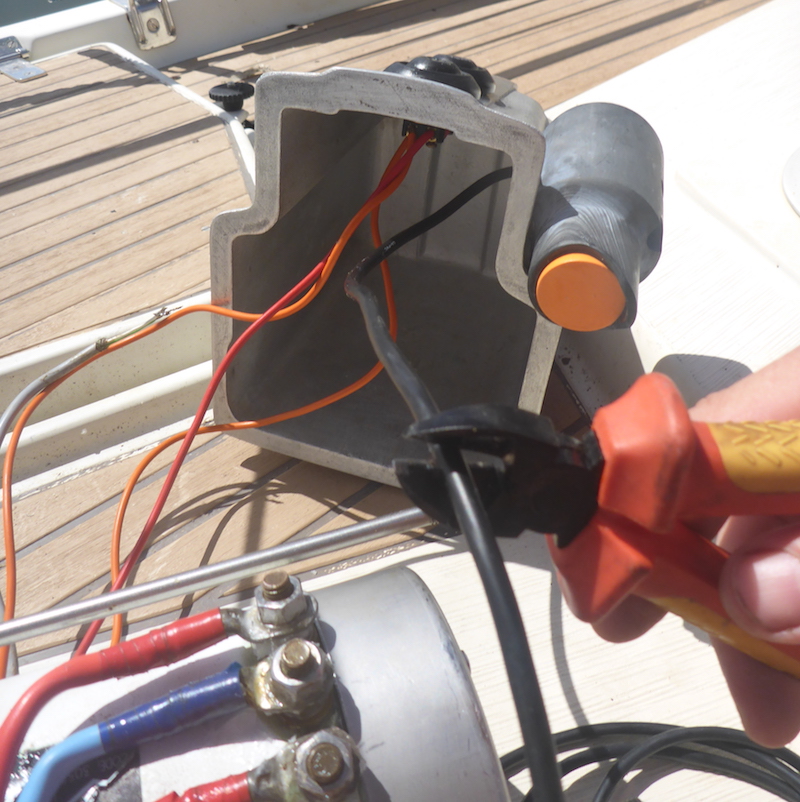

The wire for the chain counter "eye" or sensor was too long to fit in the box
So I had to cut it

Picture 255

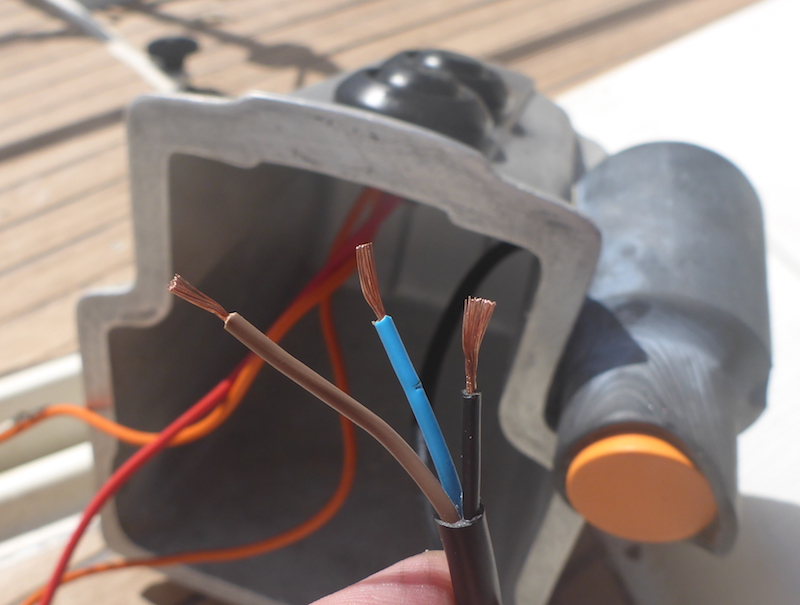

Strip the small wires

Picture 256

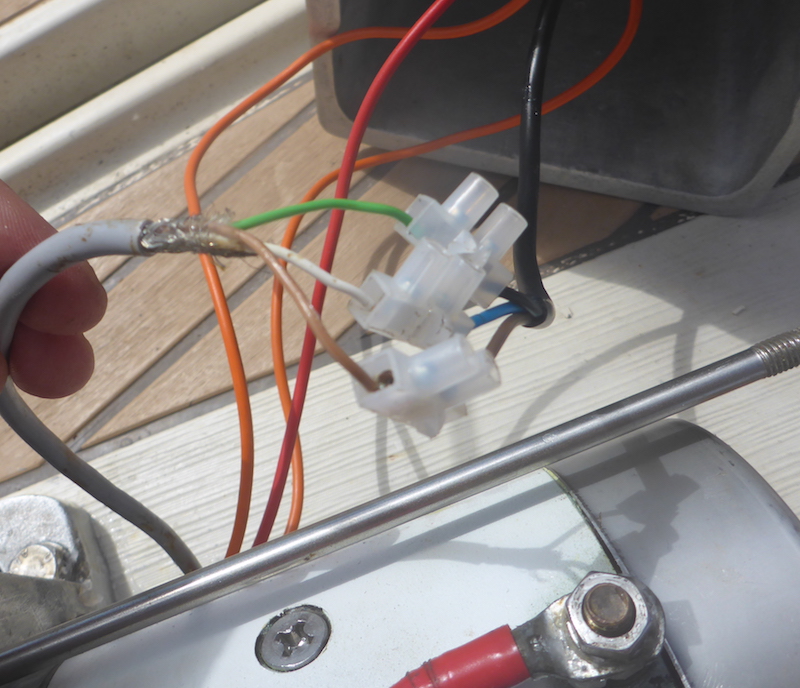

Since I have never solder, I simply used electric dominos

Picture 257

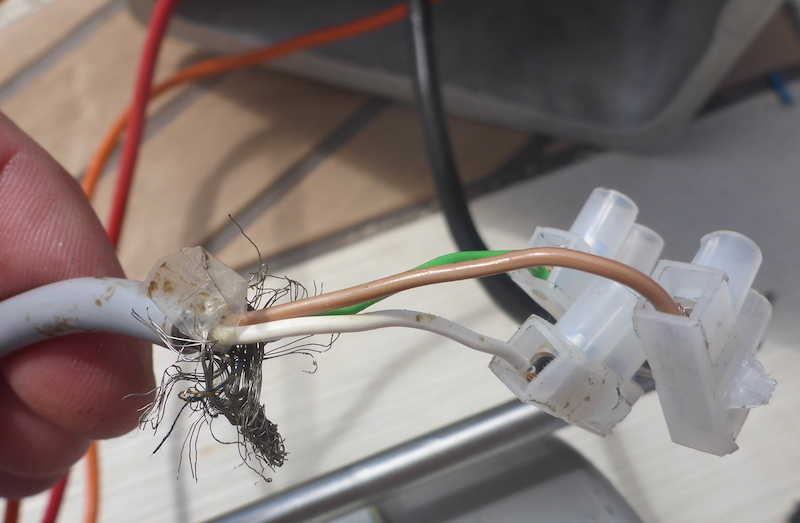

I was concerned about this metallic wrapping, still unsure of its use

Picture 258

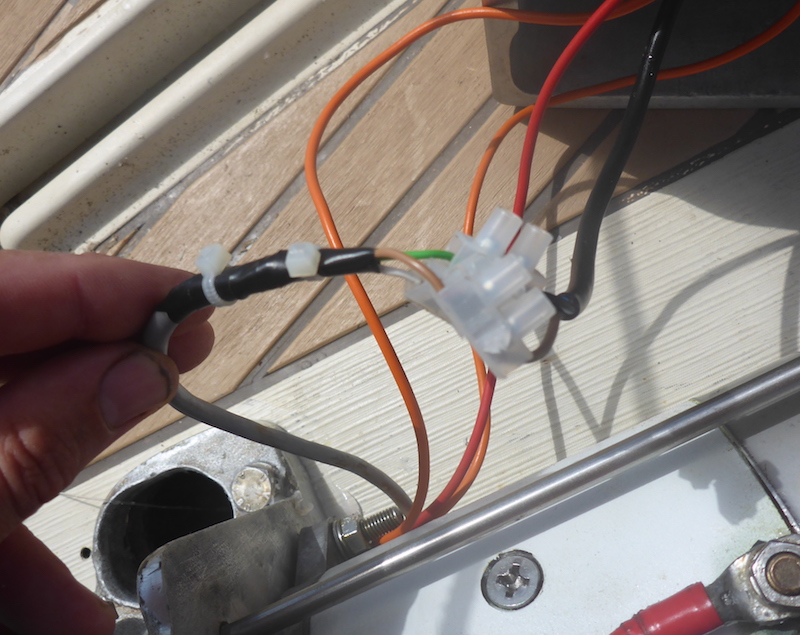

I used electric tape secure with plastic tie wrap

Next: Part 29 Adding Silicone, slide back Motor Cover, add Oil
