Lofrans Tigres Windlass Overhaul Part 27: 6 Pictures from 248 to 253 Reconnecting Electrical wires to Switches

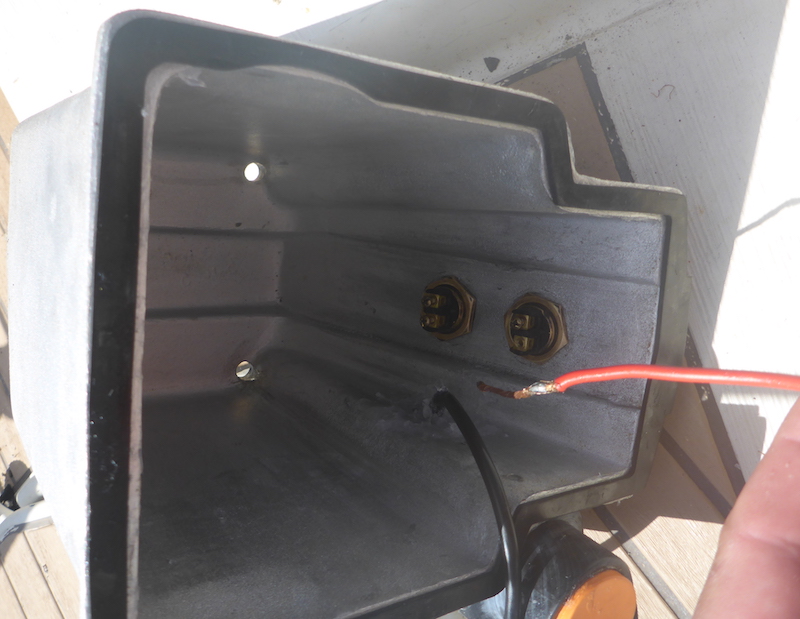

Picture 248
Time to reconnect the wire, starting by the most difficult

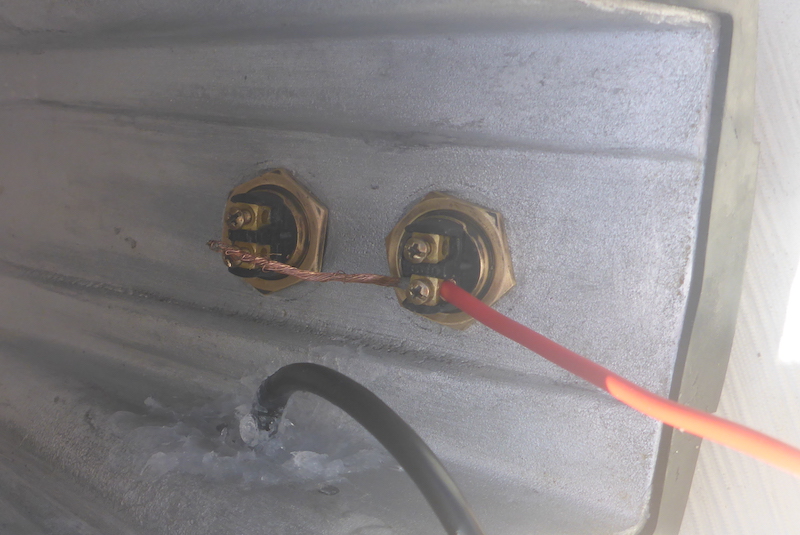

Picture 249
Going through the first switch

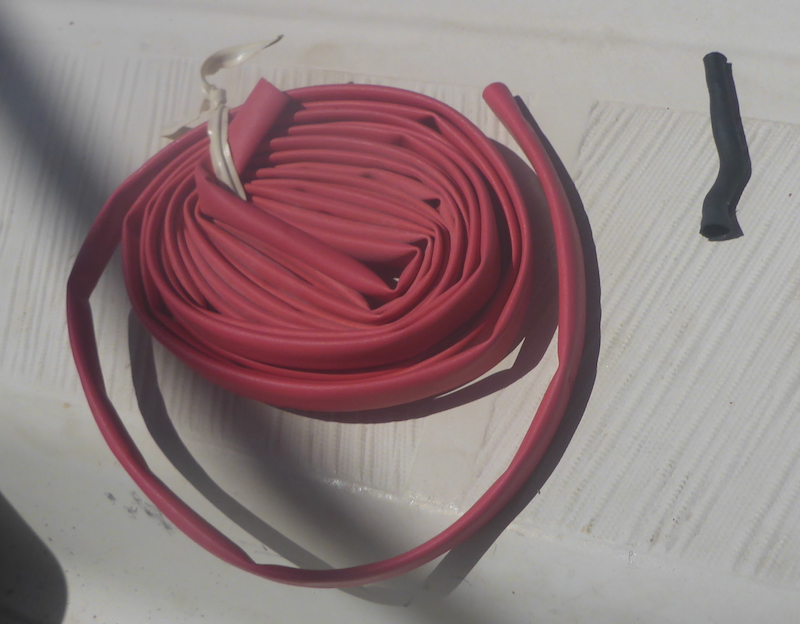

Picture 250
Since the original cover was too hard, I used heat shrink (which I did not heat) to put over

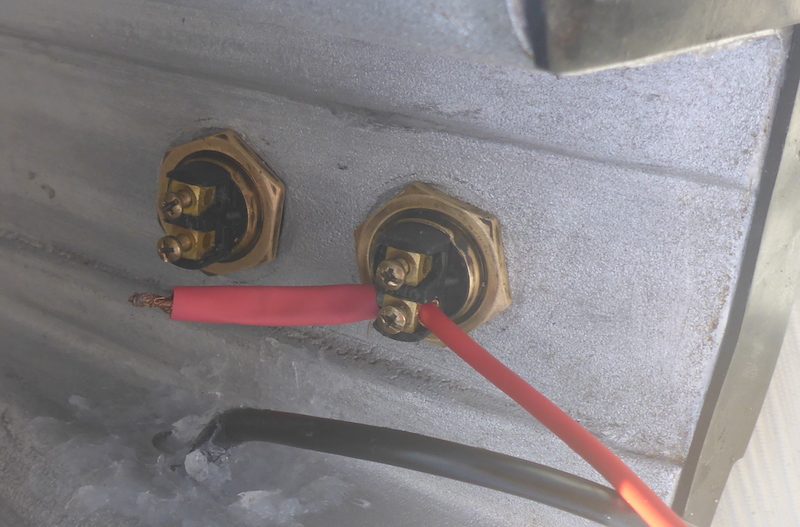

Picture 251
Put over the wire

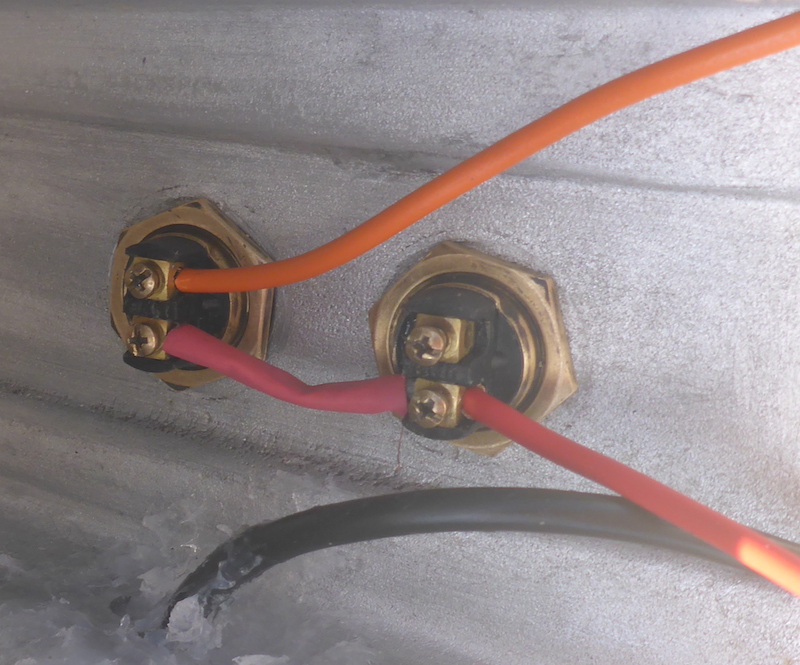

Picture 252
Then connect to the further switch
then connect the the other wire

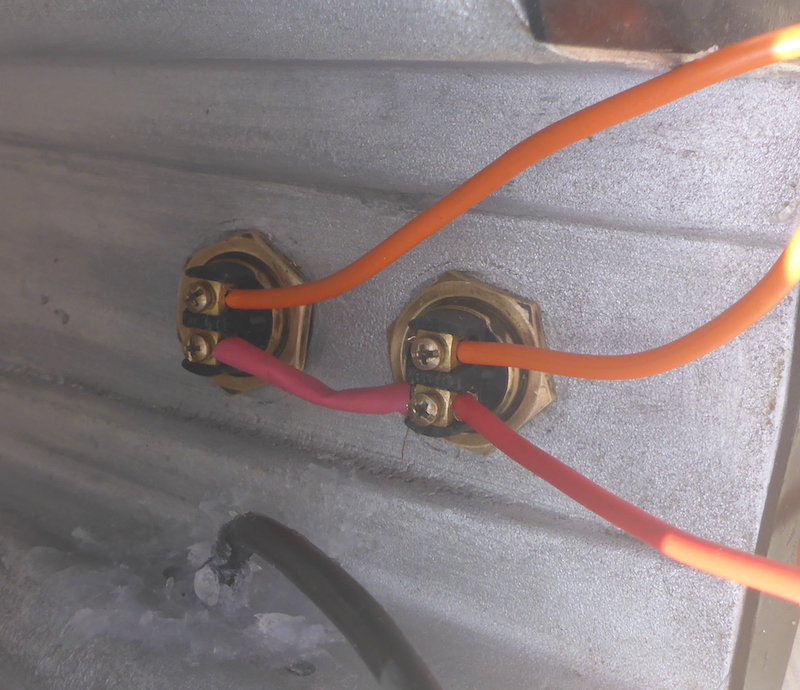

Picture 253
then the last wire

Next: Part 28 Reconnecting electric wires of the Chain Counter "Eye" / Sensor
