Lofrans Tigres Windlass Overhaul Part 13: 8 Pictures from 100 to 107 Removing the Switches on the windlass and cleaning

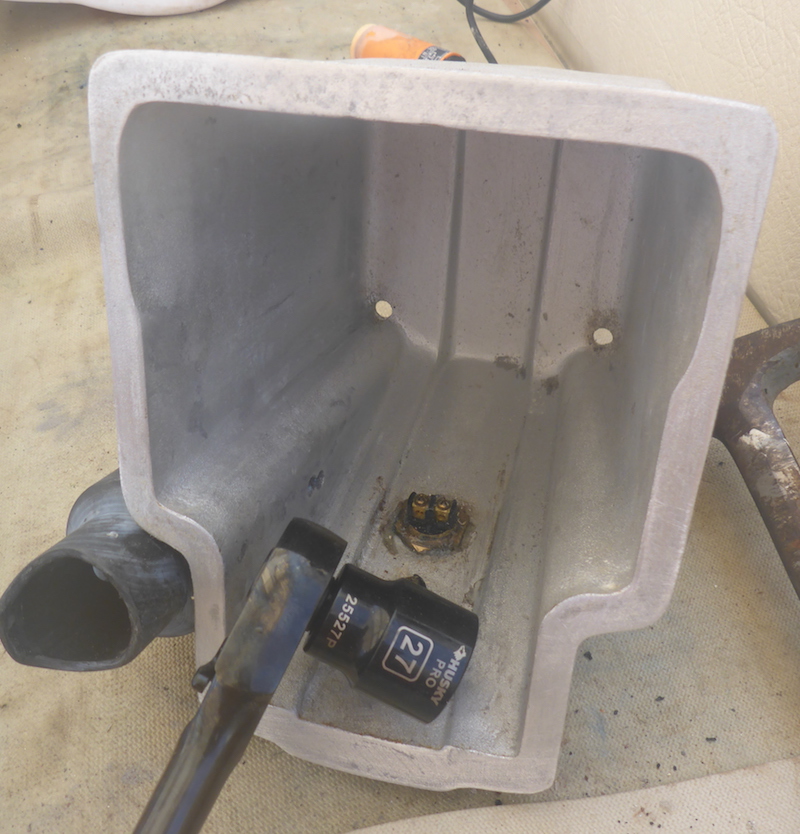

Picture 100
Removing the buttons on the windlass

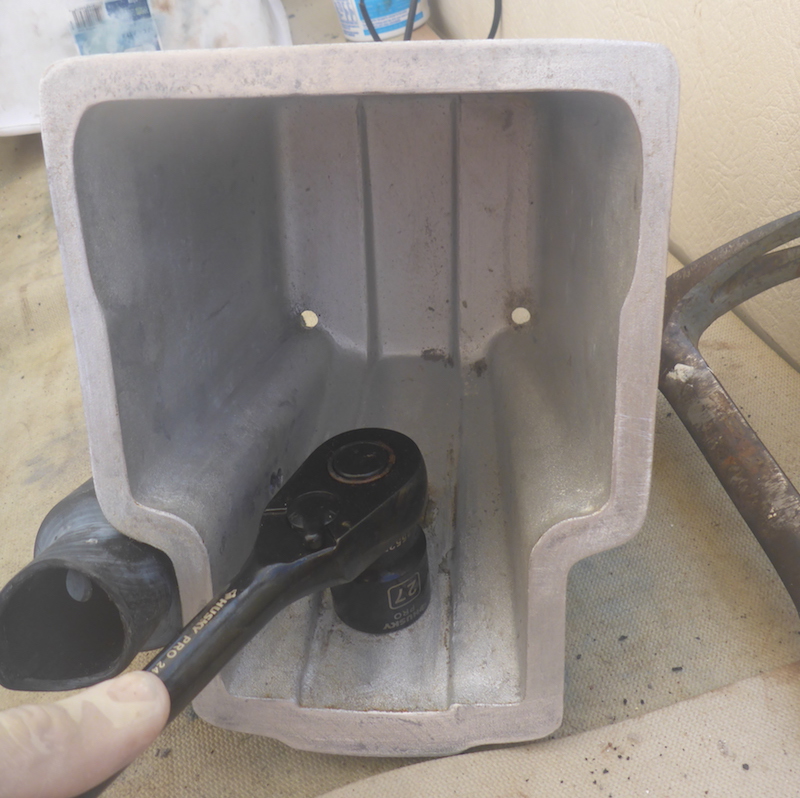

Picture 101
using 27 mm socket

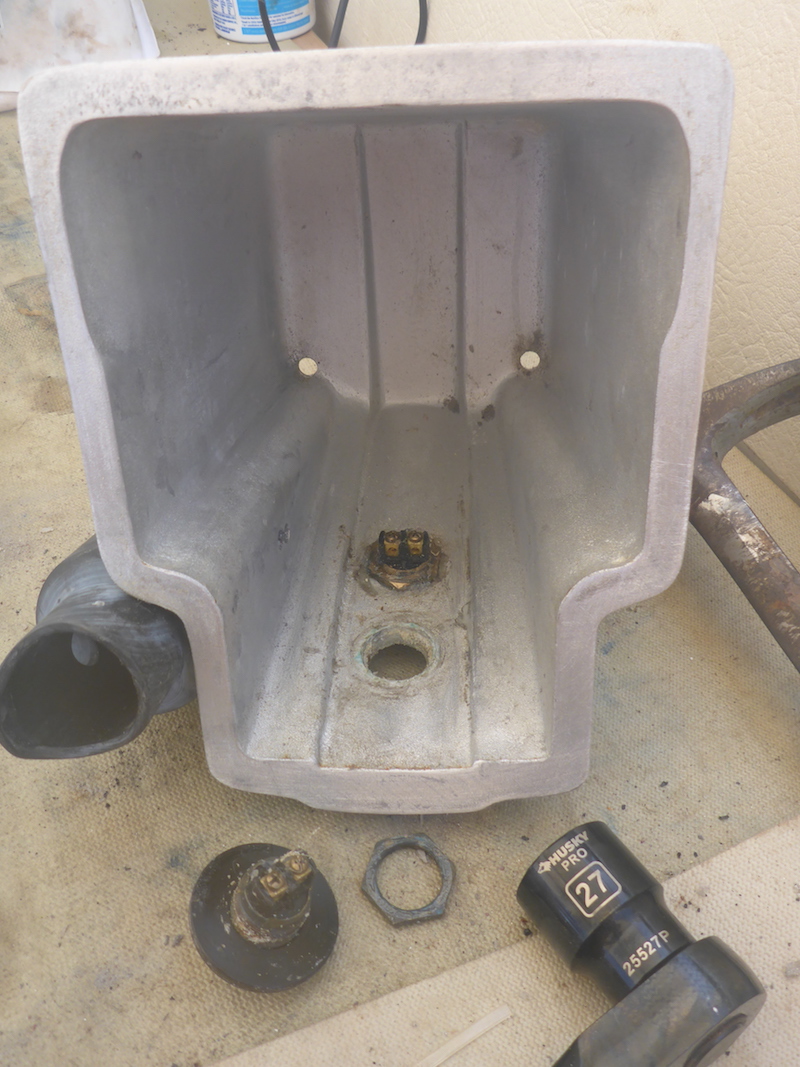

Picture 102
Holding ring removed, was also lots of silicone

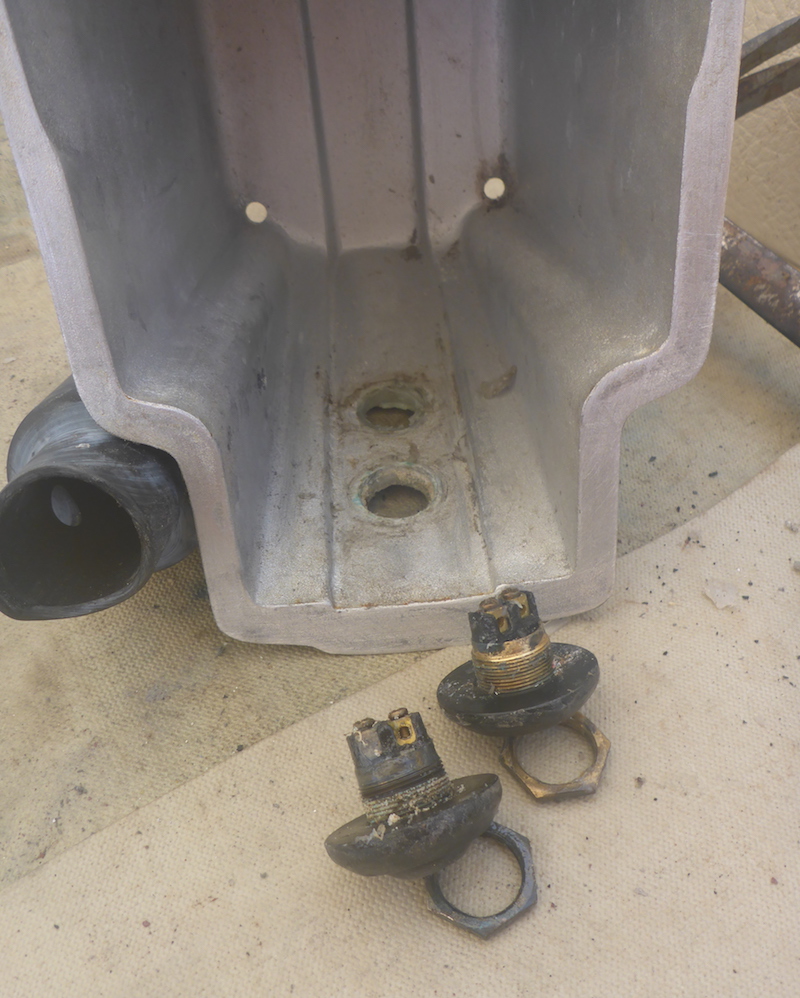

Picture 103
Both switches aout

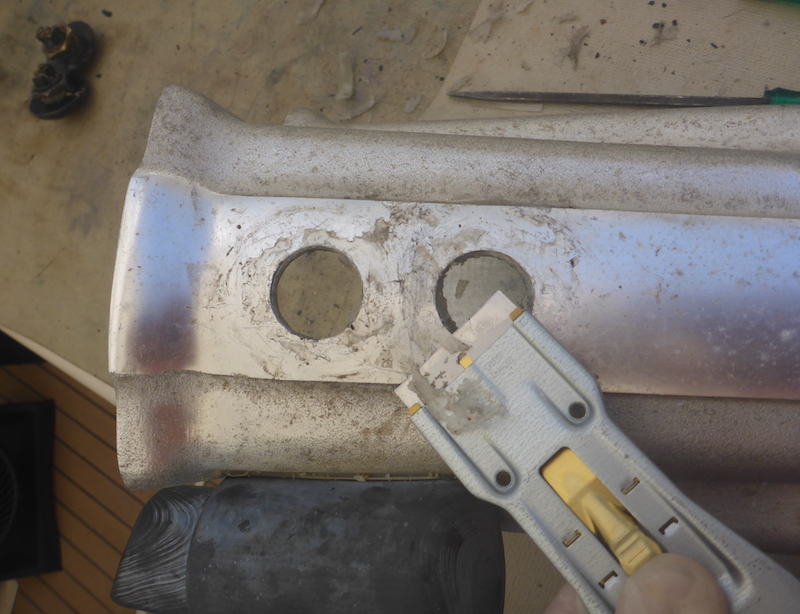

Picture 104
Starting cleaning, removing the silicone

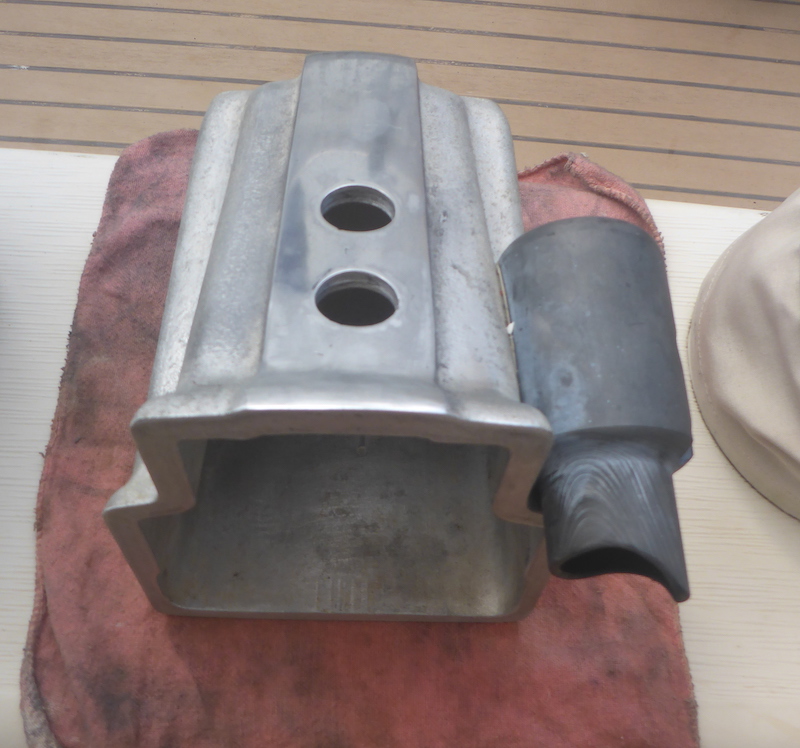

Picture 105
I might have gone a little too much on the top...

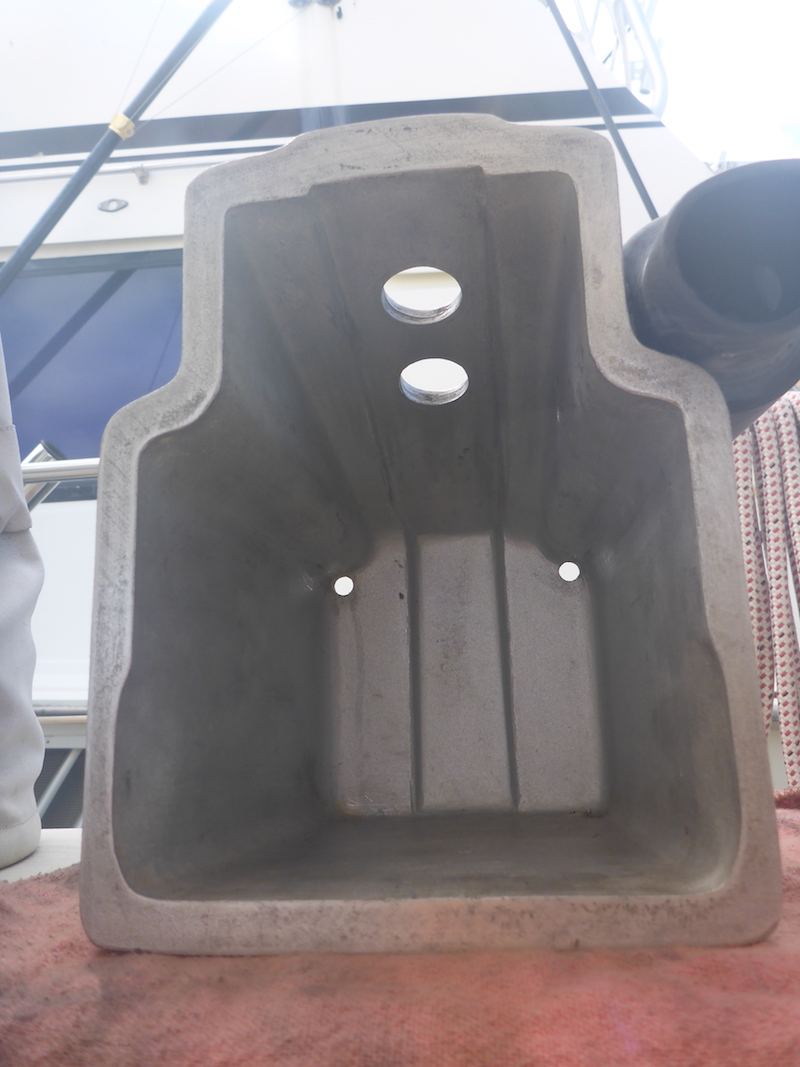

Picture 106
Clean inside

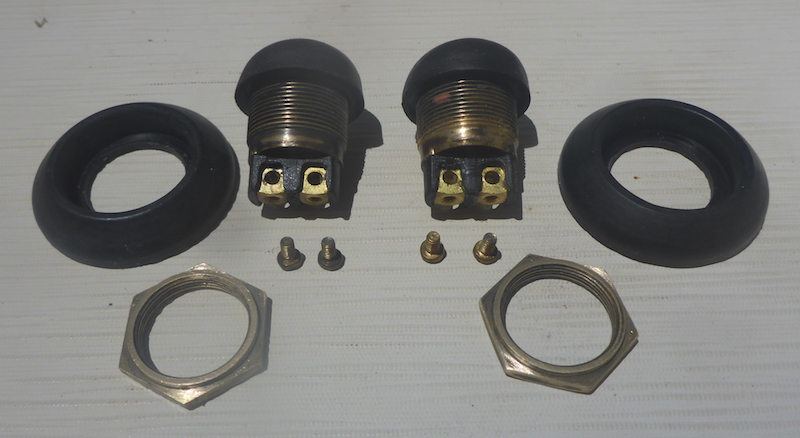

Picture 107
Clean Switches

Next: Part 14 Cleaning of the housing, Cover, Deck, attach Anchor Chain to fishing line
