Amel Super Maramu 2000

Lofrans Tigres Windlass Overhaul Part 12: 6 Pictures from 95 to 100 Removing the Chain Counter "Eye" or sensor

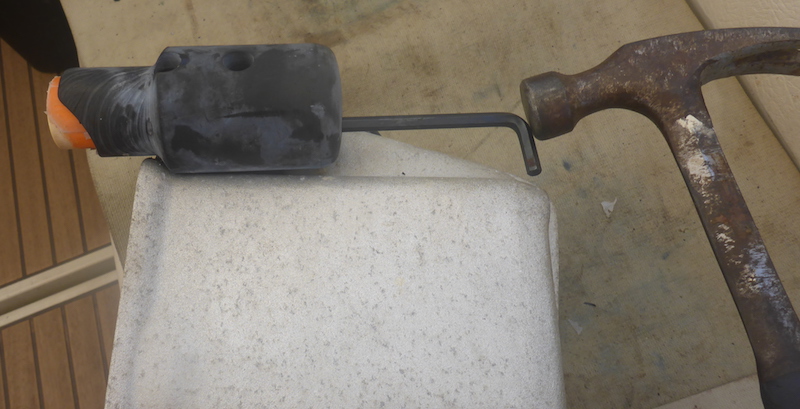

Picture 95
I had no clue how the "Eye" of the chain counter was attached
Thanks to Bill on SM2K #387 BeBe who sent me pictures
It is simply hold with silicone, so gently pushing was enough

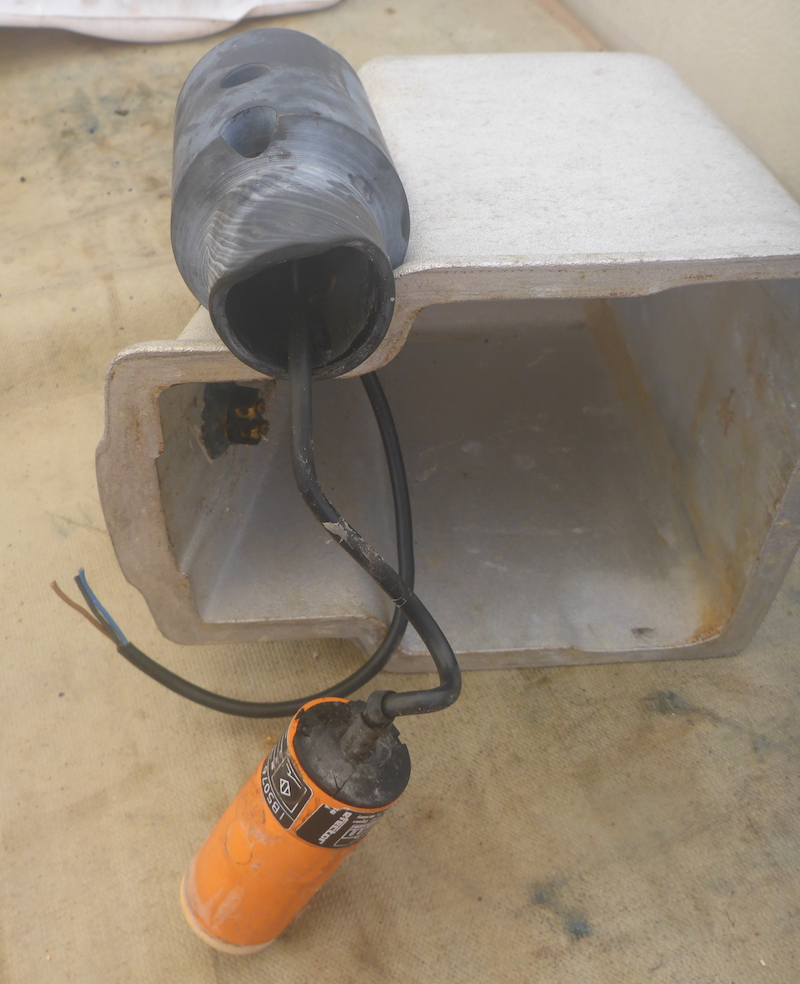

Picture 96
Eye of chain counter out

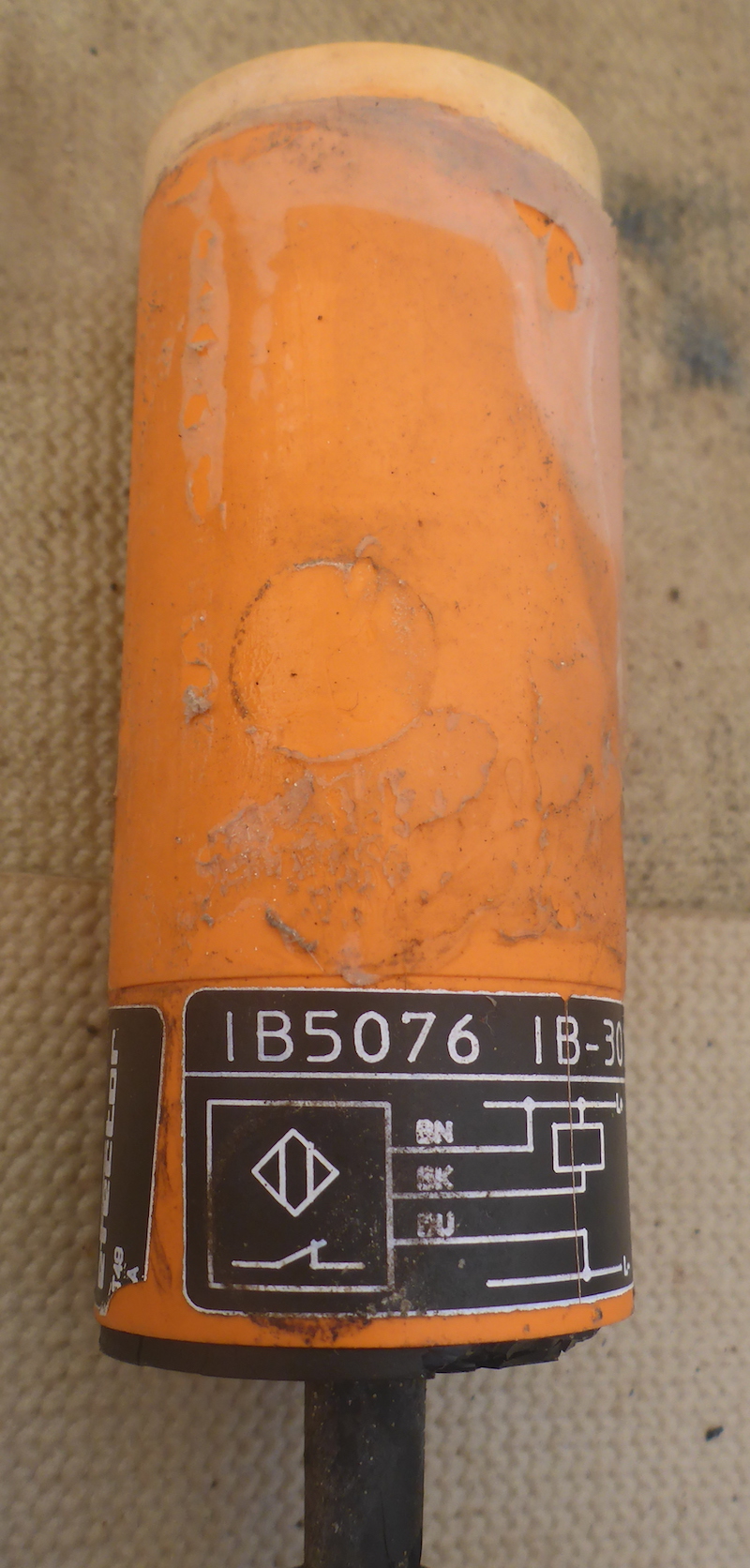

Picture 97
For reference: "Eye" of the Chain Counter

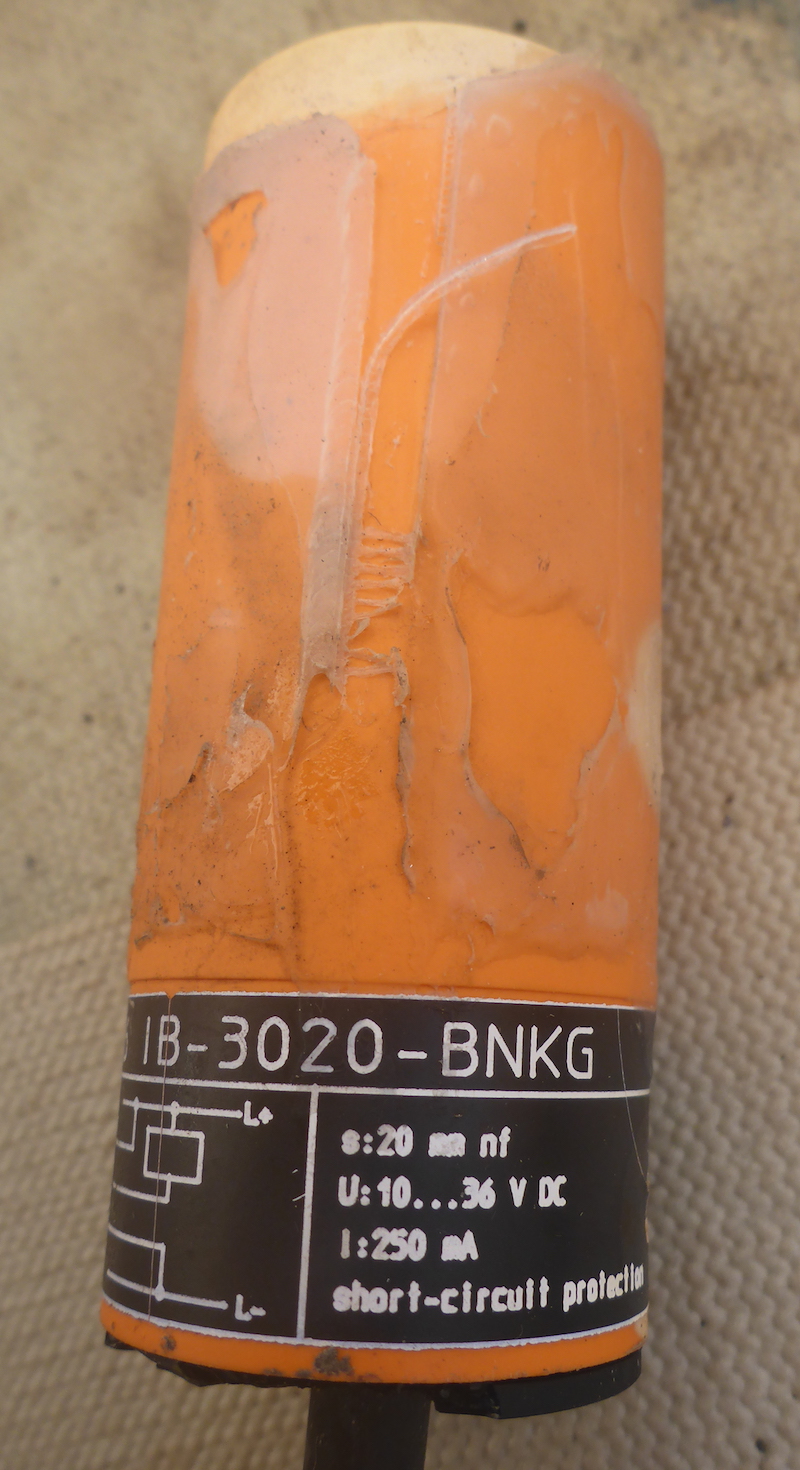

Picture 98
More reference: "Eye" of the Chain Counter

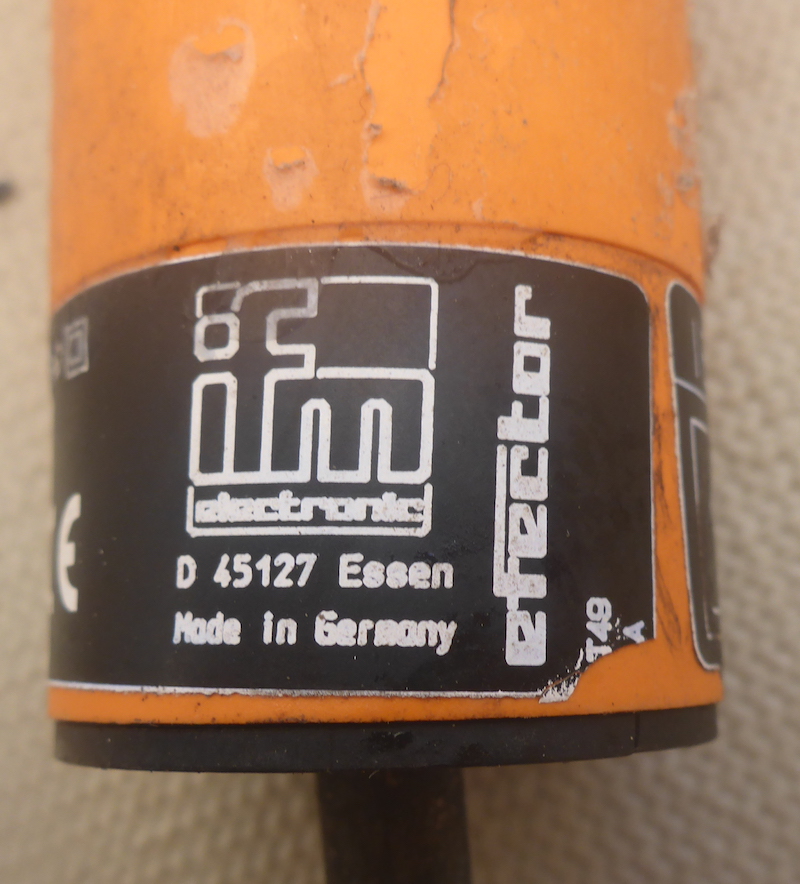

Picture 99
Manufacturer: "Eye" of the Chain Counter

Next: Part 13 Removing the Switches on the windlass and cleaning
