Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

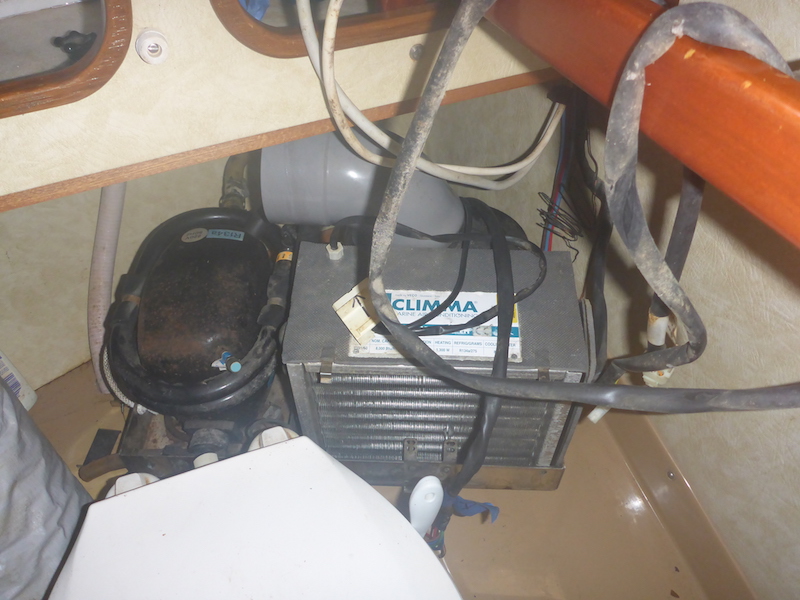

Removing the thermostats and holding brackets of the Aft Climma Marine Compact 9

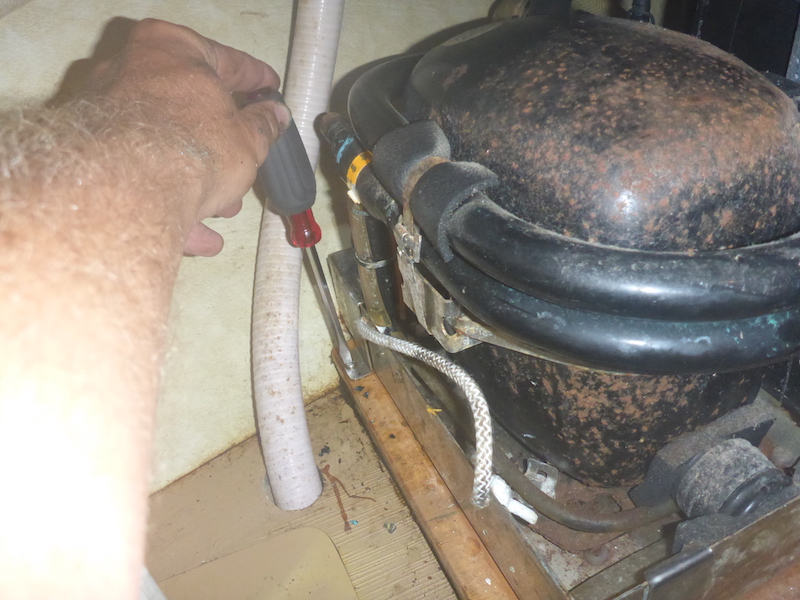

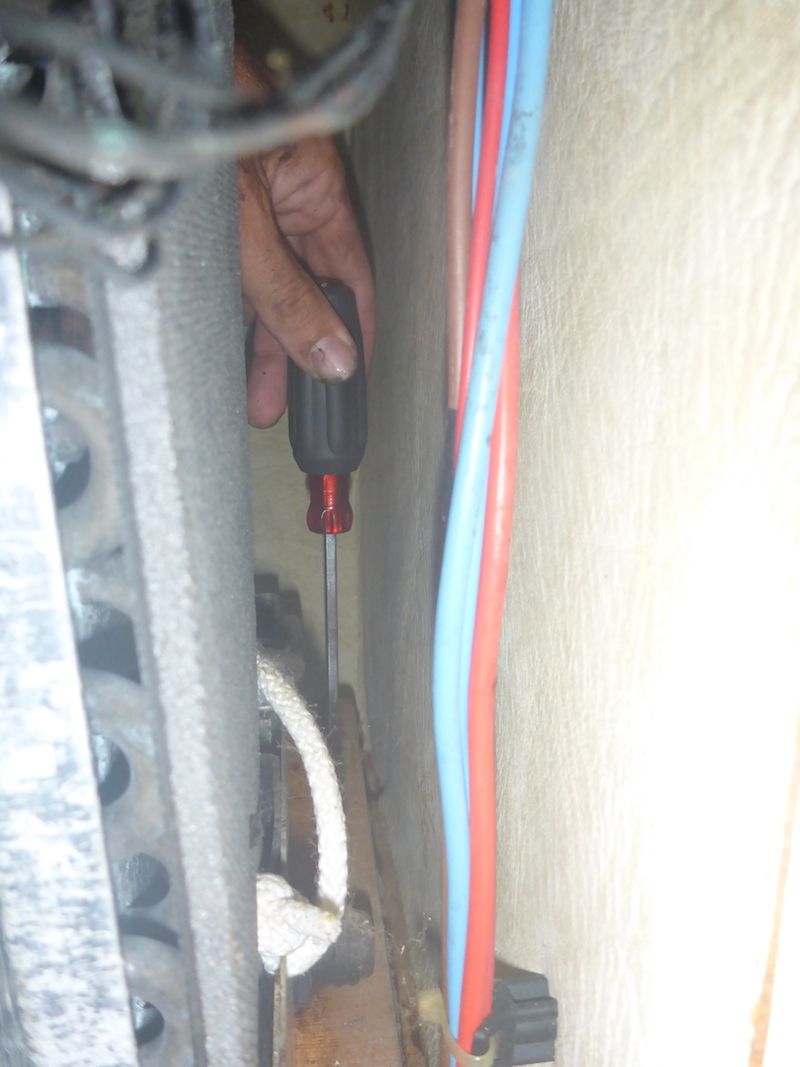

Now unscrewing the attach

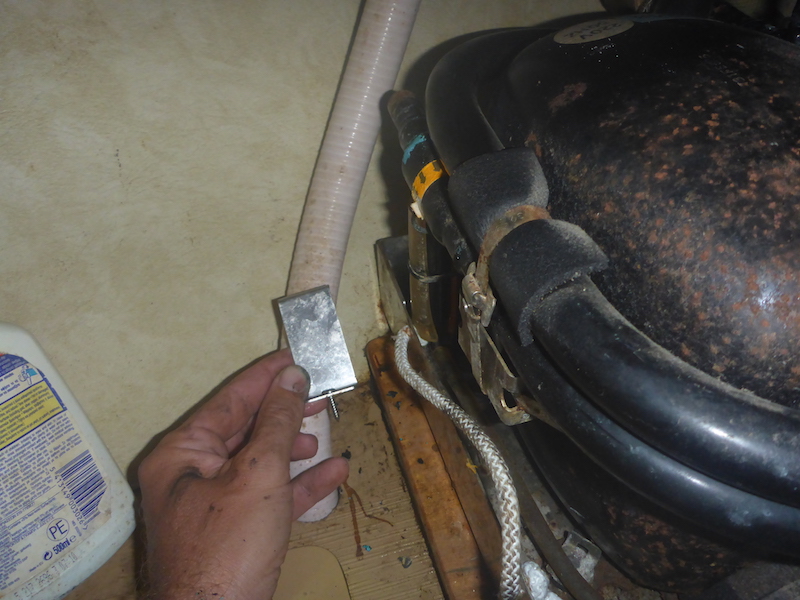

Close up of what is holding in place

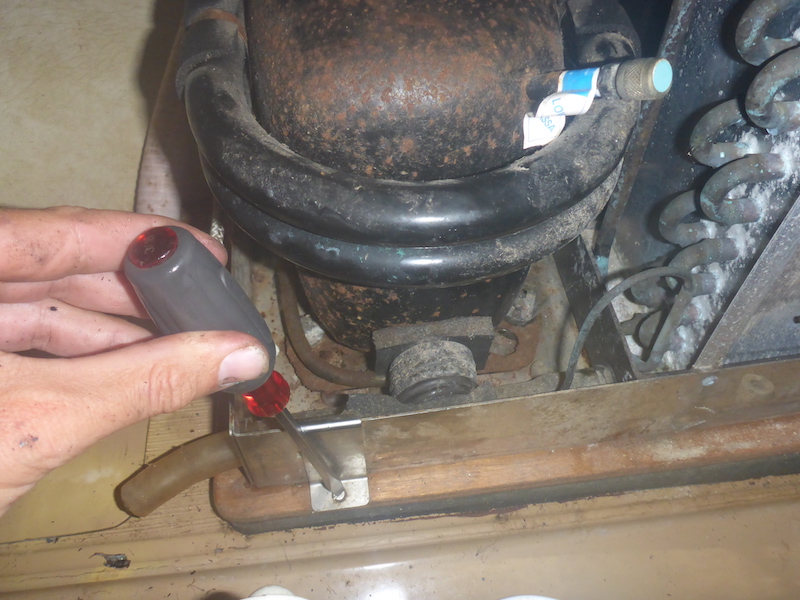

2nd one

3rd one

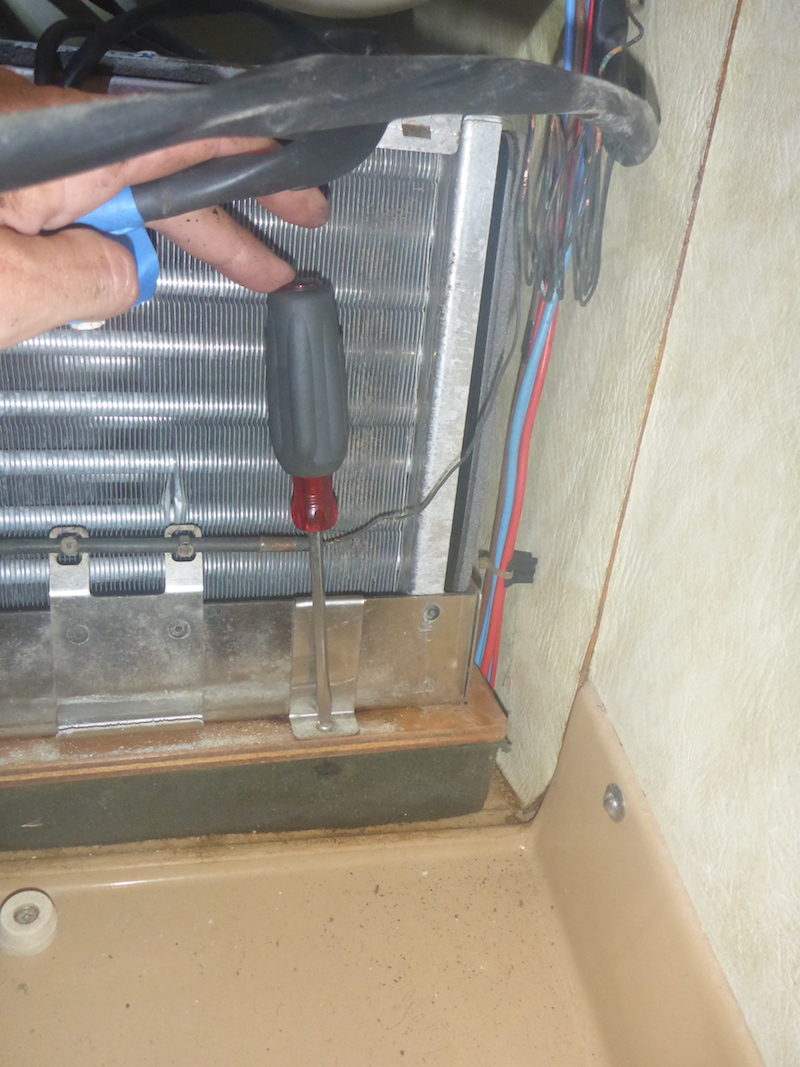

and 4th one on the side

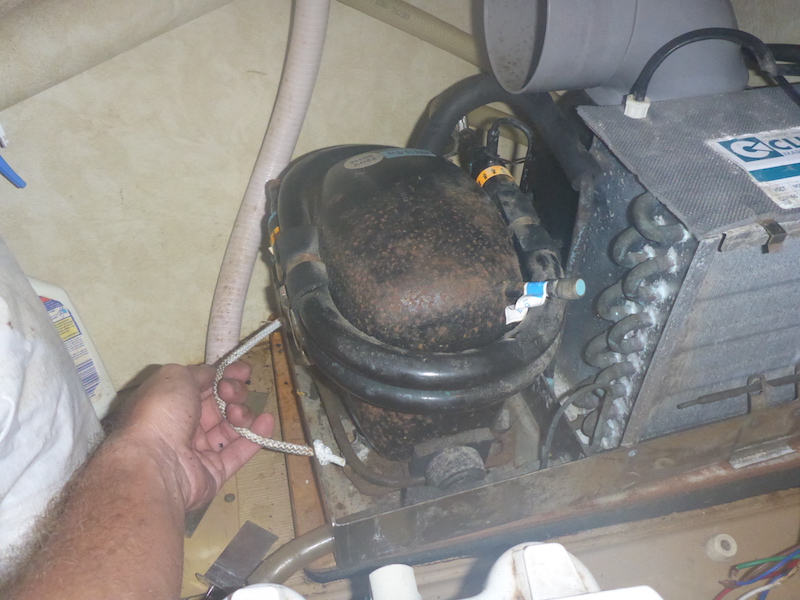

Now can use the handle to slide the unit

but before, let's not forget to remove the thermostat

sliding the unit

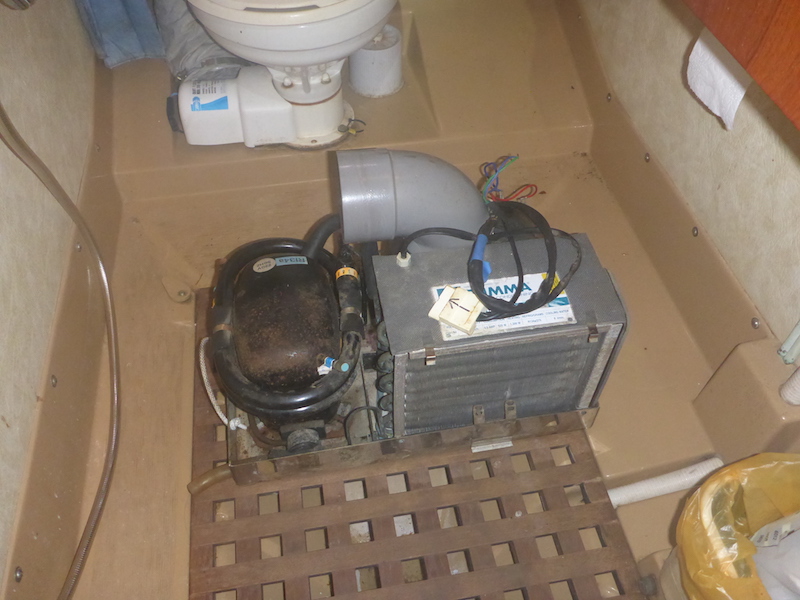

Now out

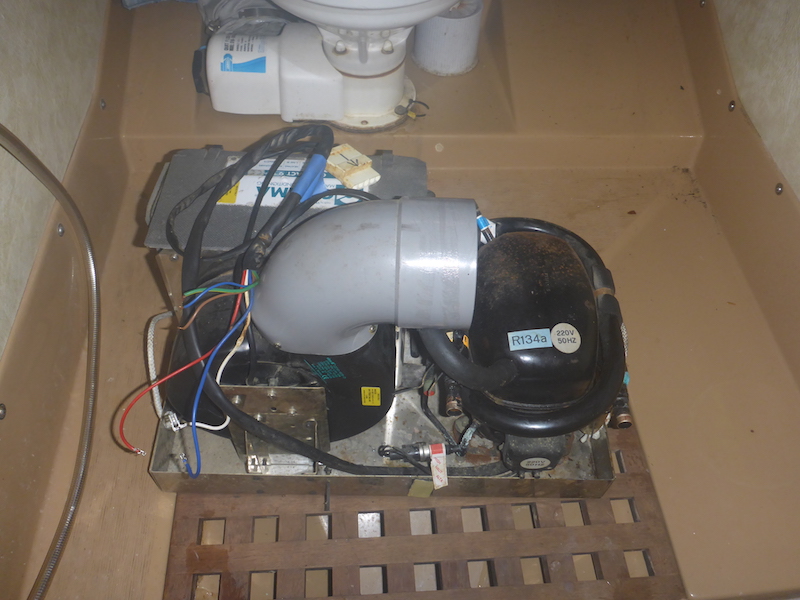

A look at the other side

Next: Part 7 Removing the thermostats control
