Amel Super Maramu 2000

Air Conditioning Climma Marine Compact 9

Reconnecting the hoses and Thermostat of the forward Climma Marine Compact 9

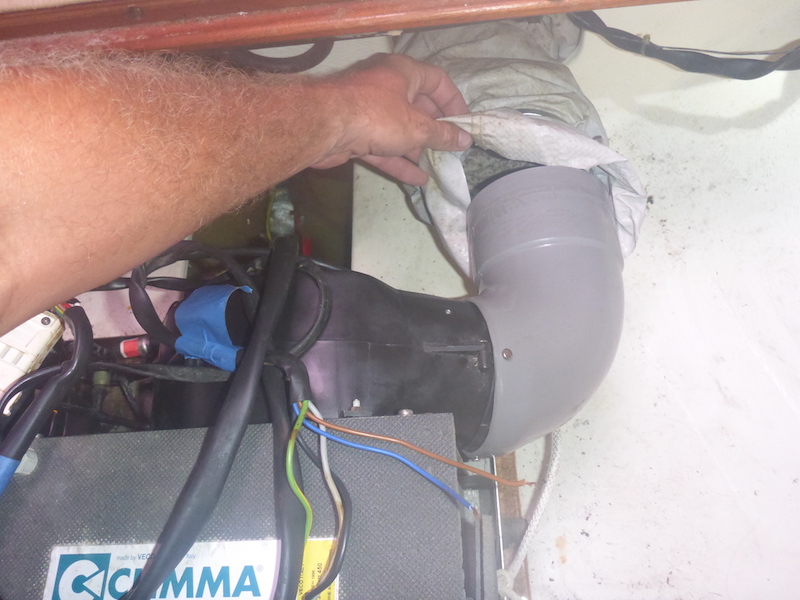

I will not reconnect the ducking as this unit is non fonctional

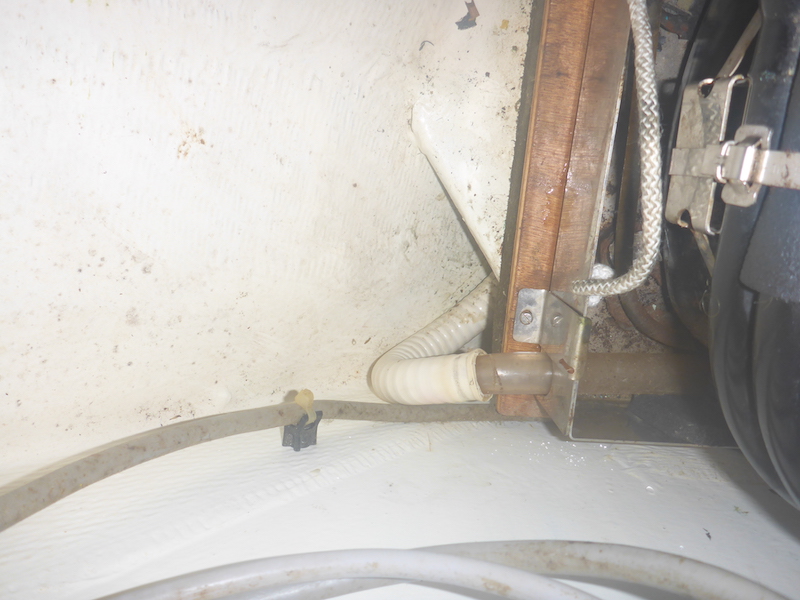

connect back the hose

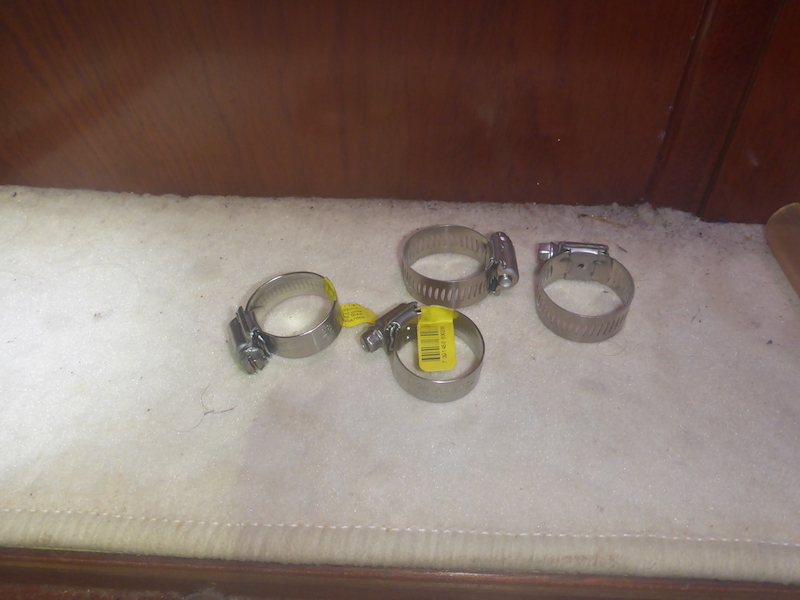

Putting new clamp

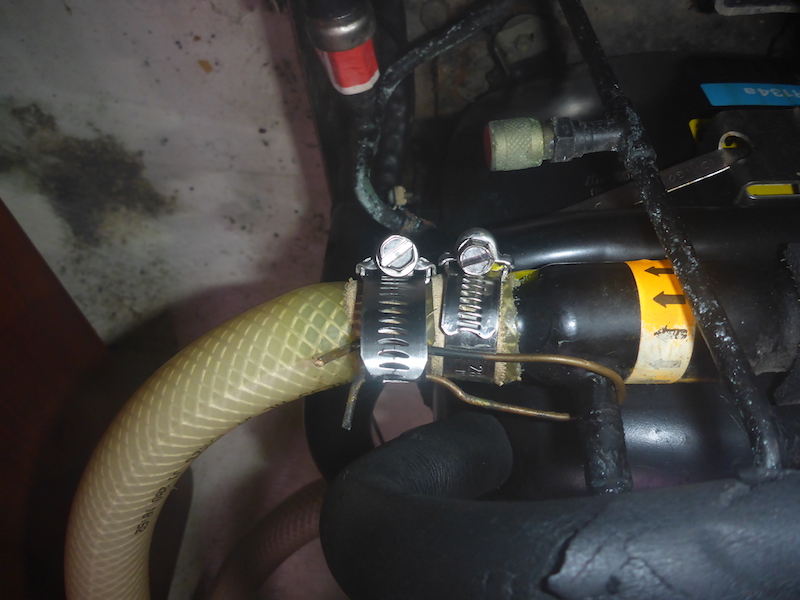

Close up of the wire that goes under the 2nd clamp as a double security

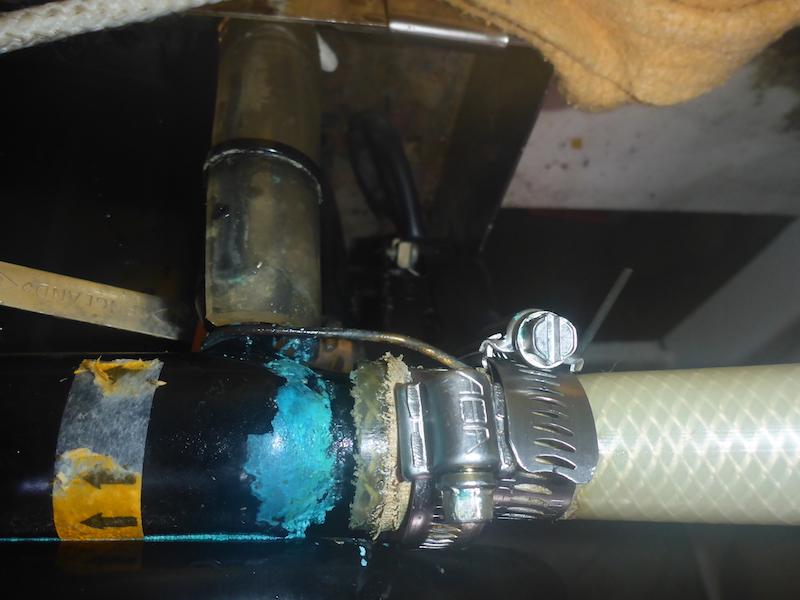

showing how it is bent

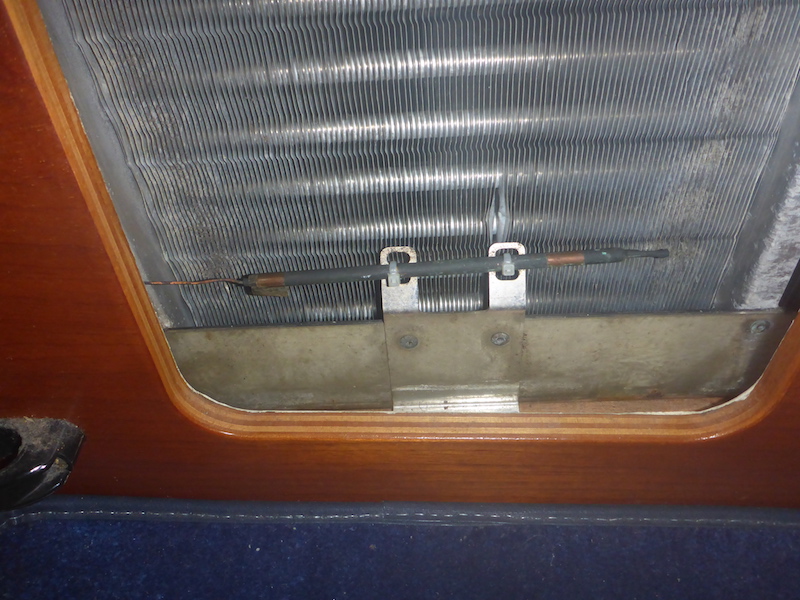

Putting back the thermostat (again this is the non-working unit)

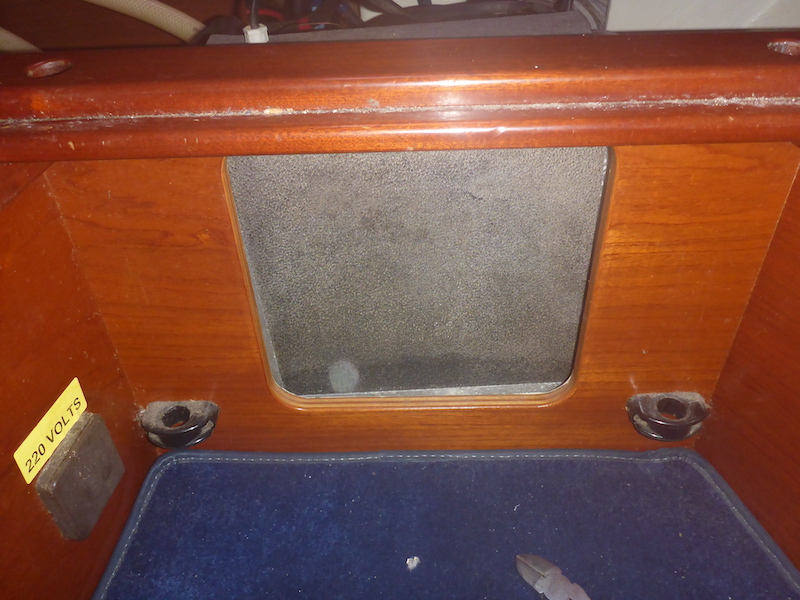

Putting back the screen

The the additional filter I had

Next: Part 32 Quick reconnection of the harnesses and Capacitors
