Amel Super Maramu 2000

Cleaning of Eno Stove Oven The pictures were actually taken while re-assemblying the Eno Stove Oven Here is the illustration for the Removal of Eno Stove Oven

Let's start

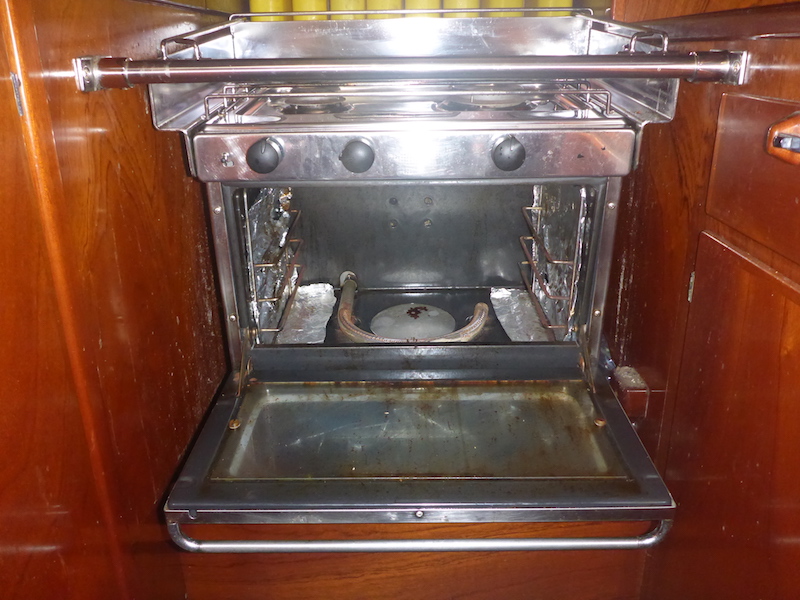

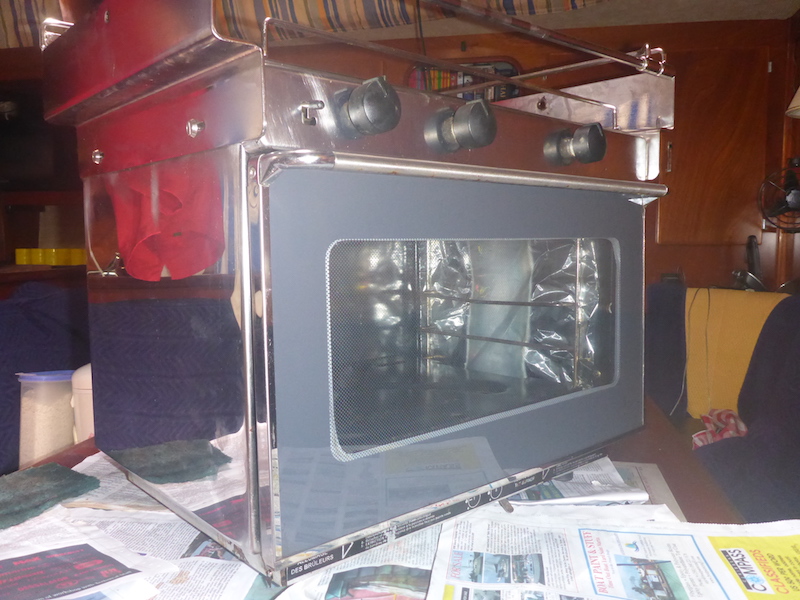

Clean the outside

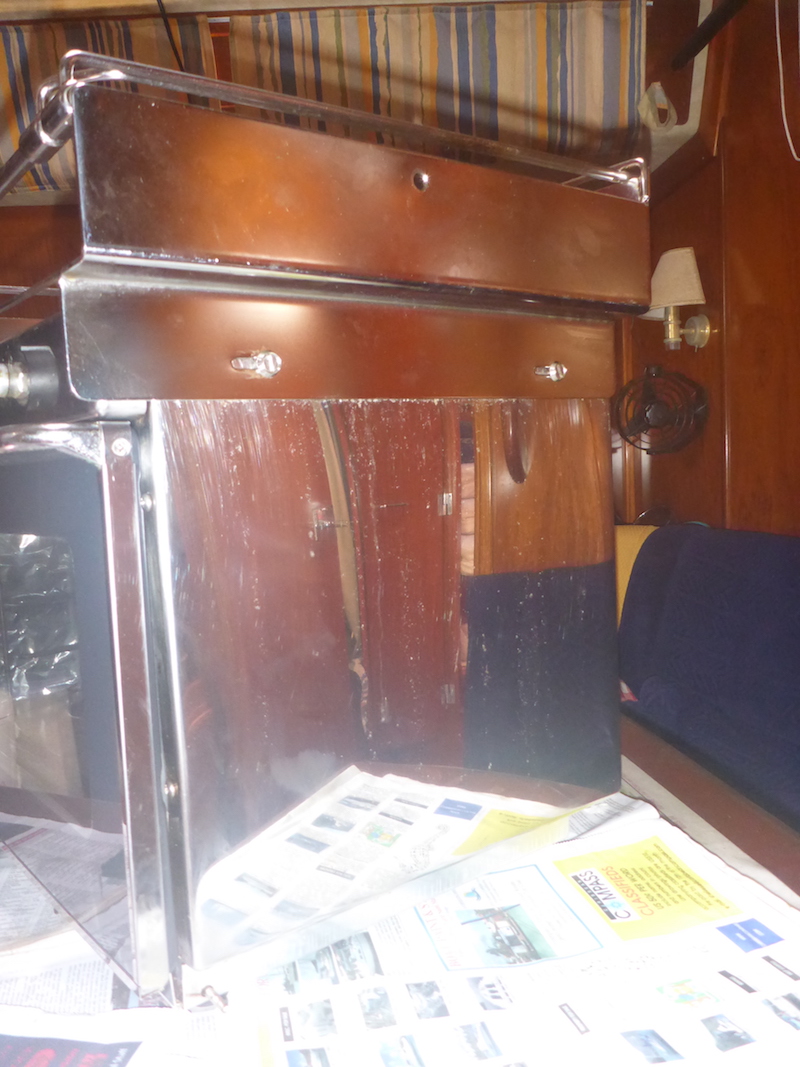

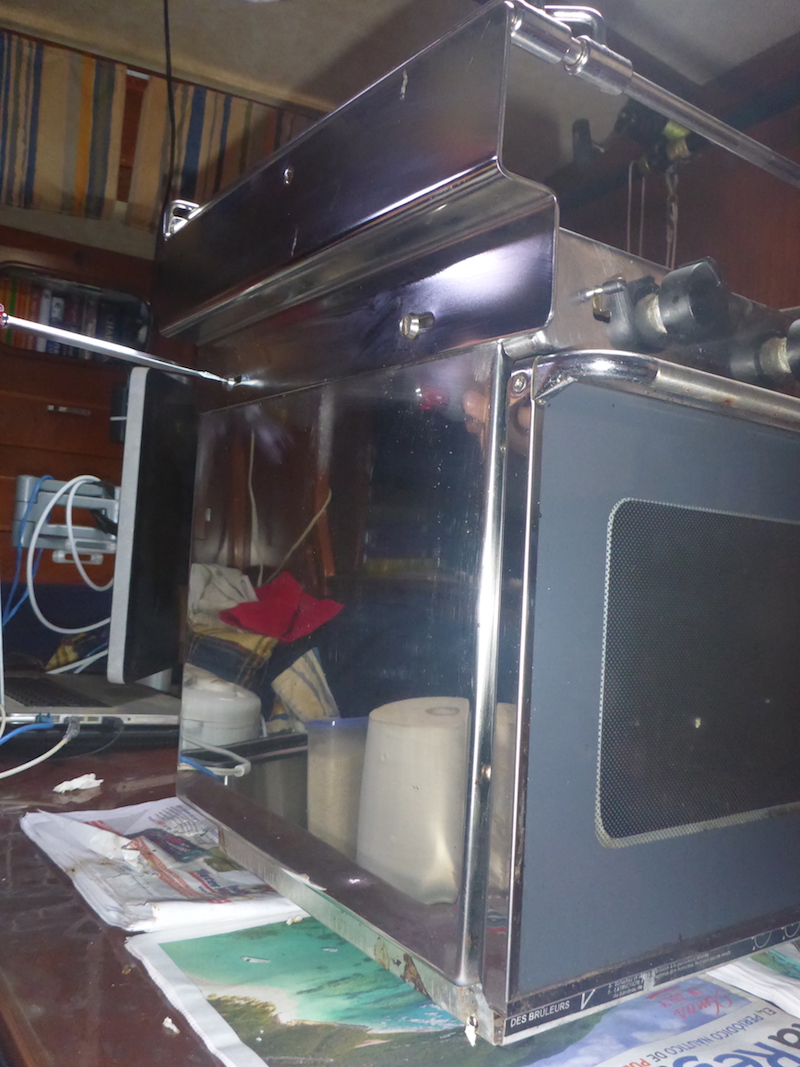

Clean the side

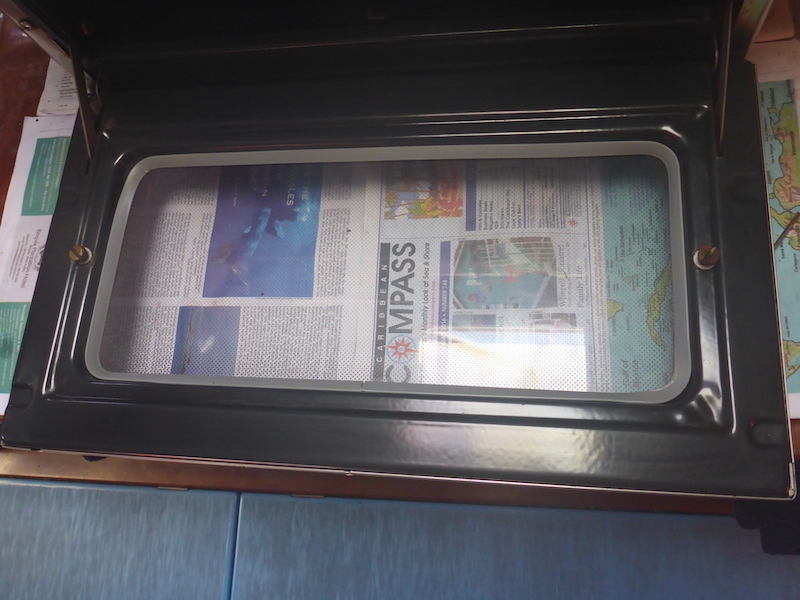

Cleaning the door, including removing the protective glass

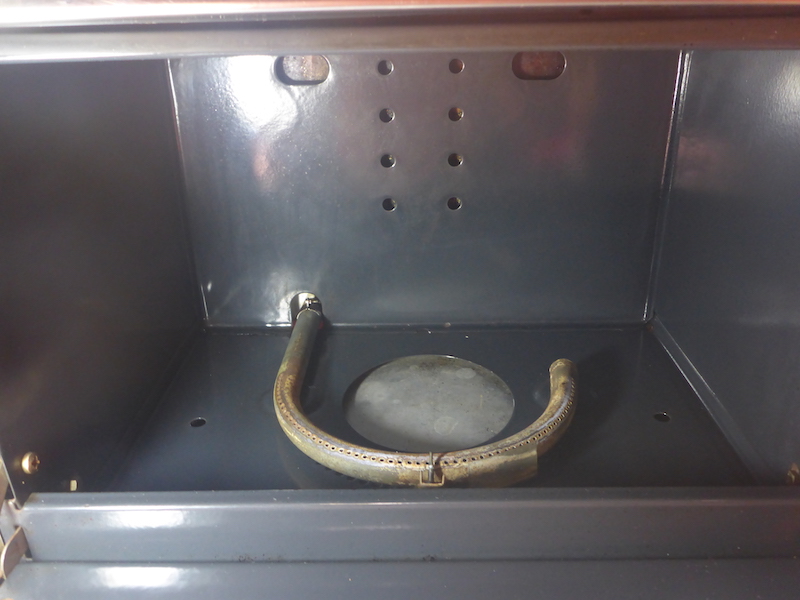

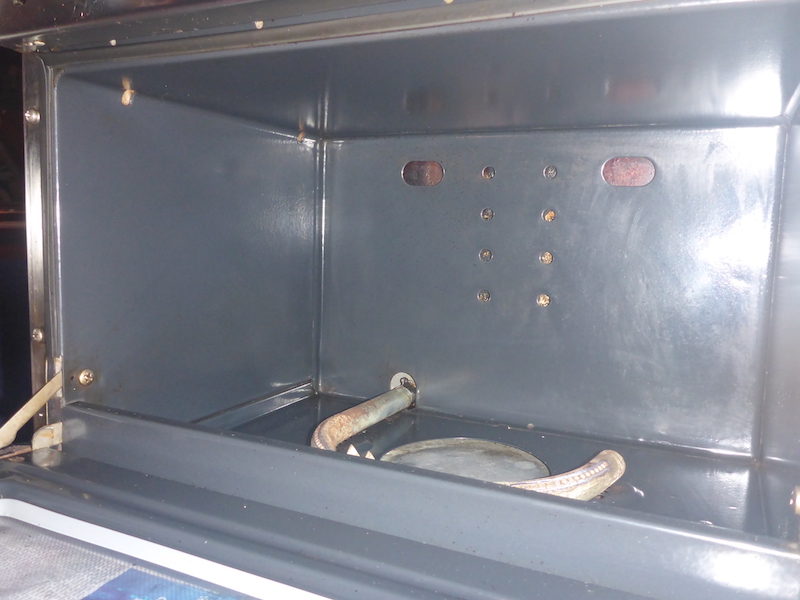

Clean the inside

Clean under the tray

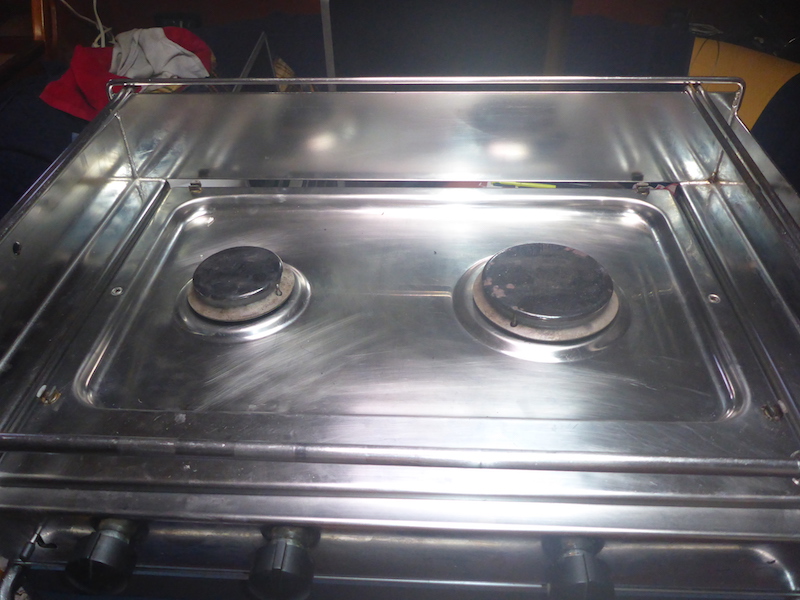

As well as side and top

Removing the top grill to clean

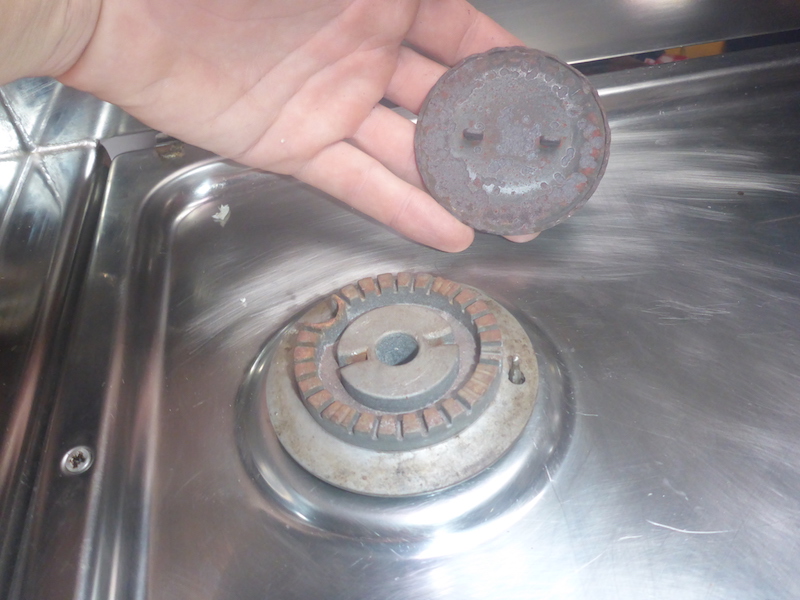

Not sure how they are call, but cleaning them

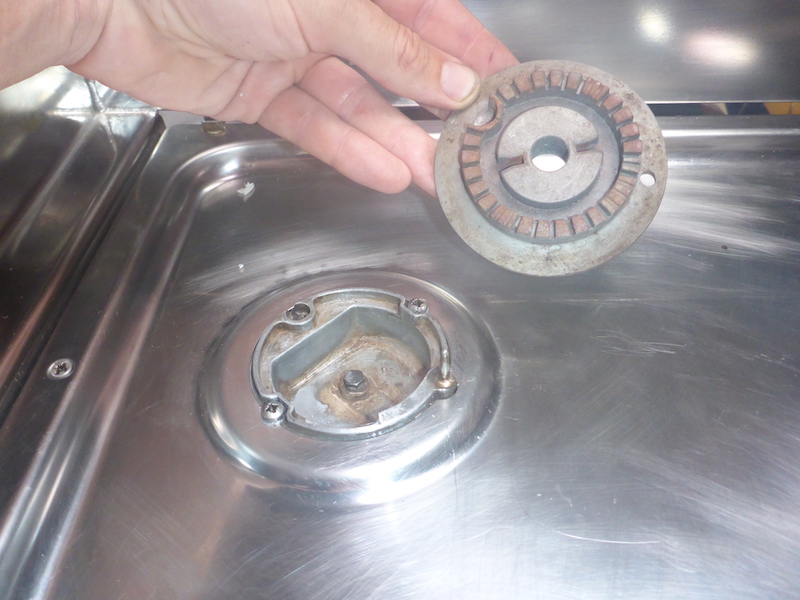

Also not sure of the name, but cleaning them

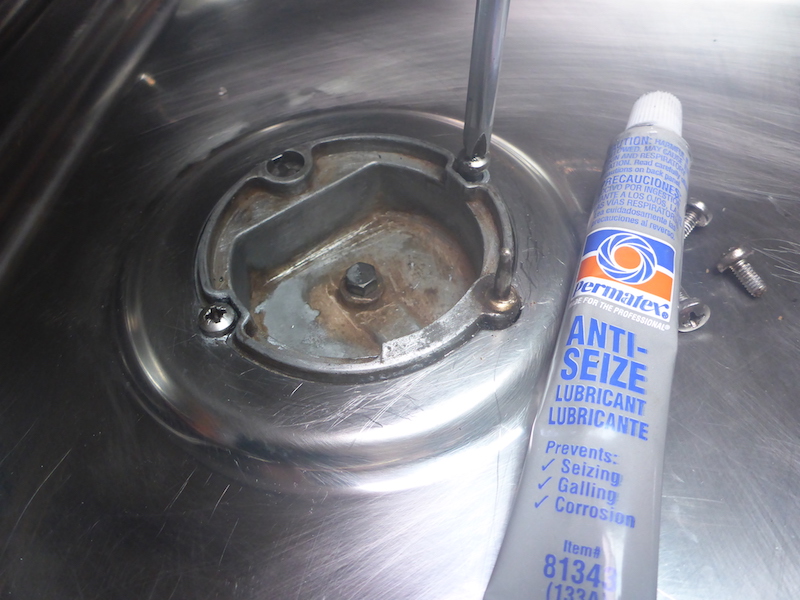

Removing the bolt (later on I will use an anti-seized)

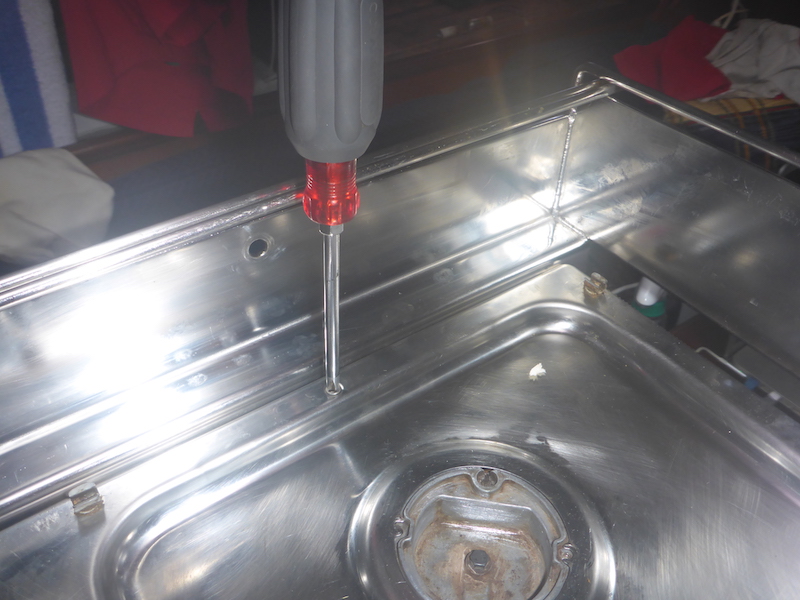

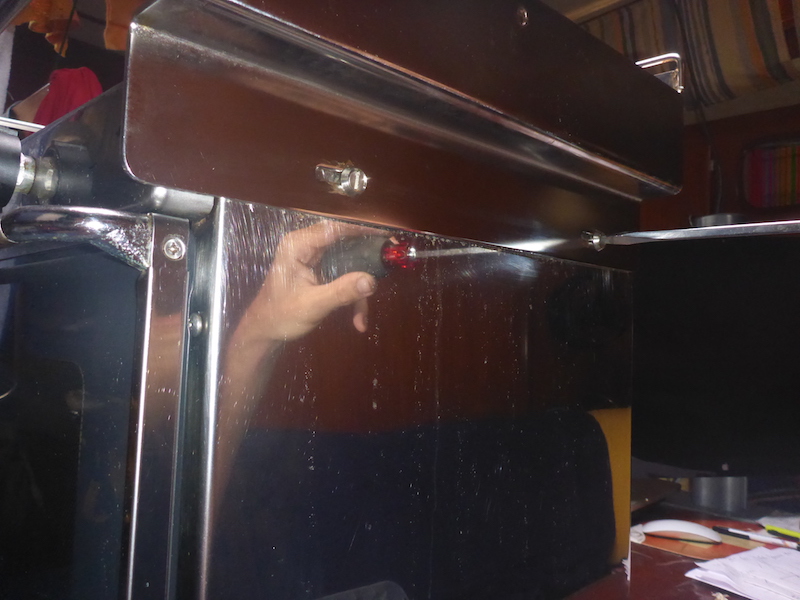

Removing the bolt on the side

Then the front

Removing the panel to clean it
BE EXTREMELY CAREFUL THIS IS VERY SHARP
it just slash my finger like butter

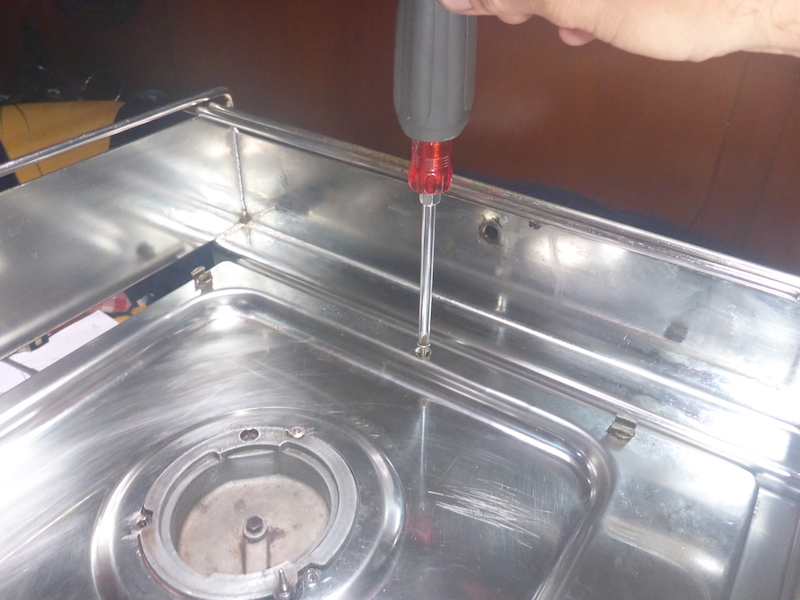

Removing the bolt on the left side

Now removing the bolt on the right side

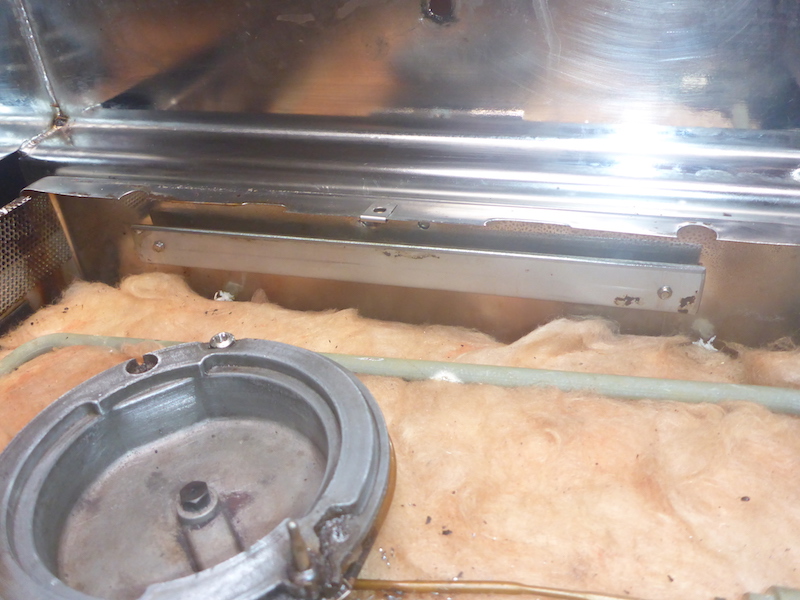

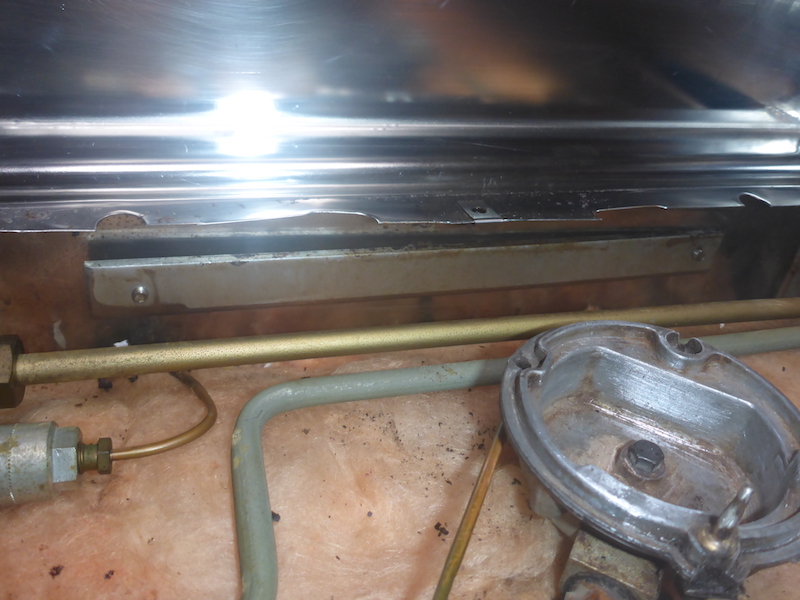

These is the bracket holding the bolt we just removed.

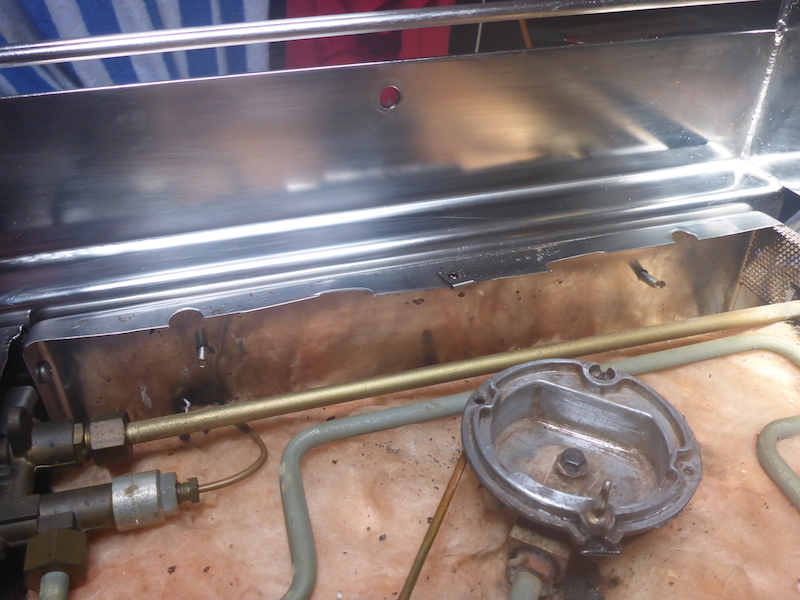

BE VERY CAREFUL THE PART ON TOP OF IT IS EXTREMELY SHARP

Left side bracket

These "brackets" are now removed

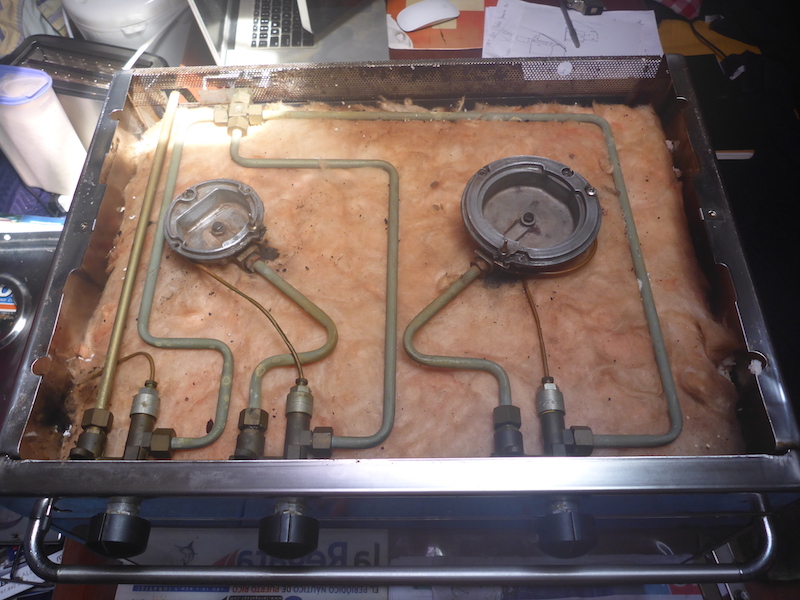

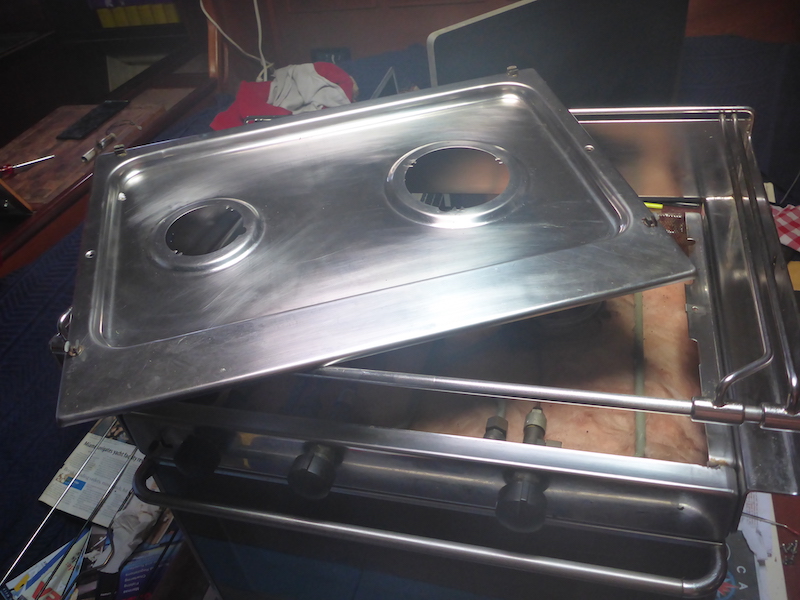

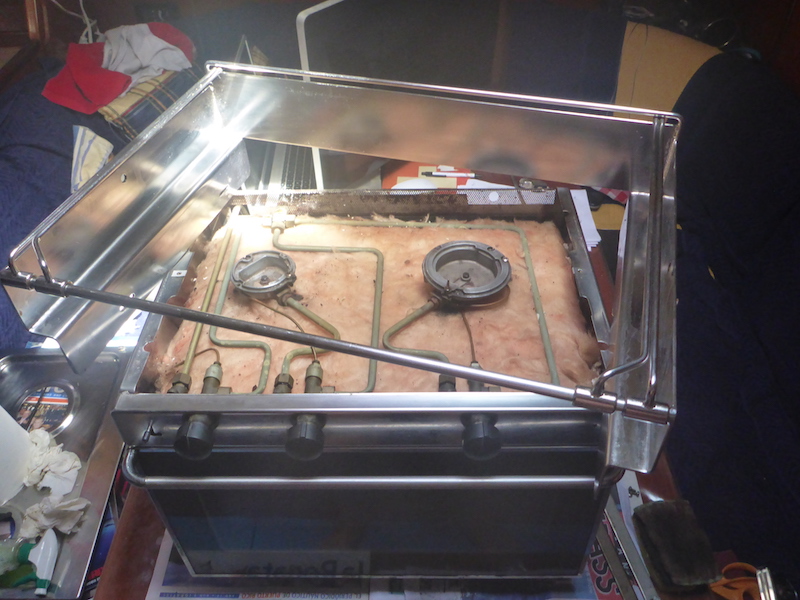

Can lift the top part for cleaning

BE VERY CAREFUL THE SURROUNDING METAL IS EXTREMELY SHARP

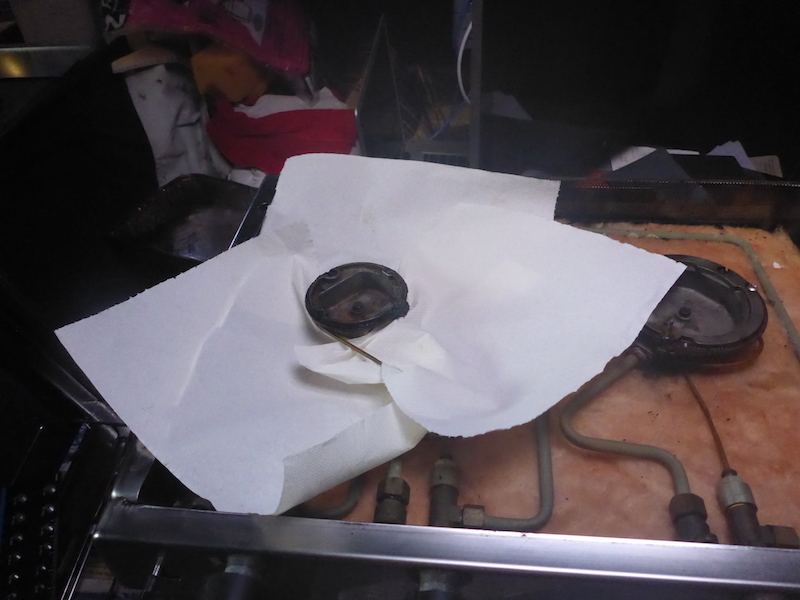

How I cleaned each burner

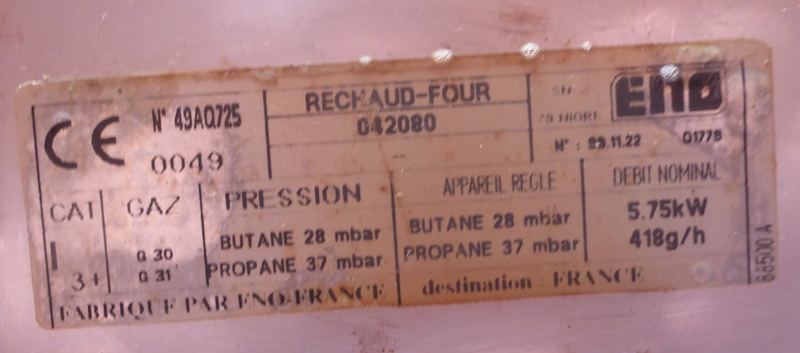

For reference

The re-assemblying is the opposite sequence of the previous pictures To ease the cleaning, I put Aluminum foil where possible. Here is the illustration for the Reinstallation of Eno Stove Oven

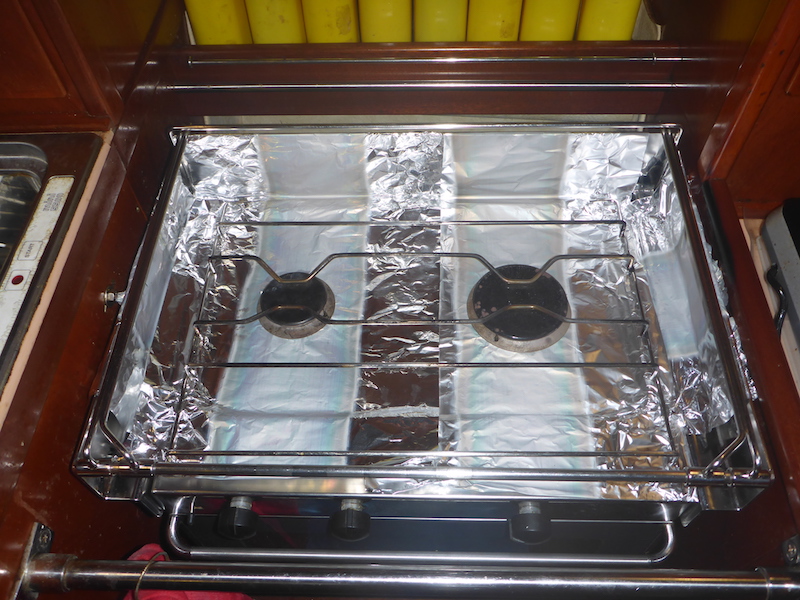

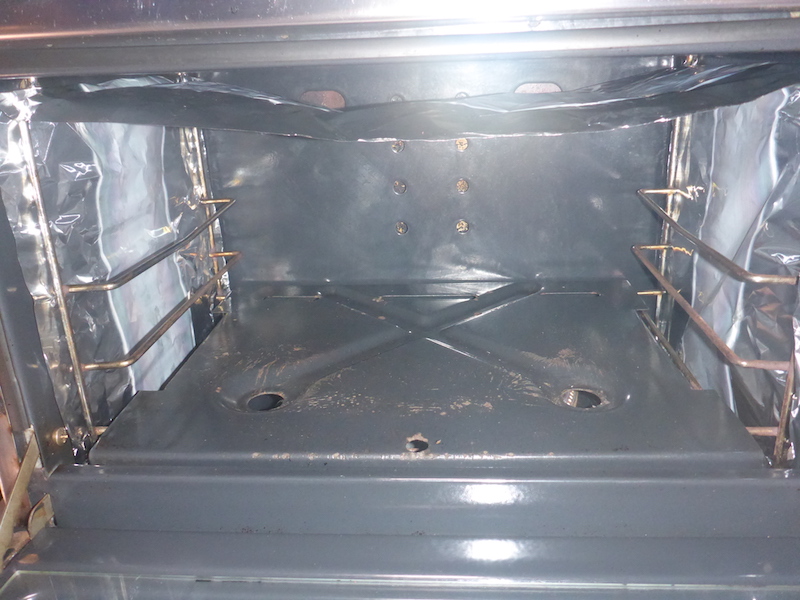

Adding Aluminum foil

Adding Aluminum foil
