Amel Super Maramu 2000

Lofrans Tigres Windlass

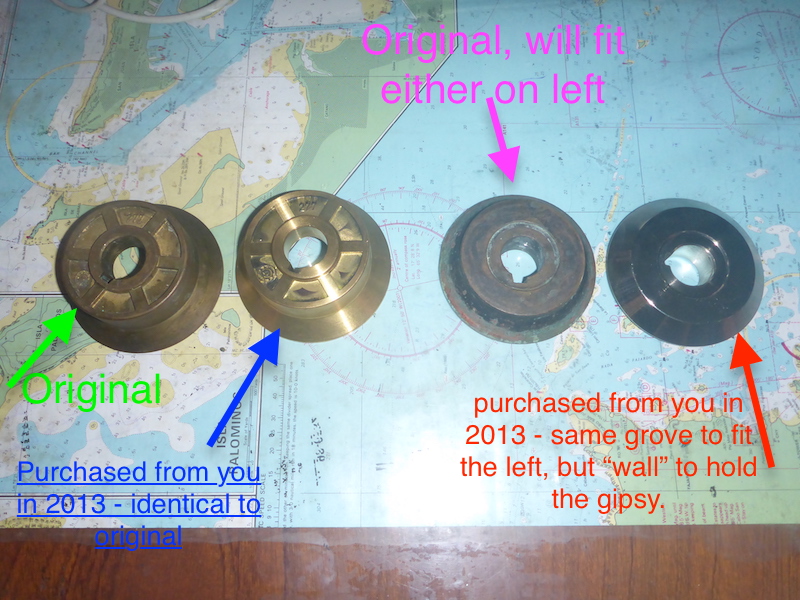

Part 318 clutch cone / shove gipsy




 windlass lofrans tigres used 318 shove gipsy Amel Super Maramu 2000




 windlass lofrans tigres used 318 shove gipsy Amel Super Maramu 2000






 windlass lofrans tigres used 318 shove gipsy Amel Super Maramu 2000




 windlass lofrans tigres used 318 shove gipsy Amel Super Maramu 2000




 windlass lofrans tigres used 318 shove gipsy Amel Super Maramu 2000

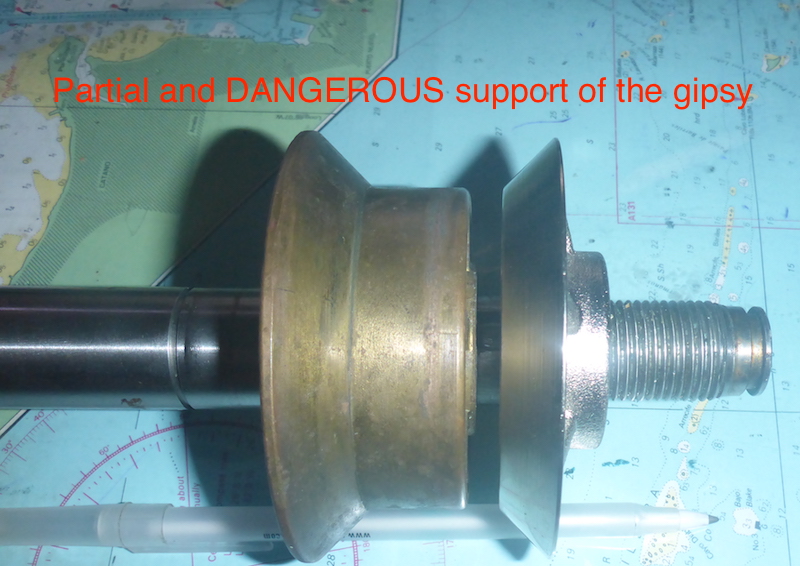

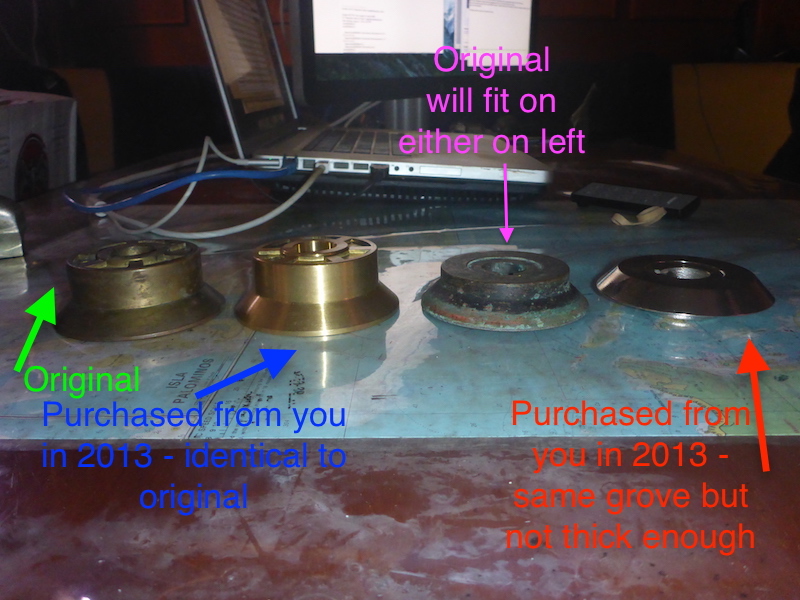

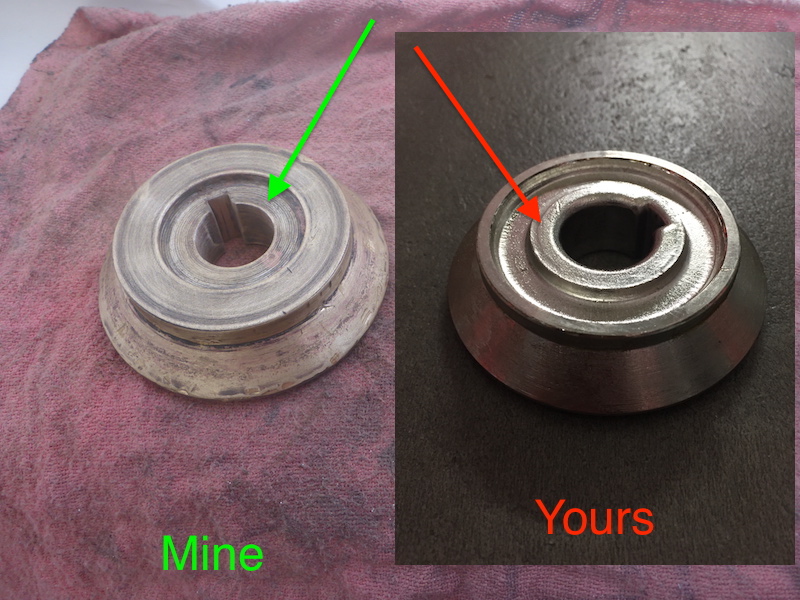

Look at the difference between the Green and Red arrows.
Your (red) goes up, Mine (green) goes down
 windlass lofrans tigres used 478 main shaft Amel Super Maramu 2000

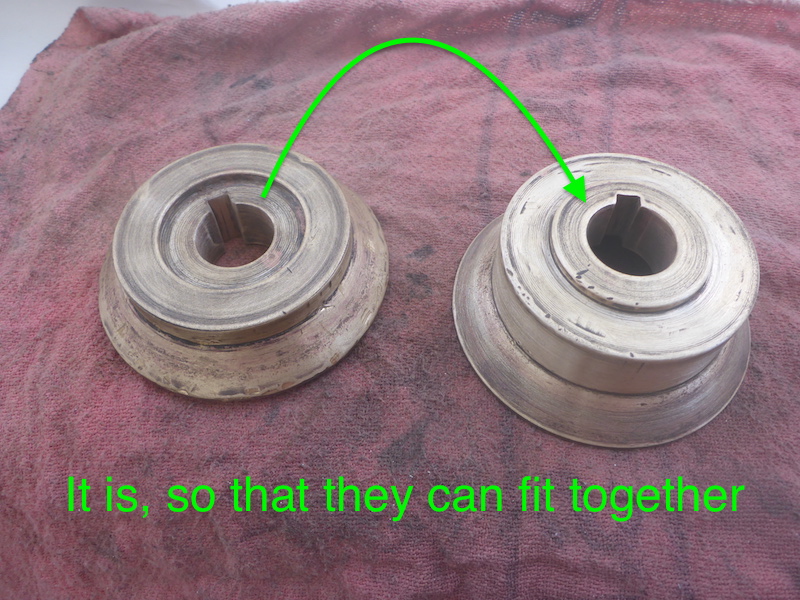

It is so the 2 cone fit together.
 windlass lofrans tigres used 318 shove gipsy Amel Super Maramu 2000

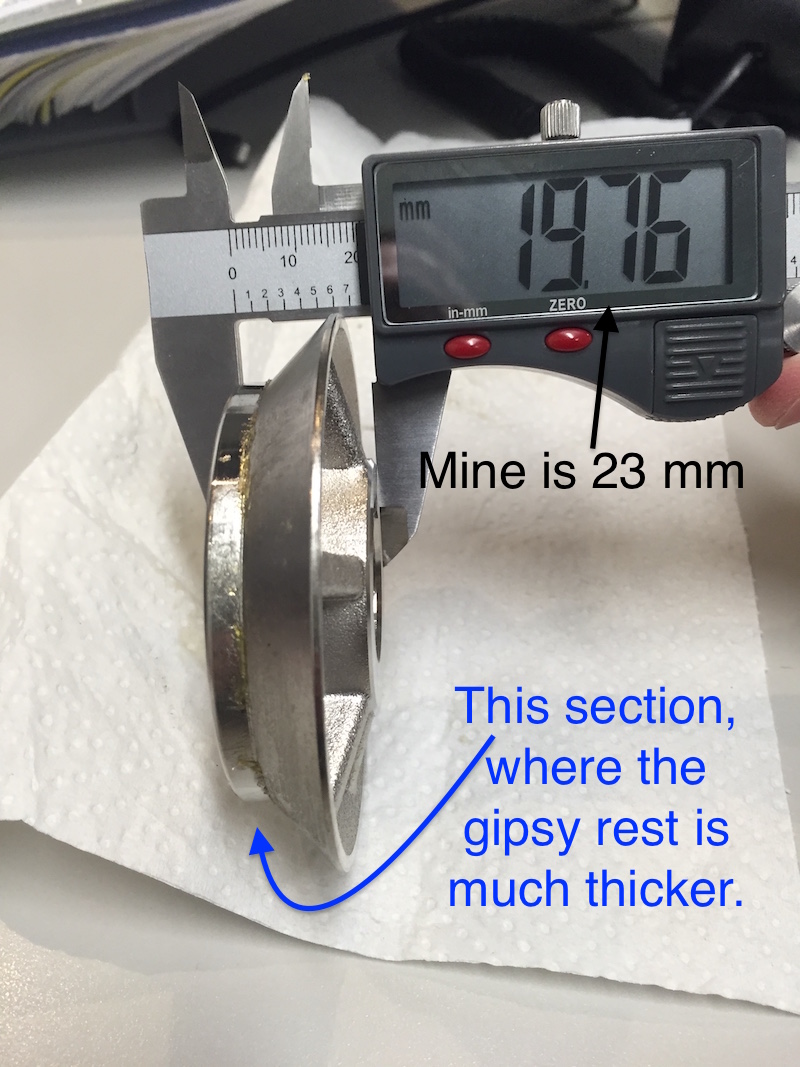

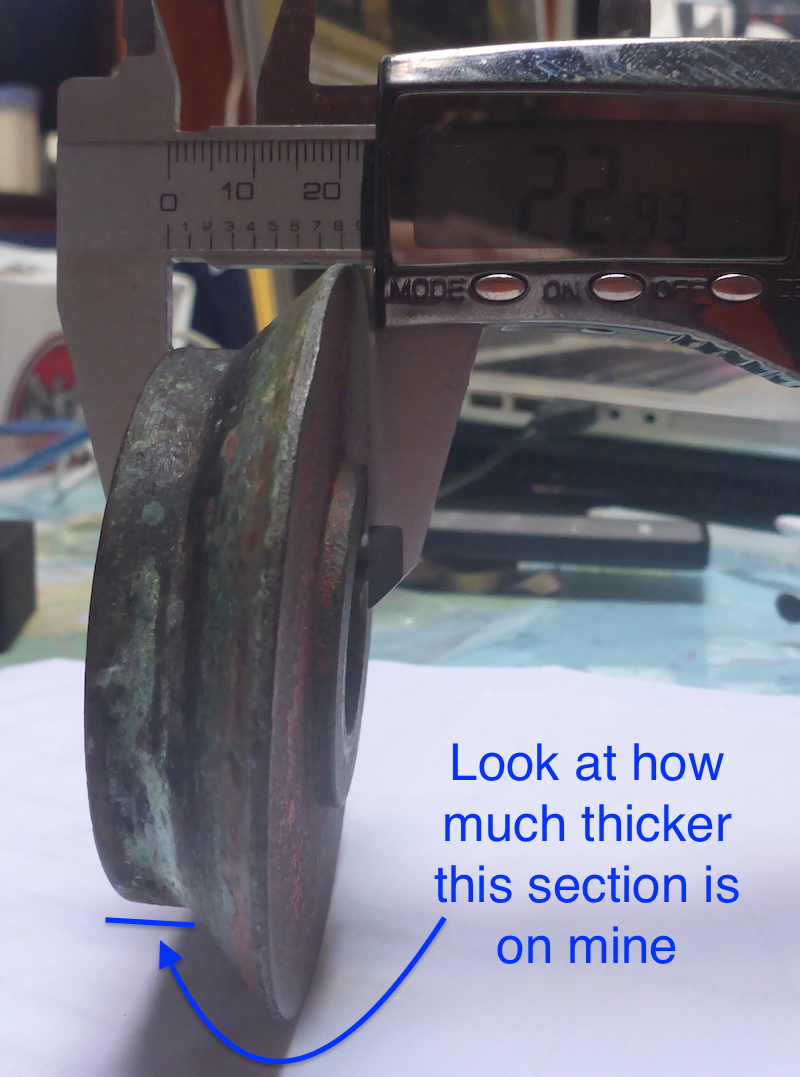

Mine has a total thickness of 23 mm
The part in BLUE that hold the gipsy is much thicker than yours
 windlass lofrans tigres used 318 shove gipsy Amel Super Maramu 2000



Look at how much thicker this "blue" section is
 windlass lofrans tigres used 318 shove gipsy Amel Super Maramu 2000

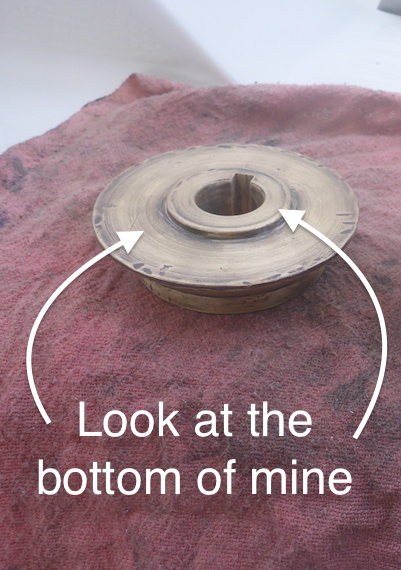

This is the bottom
 windlass lofrans tigres used 318 shove gipsy Amel Super Maramu 2000
