Amel Super Maramu 2000
Frigoboat Fridge removal
In order to clean the condenser and it's fan you will have to do the following.

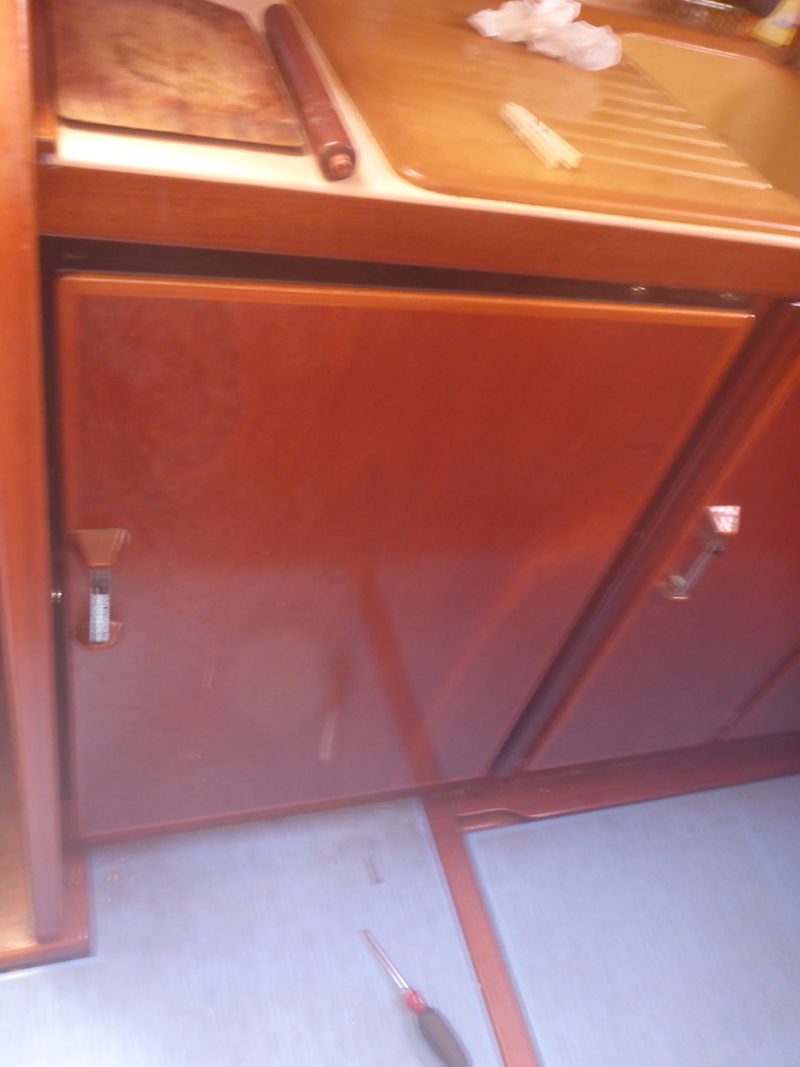

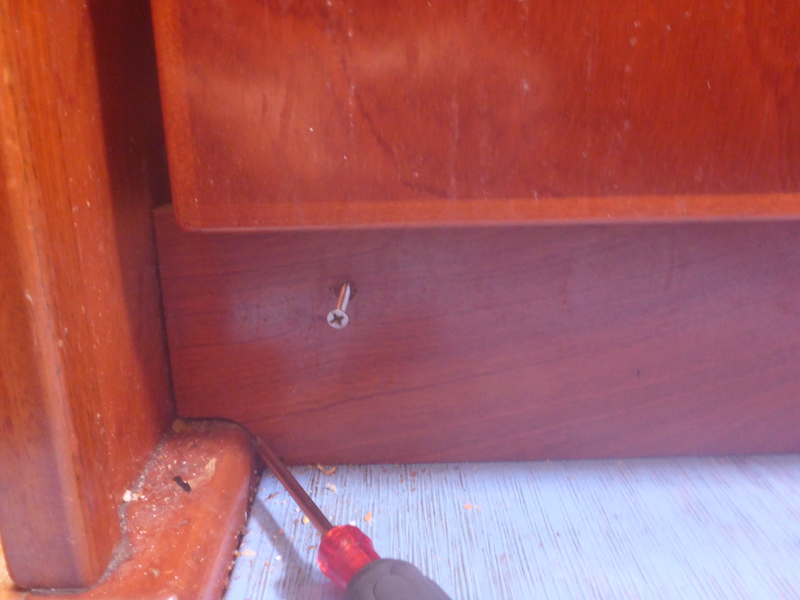

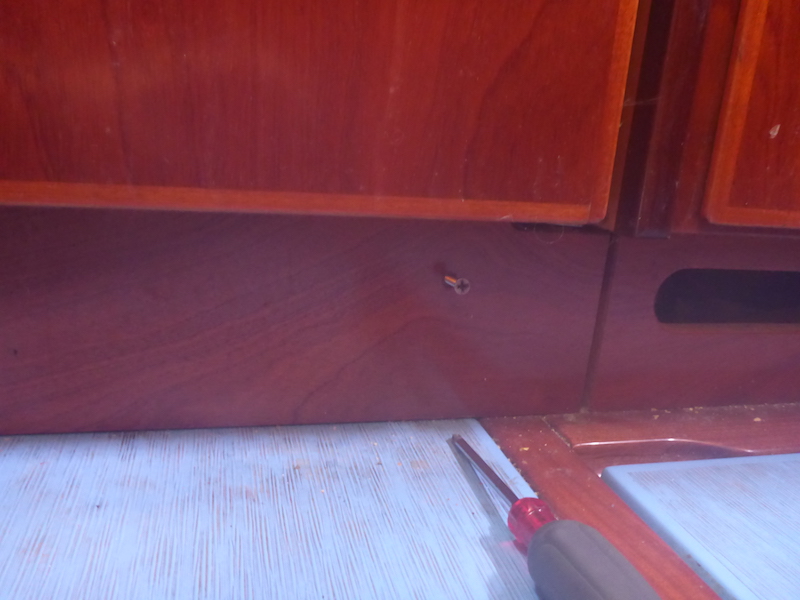

Bottom of the fridge remove screw
Remove screw on the other side (don’t look at the dust)
Remove the plan that give access to the compressor box

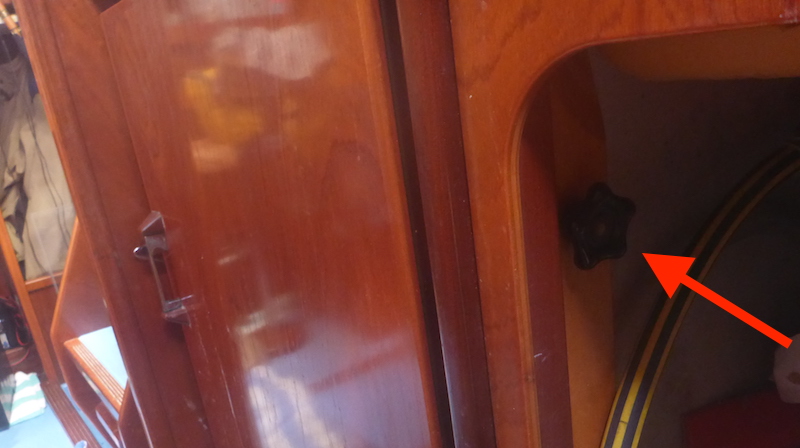

Unscrew the knob that hold the fridge in place

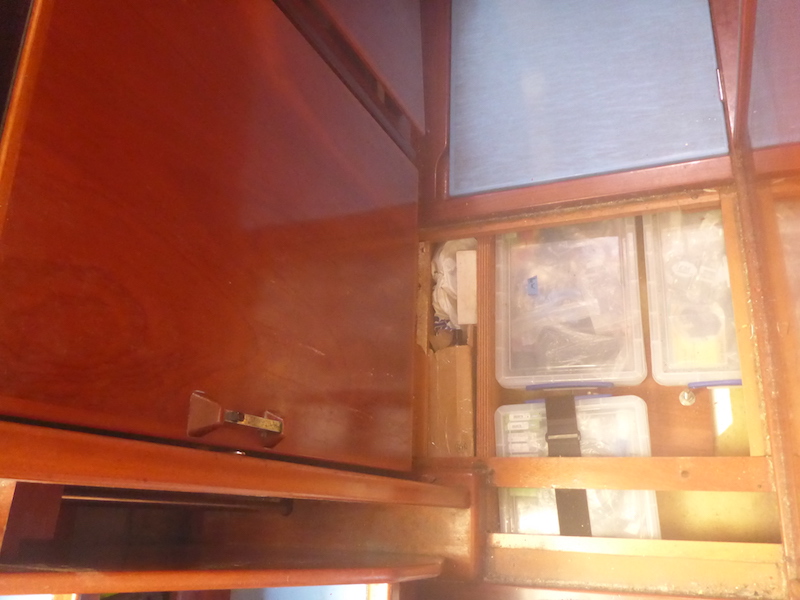

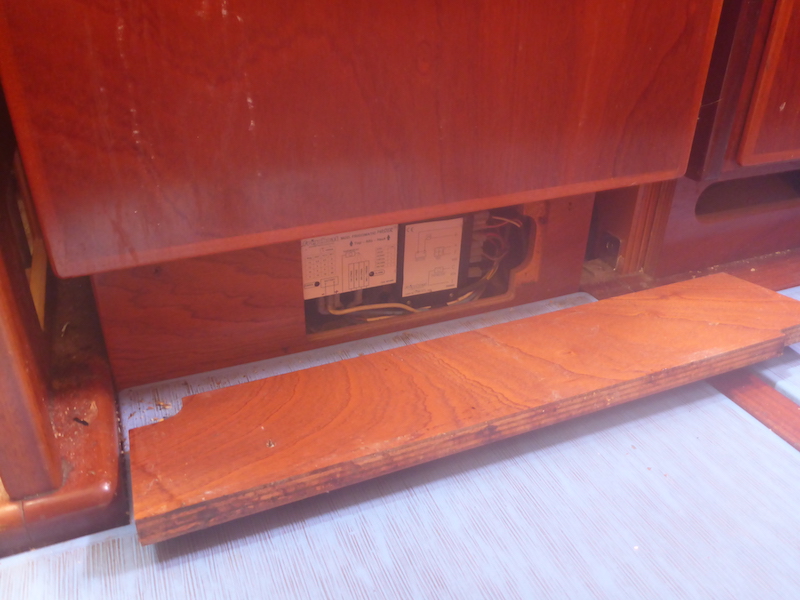

Remove the floor board
Note: I use this space to store parts

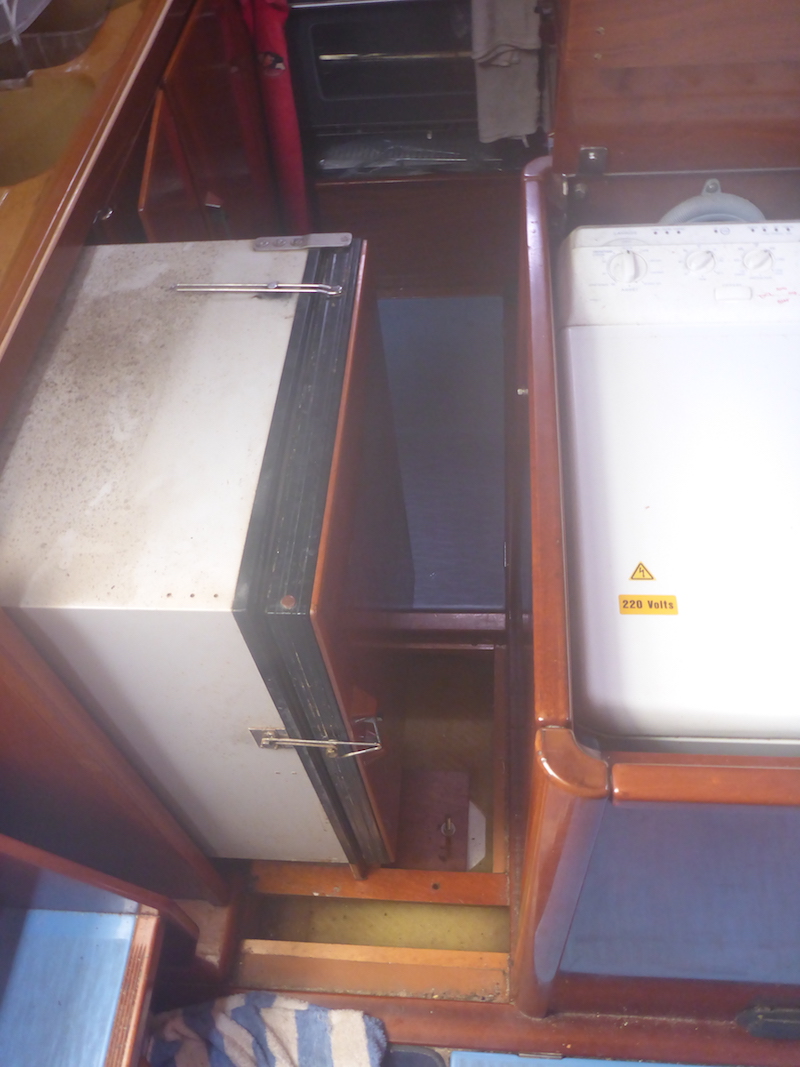

As you slide the fridge out, you will realize there is not enough space

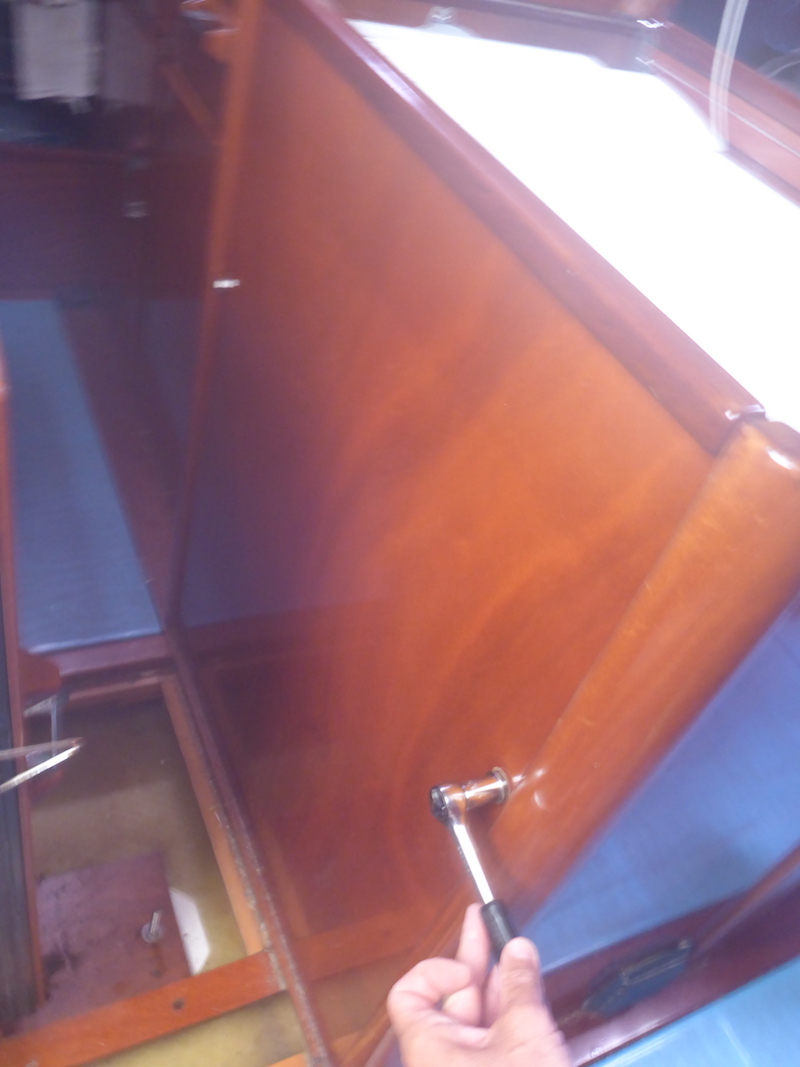

So you need to remove the washing machine cover, using a 13 mm wrench

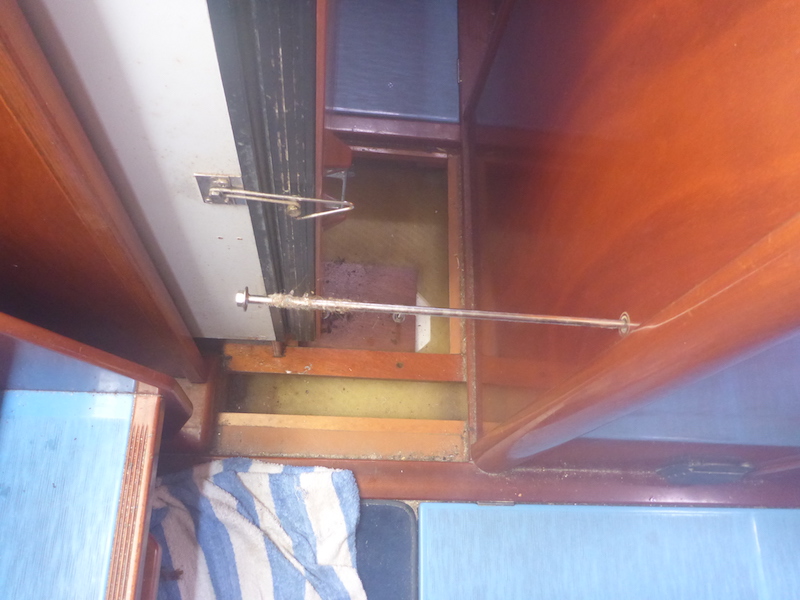

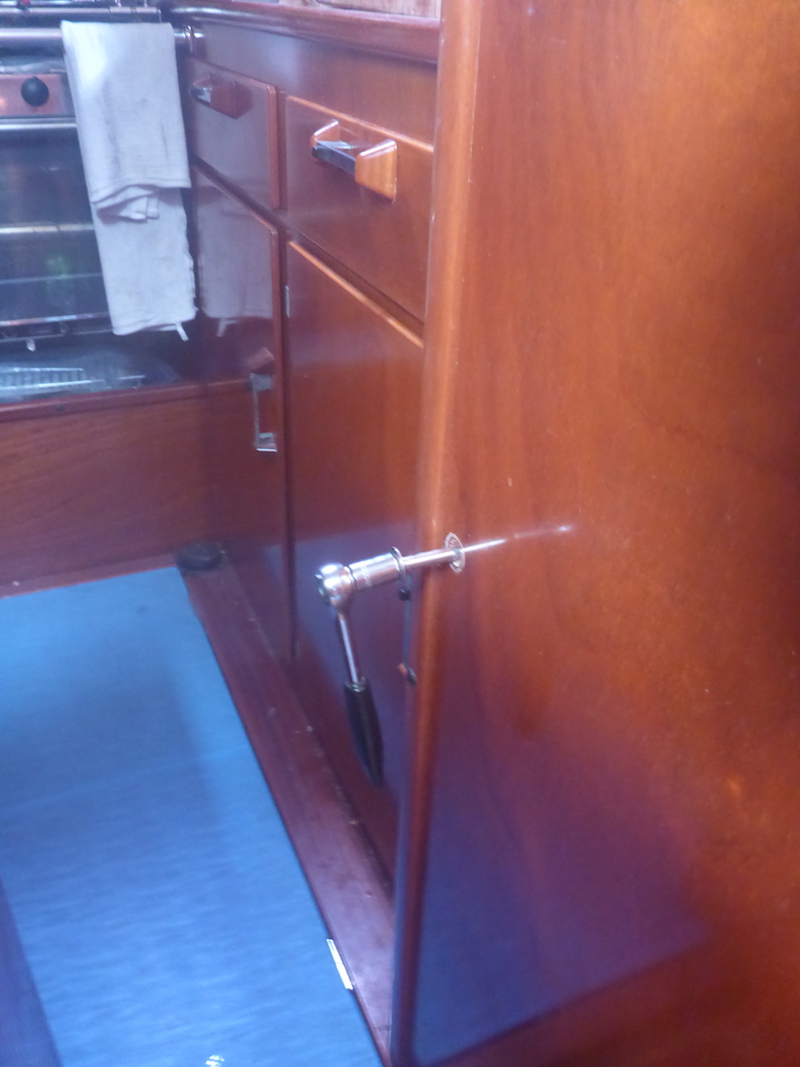

Remove the long bolt
Remove the other side
Remove the other long bolt

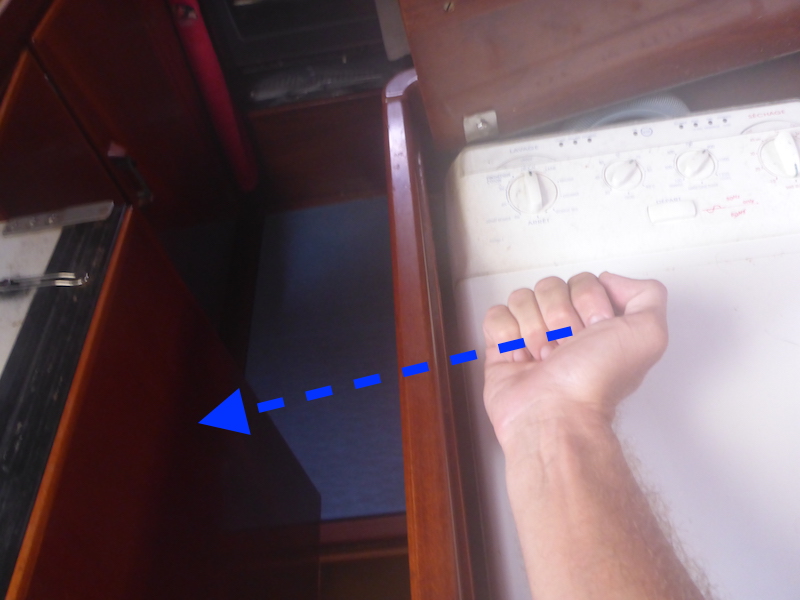

Gently tap against the panel.

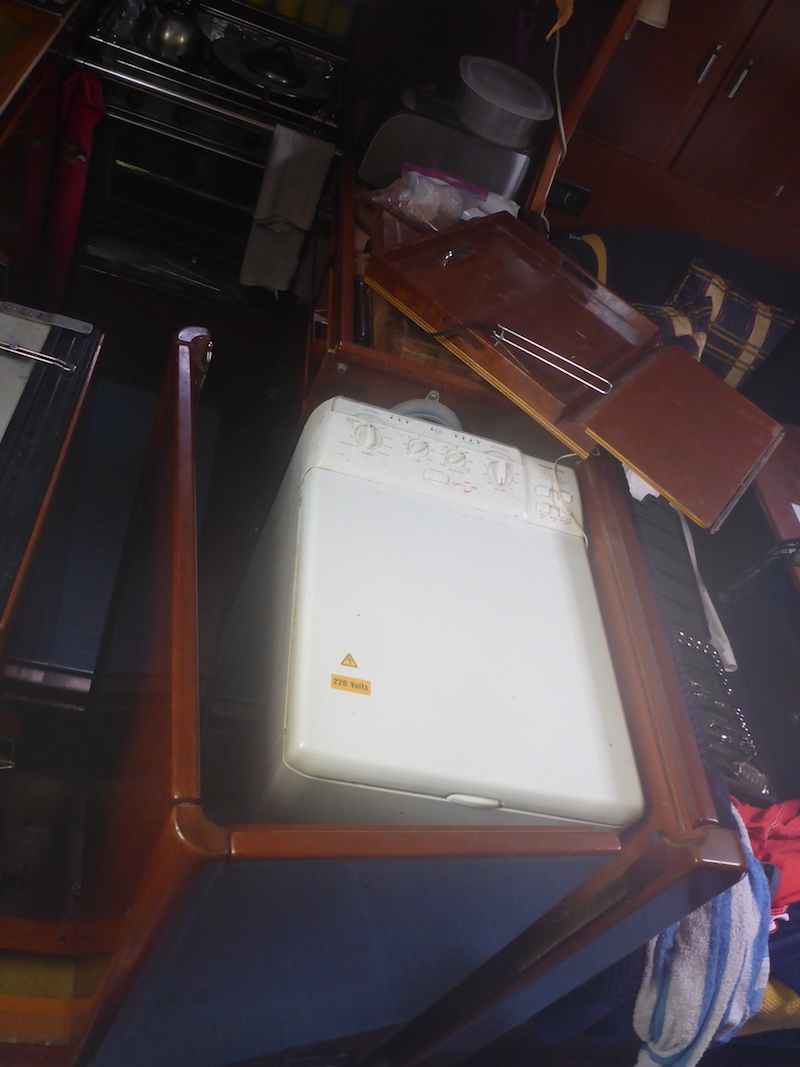

The top hiding the washing machine will fall
You can see the "L" shape of the washing machine cover

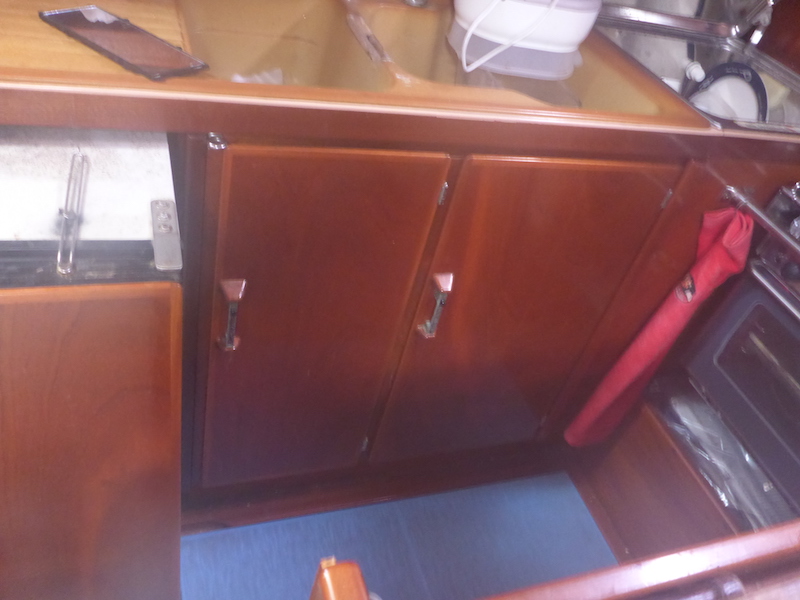

Now you need to remove the sink panel

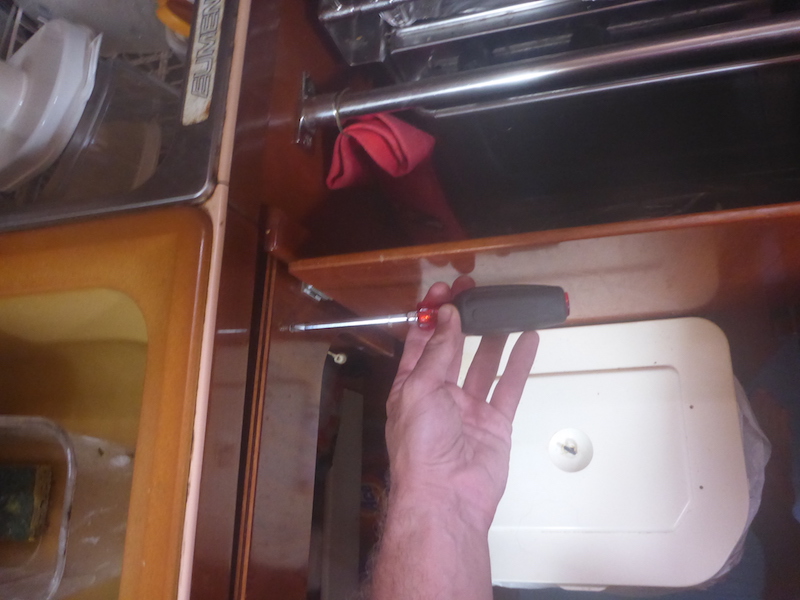

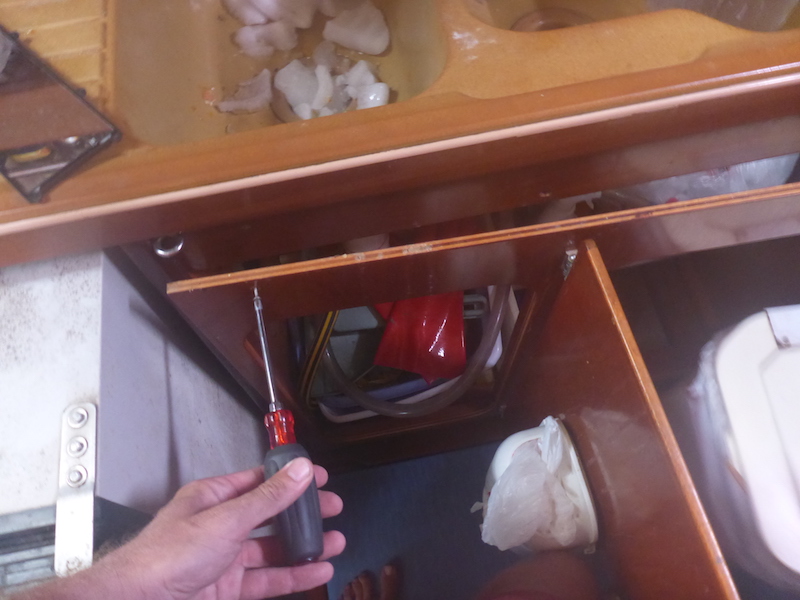

Remove right screw
Remove left screw
Lift the panel up and remove it

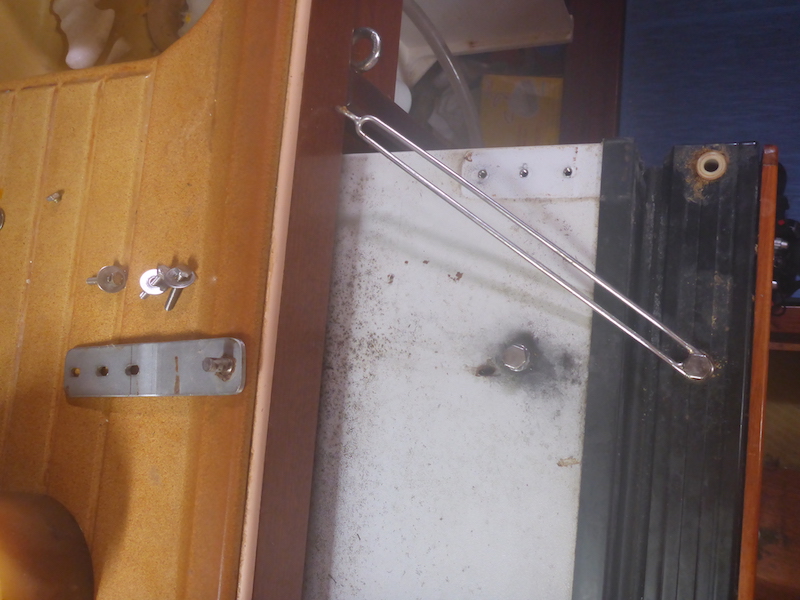

Spread wide the door attach (I started unbolting it but it look weak)

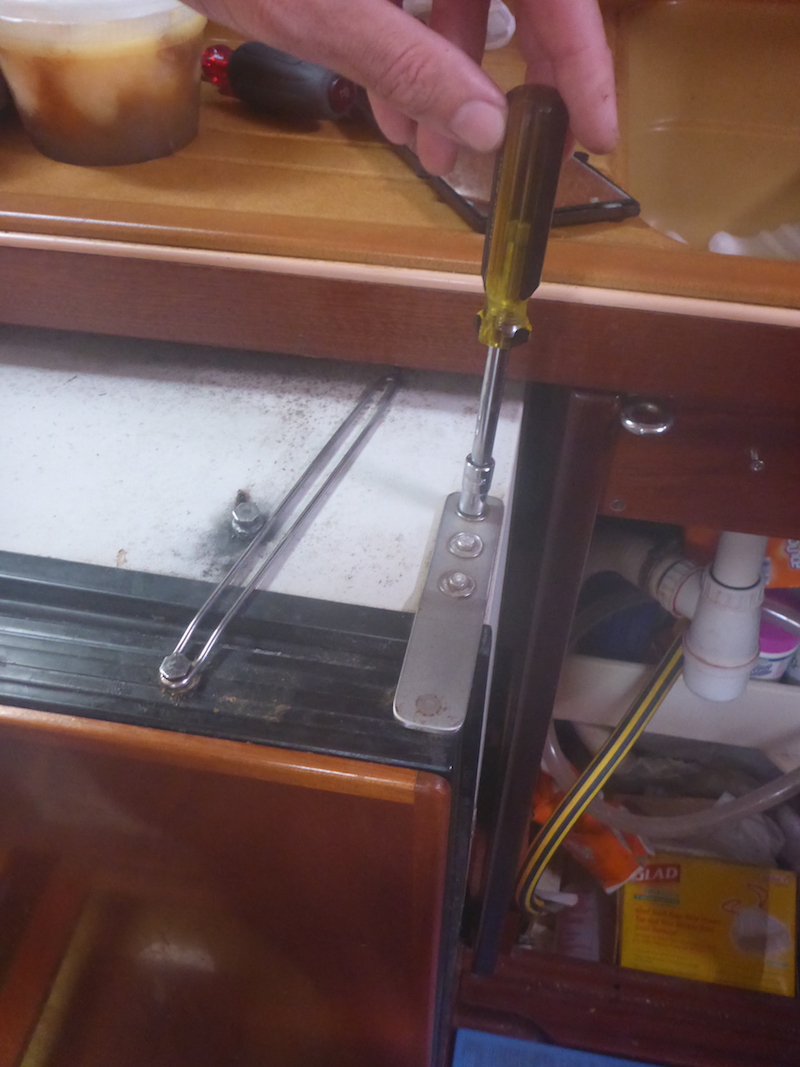

Remove the 3 bolts that hold the door attach

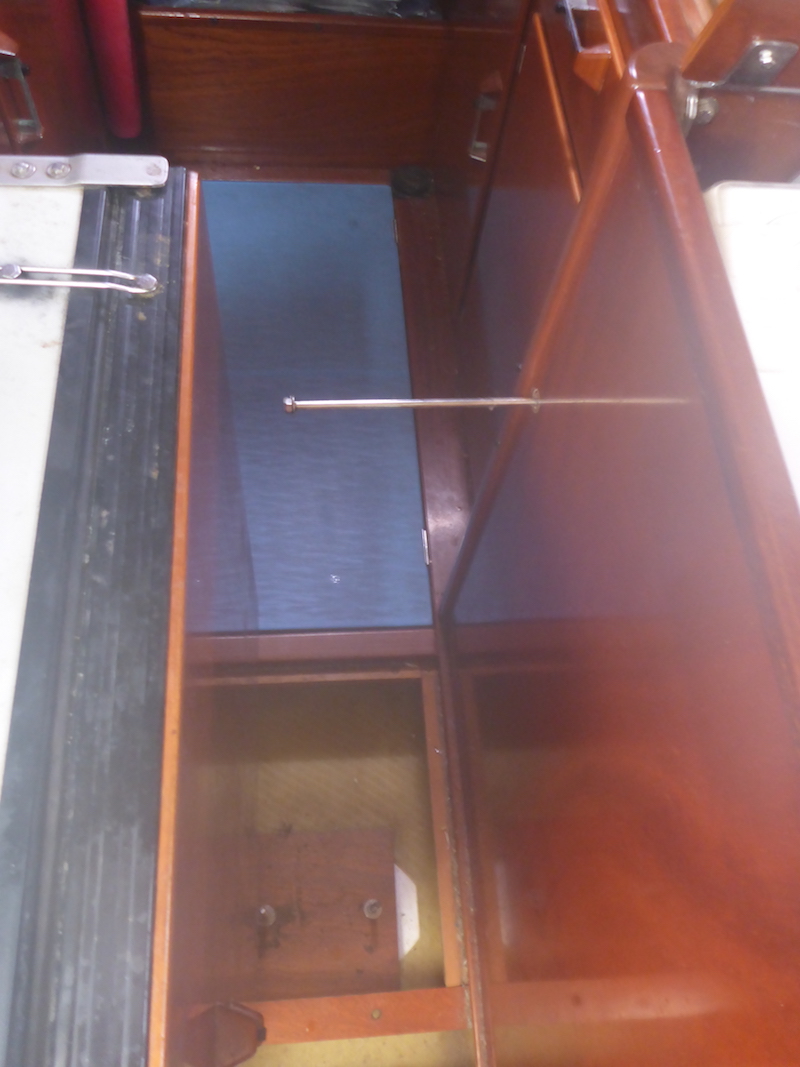

Now you can remove the door

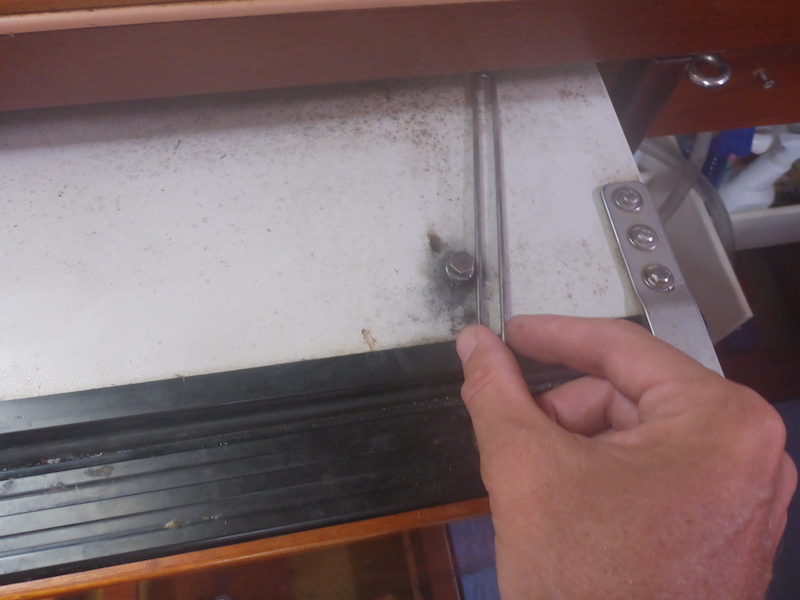

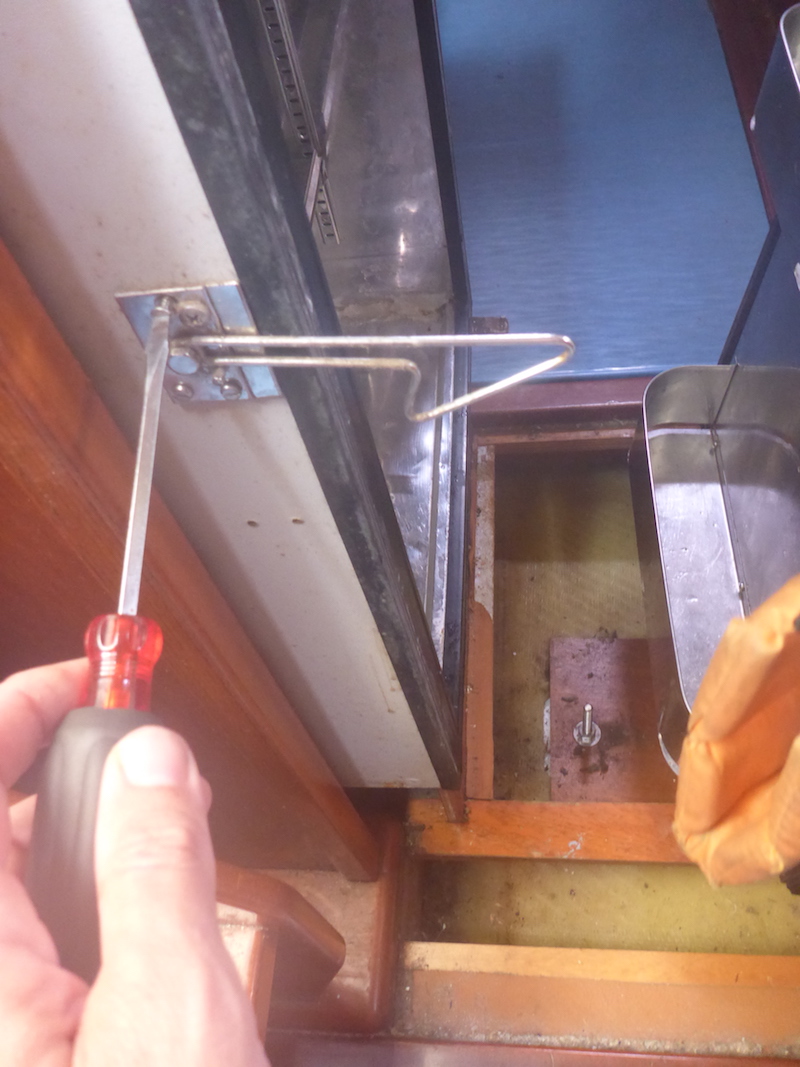

Remove the latch that keep the fridge's door secure

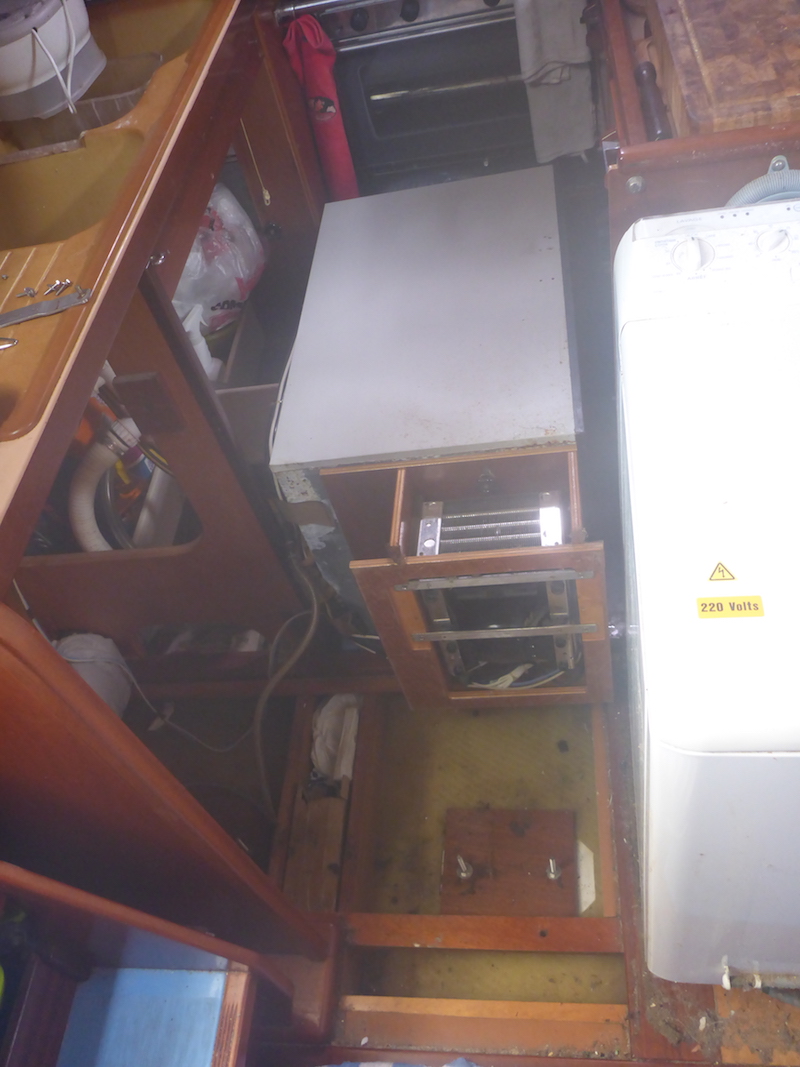

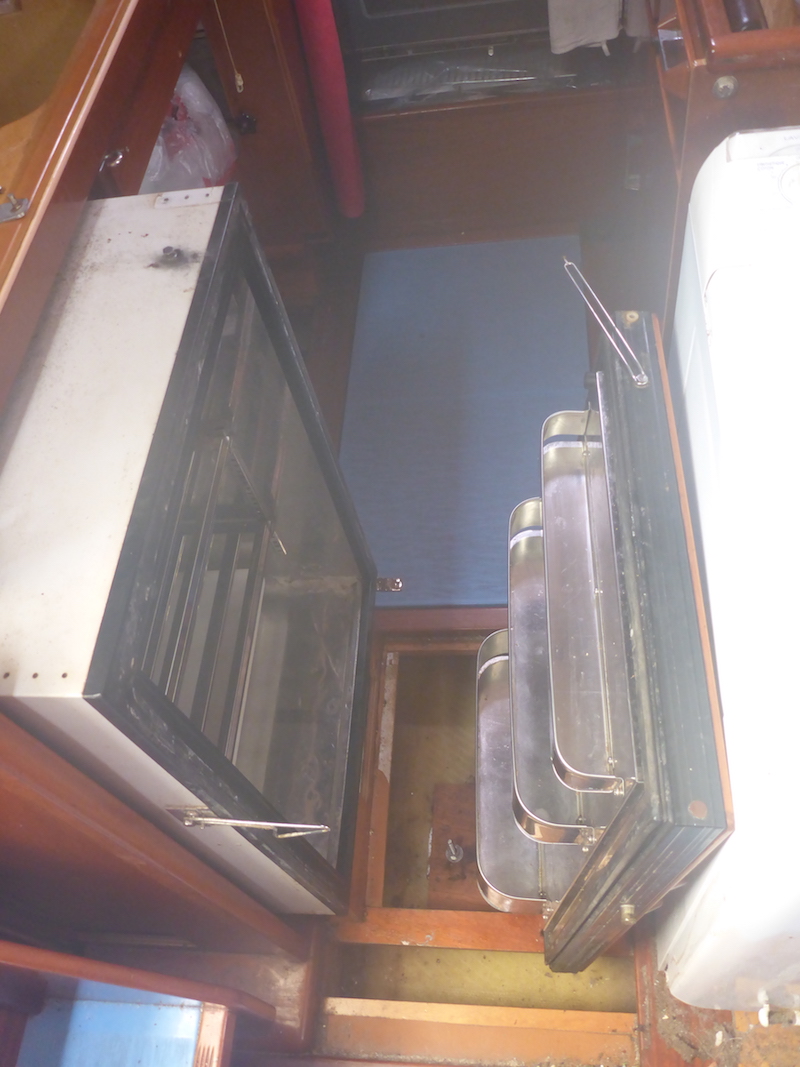

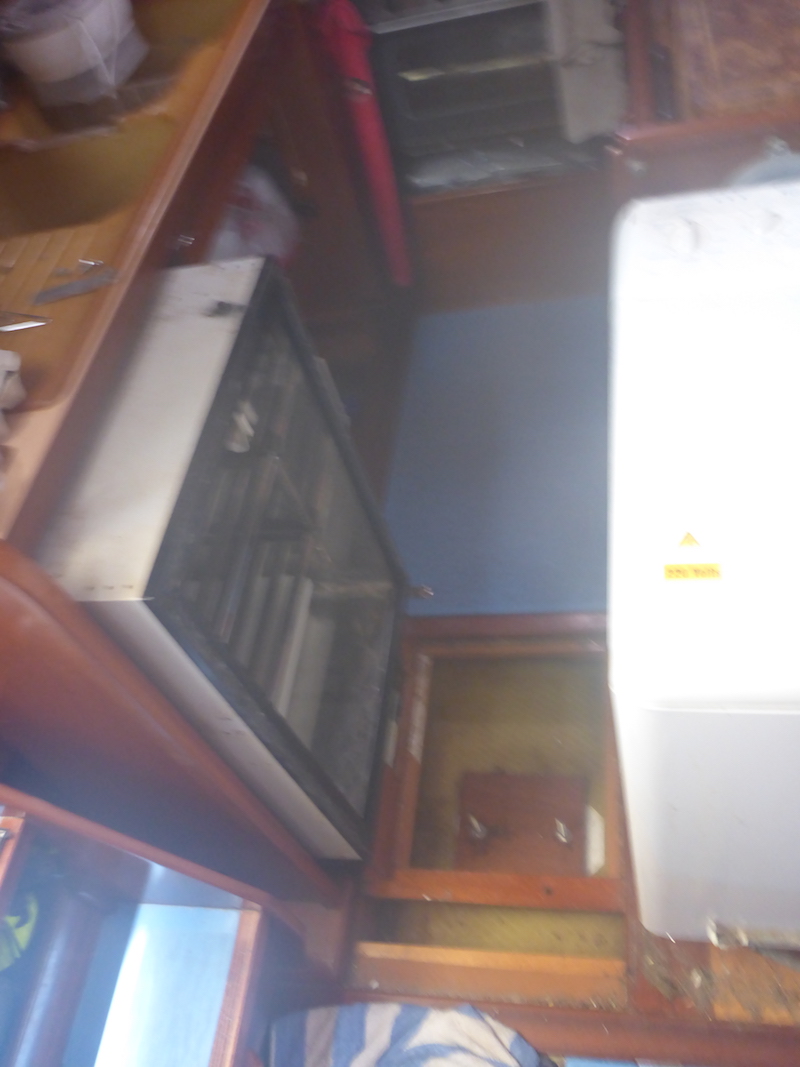

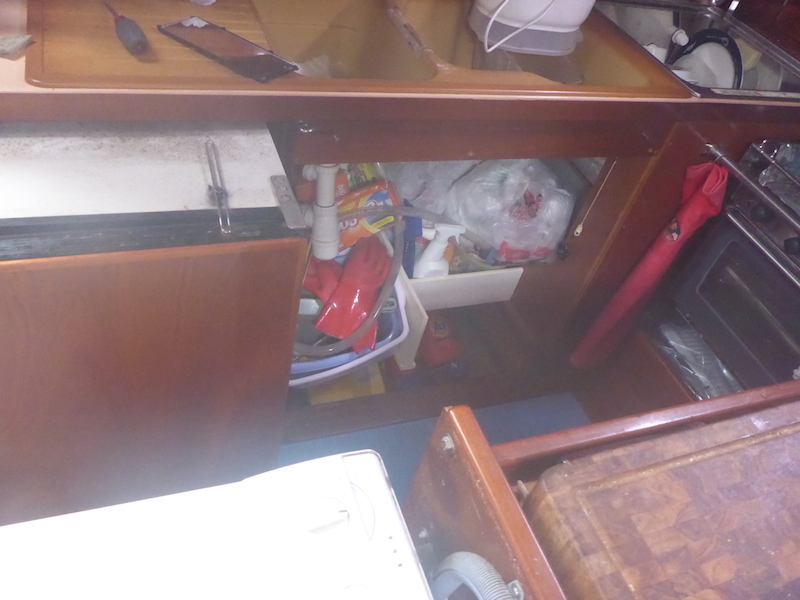

Now you have enough space to remove the fridge

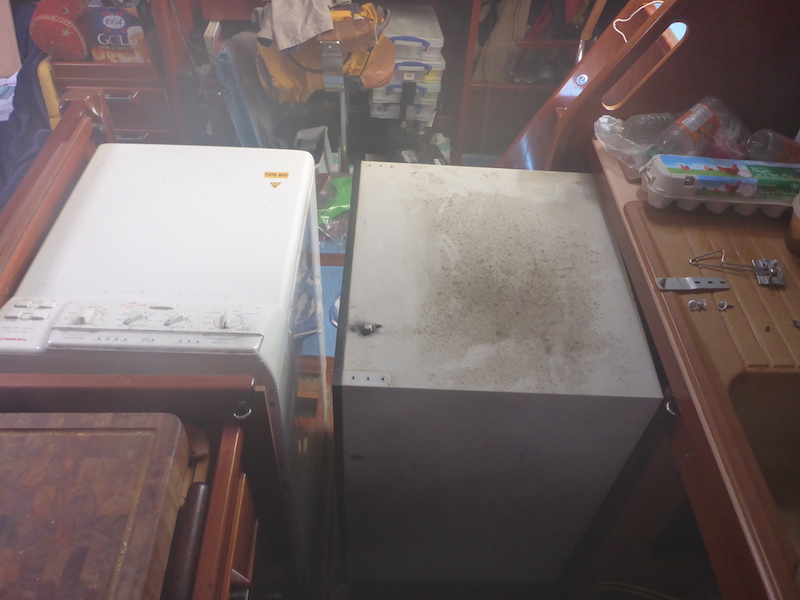

Slide it out (picture taken from the other side)

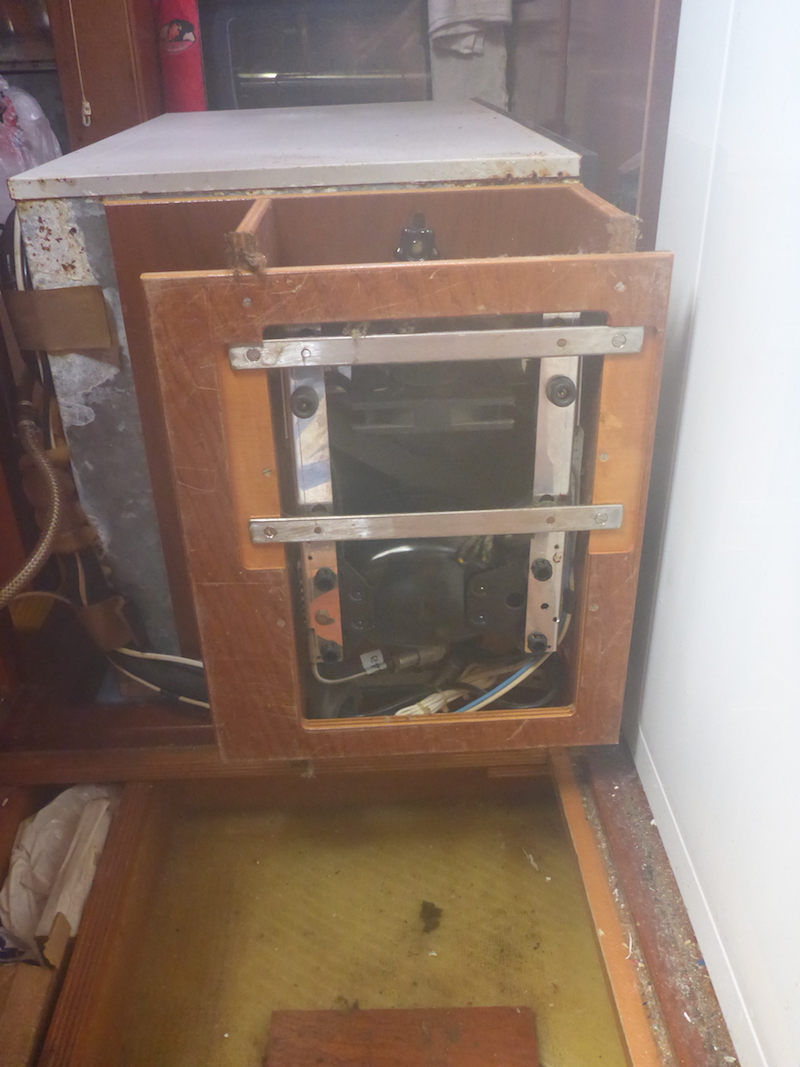

Then I was able to lean the fridge on its side

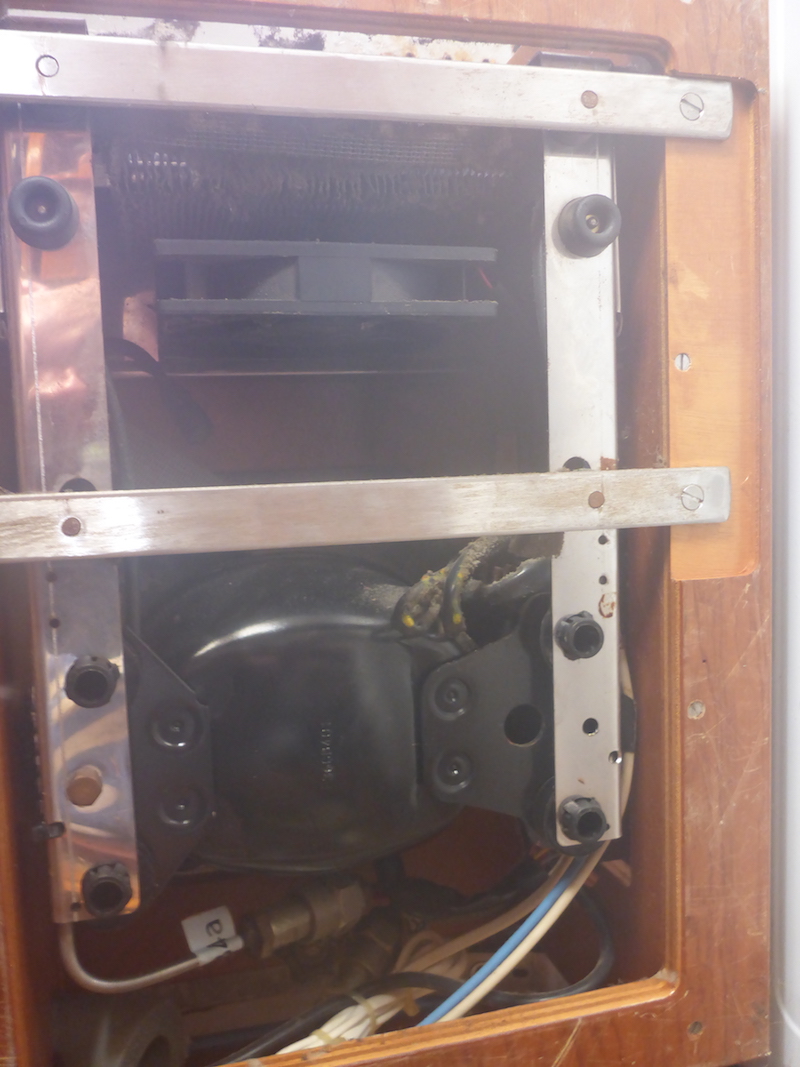

And access the compressor, condenser and it's fan.
Closed up view

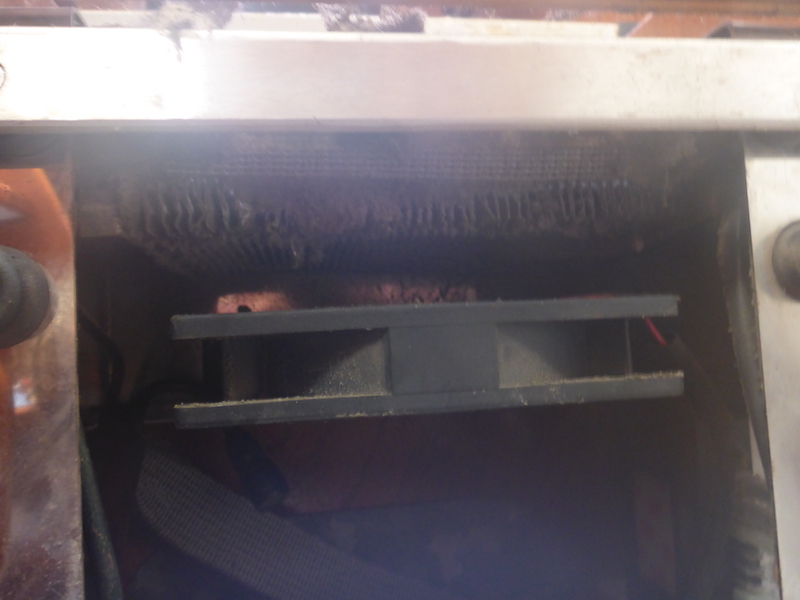

You can see the dust that accumulated on the condenser

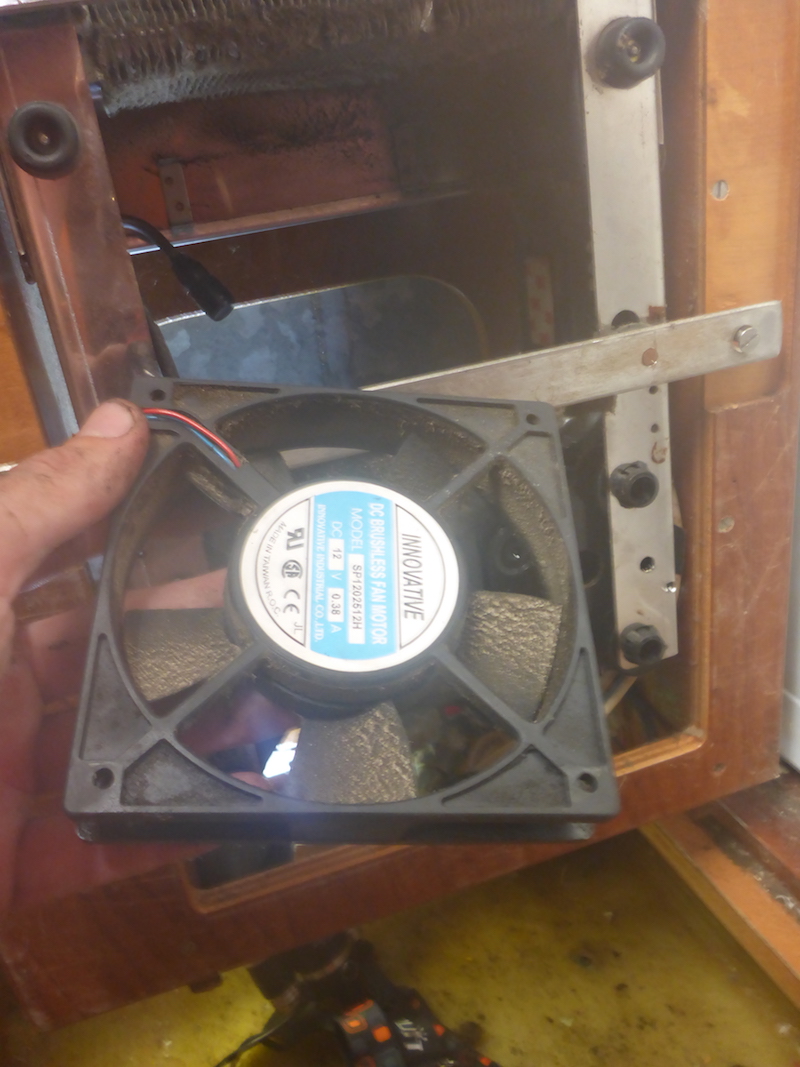

The fan is hold with 2 bolts which were difficult to reach
Then everything was cleaned and put back together in reverse order.
