Amel Super Maramu 2000
Shore Power Plugs
Optional 110 Volt shore cable
SM2K #289 is equipped with 2 shore power cable.
In addition to the 220 Volt shore power terminated with a 16 Amp European plug

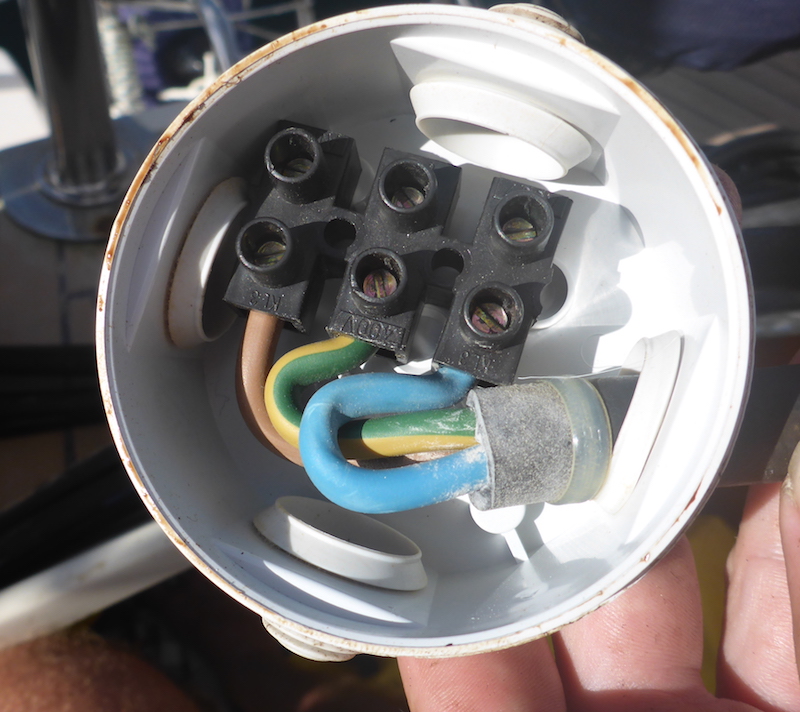

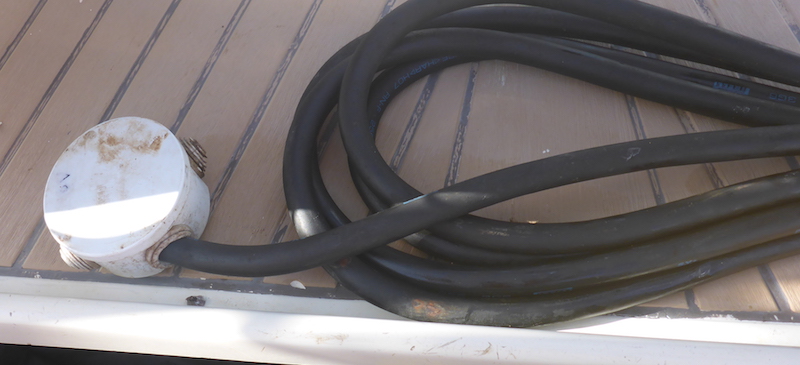

There is also a 110 Volt cable which was not terminated

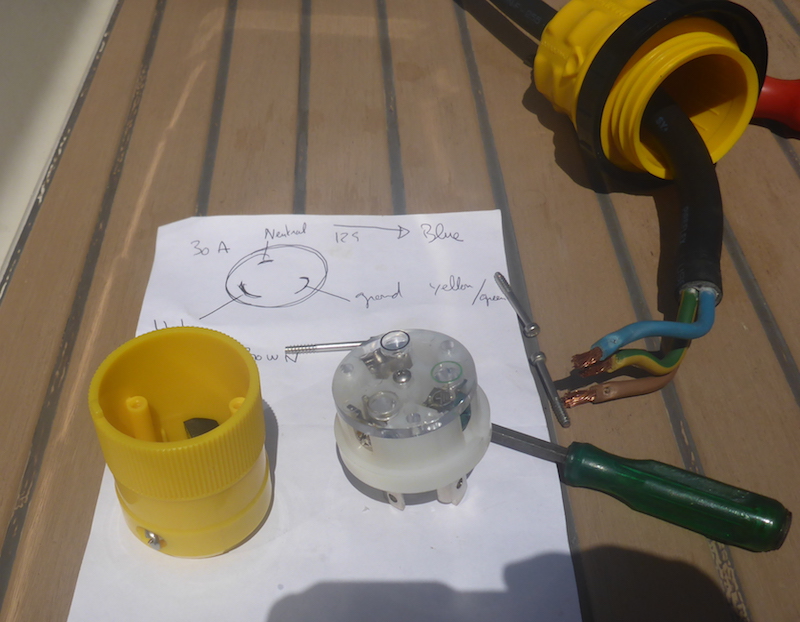

With 3 wires: Brown, Blue and Yellow/Green
Blue wire goes to the neutral connection.
The brown wire goes to the hot.
Green/yellow goes to ground.

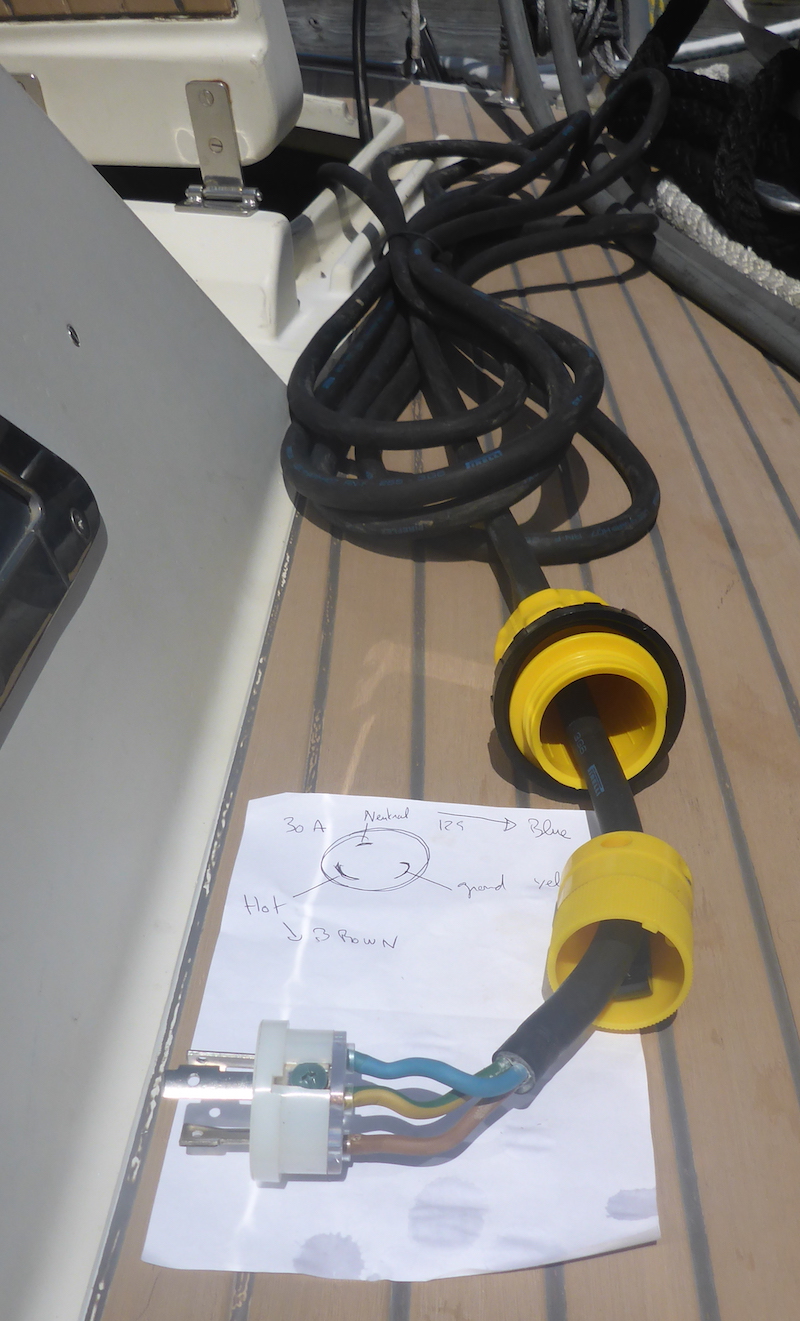

Installation of the 125 Volt 30 Amp
