Amel Super Maramu 2000

Could be a coincidence, but after I cleaned the exhaust elbow on the generator, I noted the voltage went up almost to 250 Volt (and actually destroyed a fan (connected to my 220 volt system). So I had to adjust the voltage on my ONAN MDKAL.

Thanks to Ben Driver (SM #347 La Bella Vita) who gave me the procedure:
"It's easy to adjust voltage on Onan. On bottom of control box - on board facing up - is a very small screw covered with a rubberized barrier ( you need to peel a small amount off to turn screw). With a very very small screw driver turn screw clockwise to increase voltage and counter clockwise to reduce voltage. After turning screw about 1/2 turn I ran gen-set to check volts. You likely will need do this several times. I did read you could make adjustment with generator running but thought this not a good idea for me. "

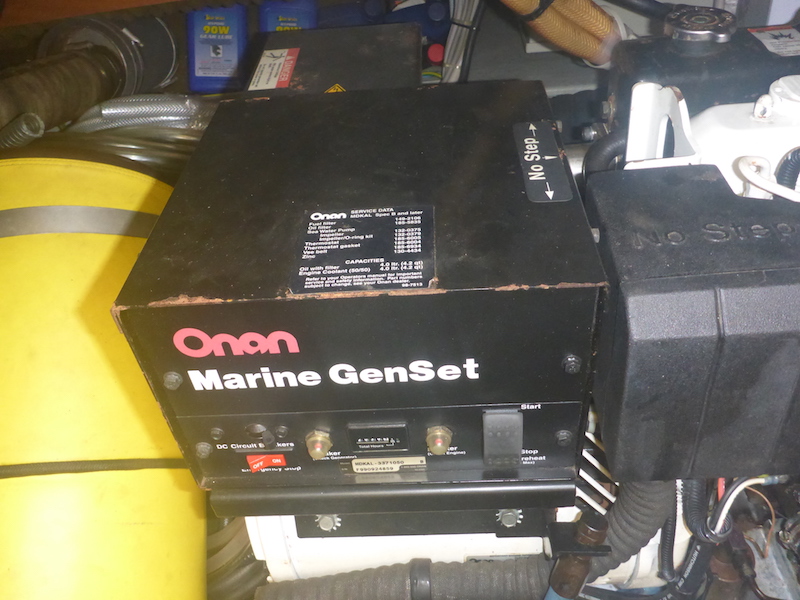

 Voltage adjustment Genset ONAN MDKAL Amel Super Maramu 2000

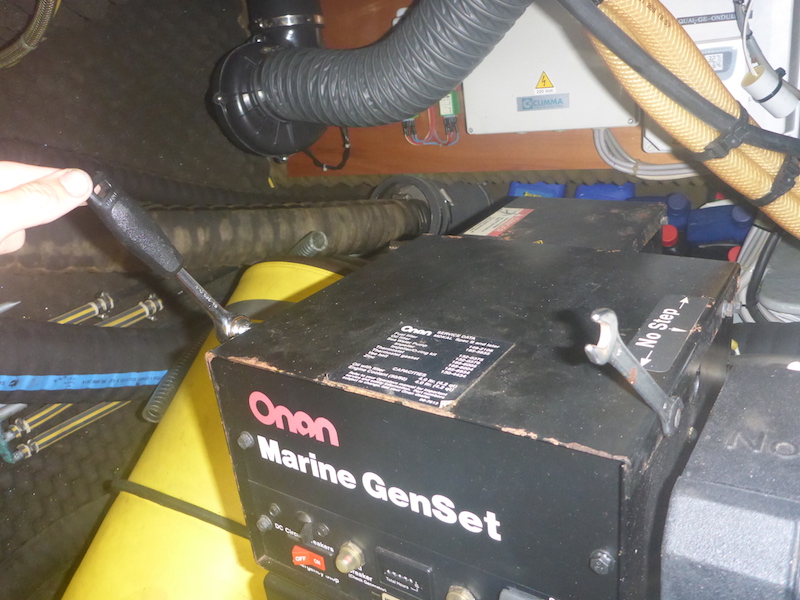

Open the control box using wrenches
 Voltage adjustment Genset ONAN MDKAL Amel Super Maramu 2000



Remove the cover
 Voltage adjustment Genset ONAN MDKAL Amel Super Maramu 2000

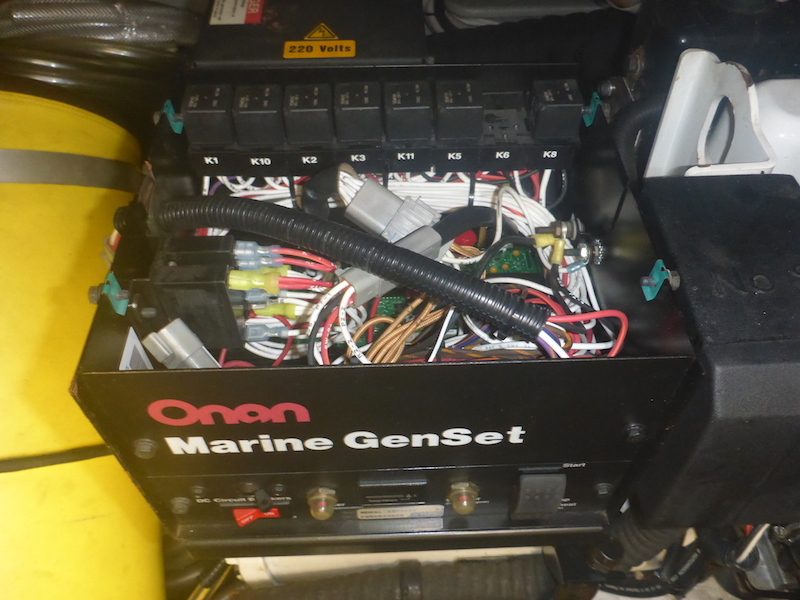

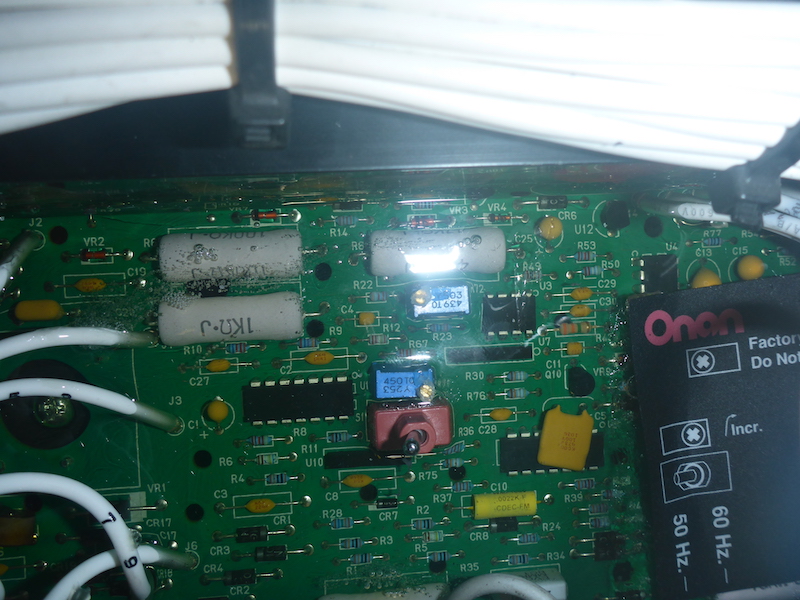

Looks complicated
 Voltage adjustment Genset ONAN MDKAL Amel Super Maramu 2000

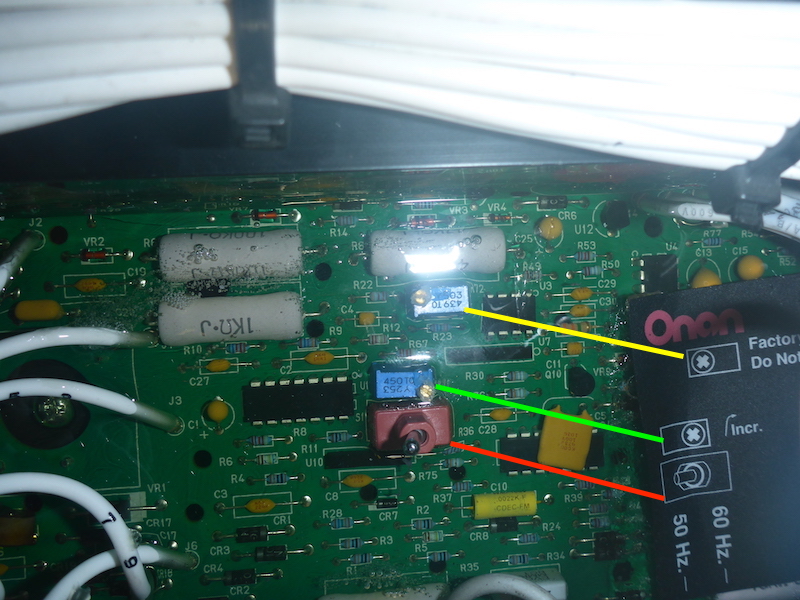

Showing what is what
So we will want to adjust the green
 Voltage adjustment Genset ONAN MDKAL Amel Super Maramu 2000

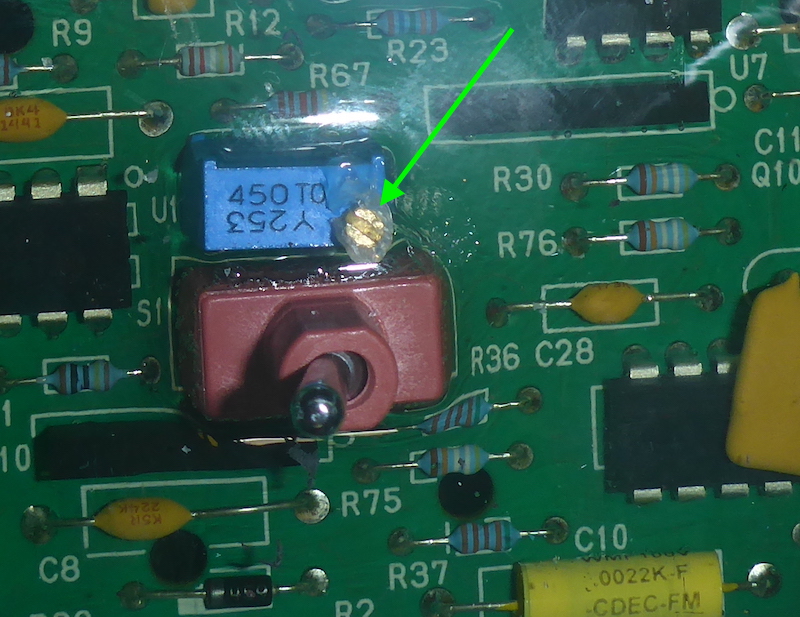

Tiny bolt
Turn left / counter clock wise to reduce the voltage
 Voltage adjustment Genset ONAN MDKAL Amel Super Maramu 2000
