Amel Super Maramu 2000

Accessing the Eumenia dishwasher

Prior to access the Eumenia dishwasher, you will need to remove the Eno Stove Oven.
The entire process is illustrated on: Removal of Eno Stove Oven

Thanks to information from Mark Erdos (SM#275 Cream Puff) to help in the process

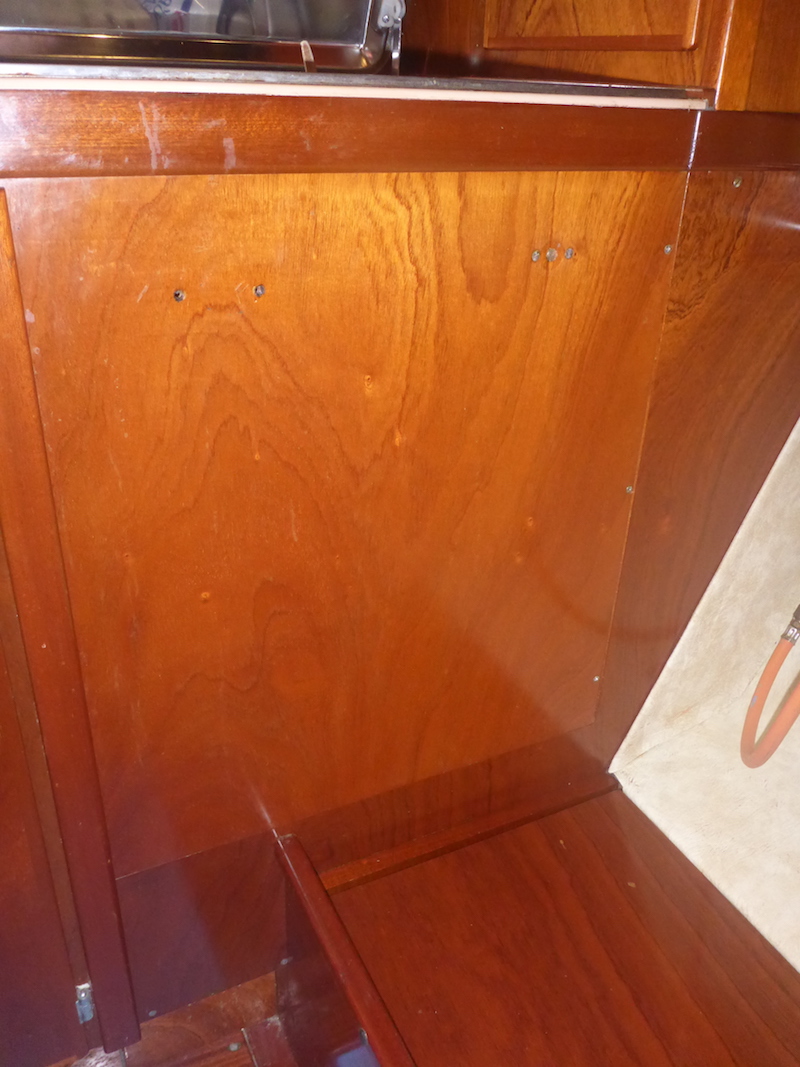

Panel covering the dishwasher
 Amel Super Maramu 2000 Eumenia dishwasher access

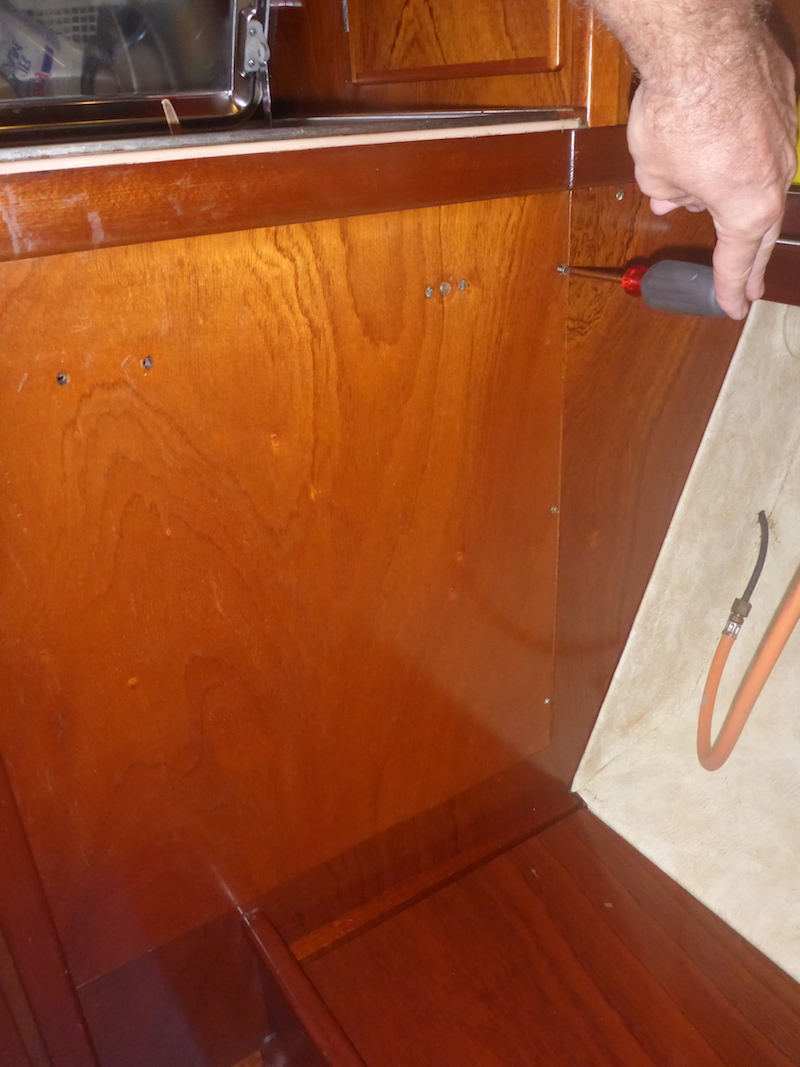

Remove the (3) screws you see
 Amel Super Maramu 2000 Eumenia dishwasher access

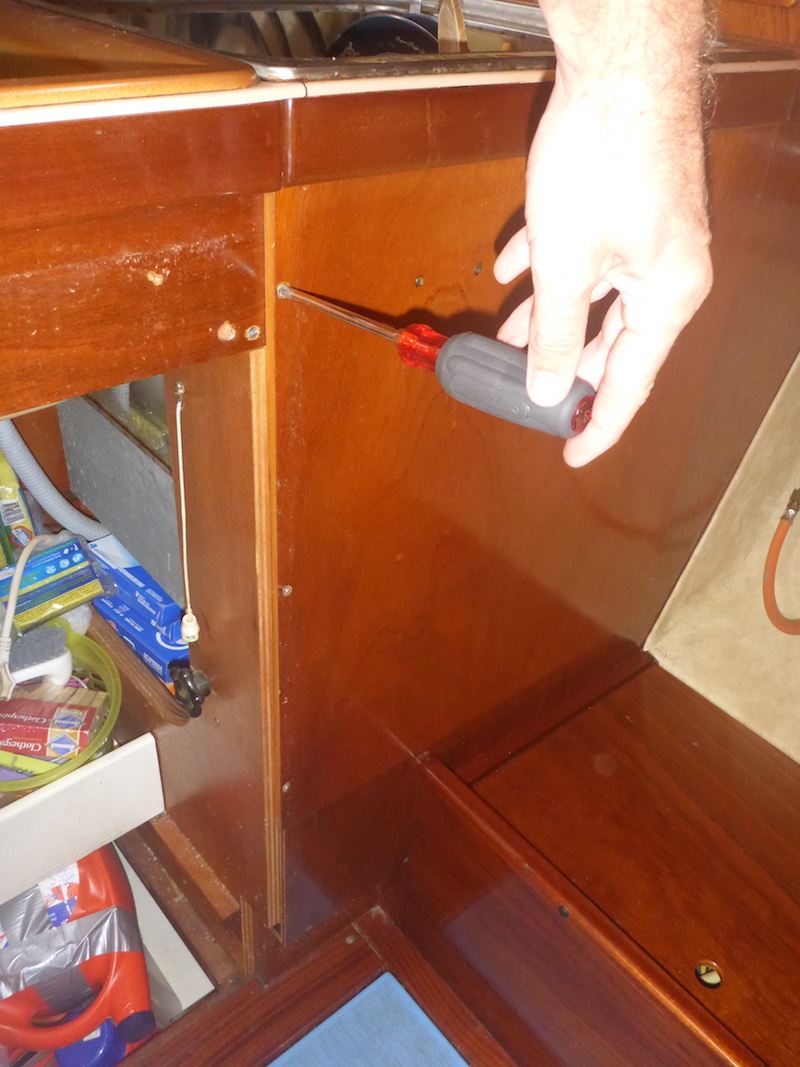

Then (thanks Mark Erdos SM#275 Cream Puff) you need to open the door, remove the screw
 Amel Super Maramu 2000 Eumenia dishwasher access



Then remove the screw on the other side
 Amel Super Maramu 2000 Eumenia dishwasher access



The panel will inge

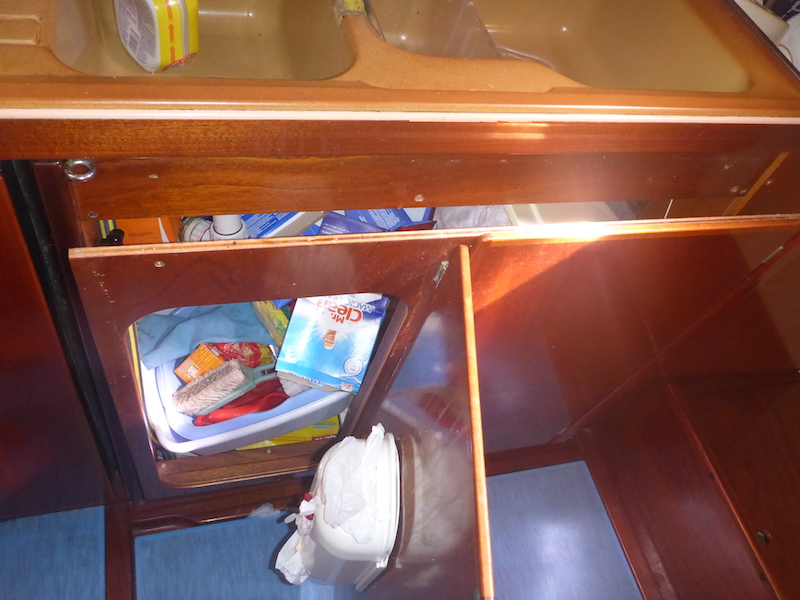

You will then need to disconnect the trash
 Amel Super Maramu 2000 Eumenia dishwasher access



Lift the panel then bring it out
 Amel Super Maramu 2000 Eumenia dishwasher access



Then remove the now visible 3 screws
 Amel Super Maramu 2000 Eumenia dishwasher access

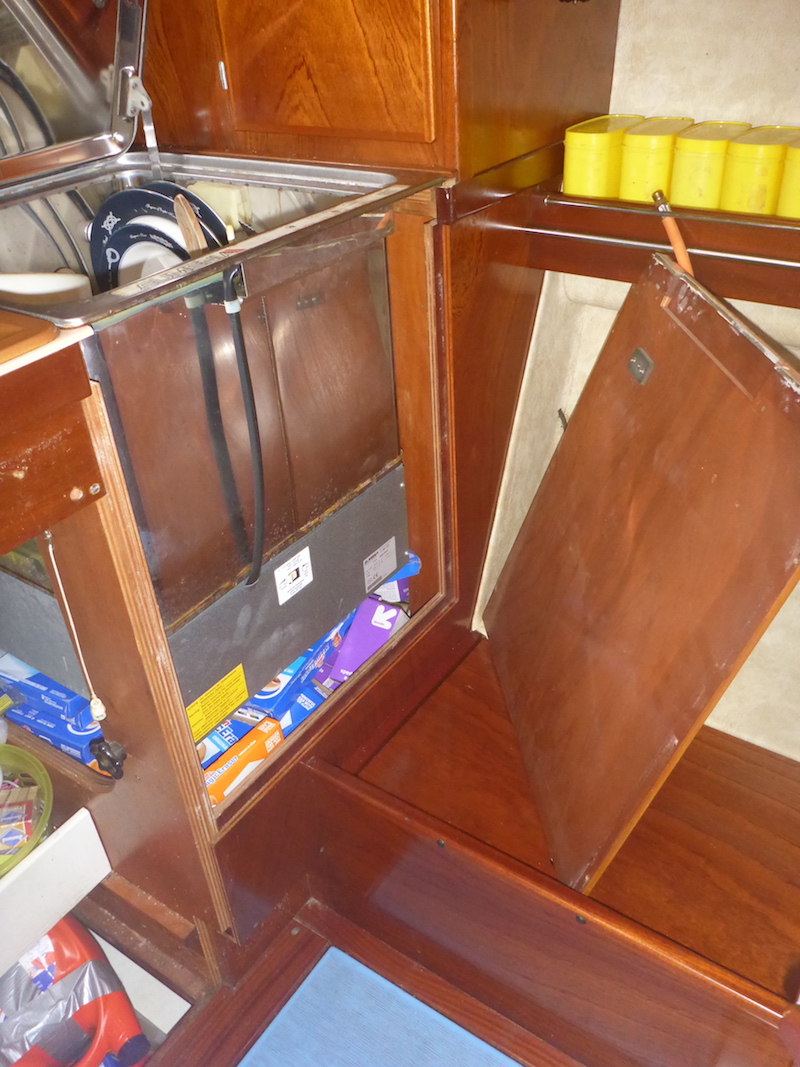

Slide the panel out
 Amel Super Maramu 2000 Eumenia dishwasher access

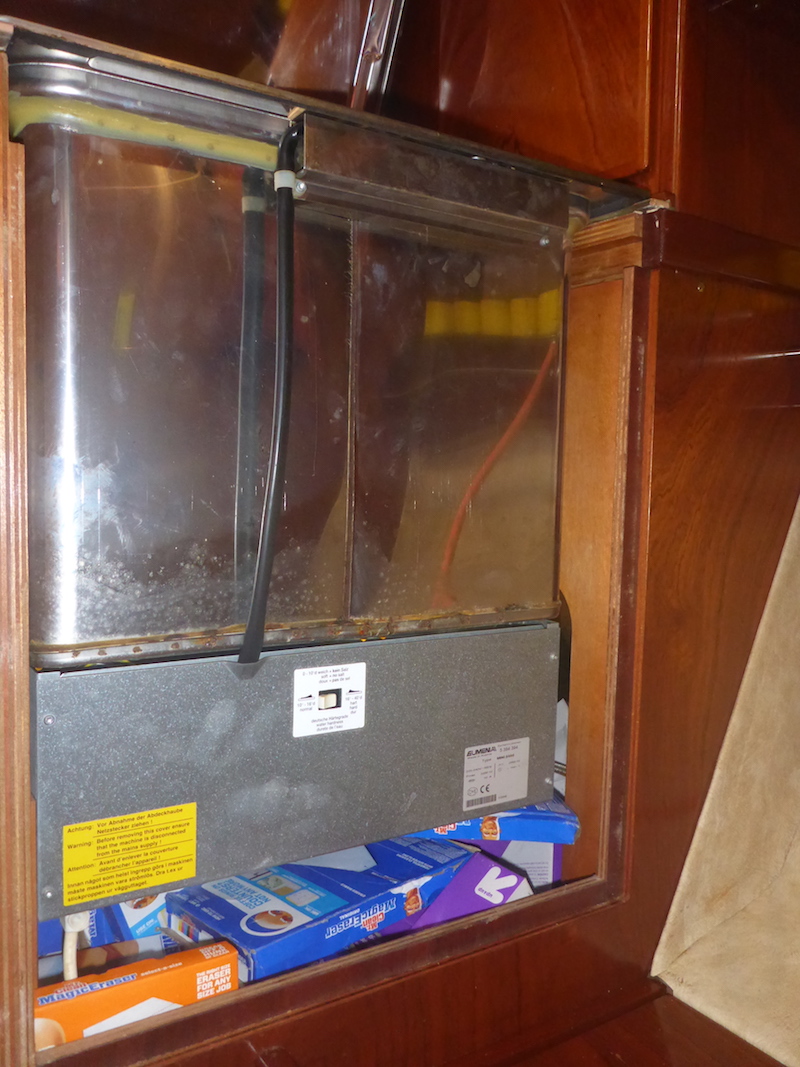

Access to the dishwasher
 Amel Super Maramu 2000 Eumenia dishwasher access

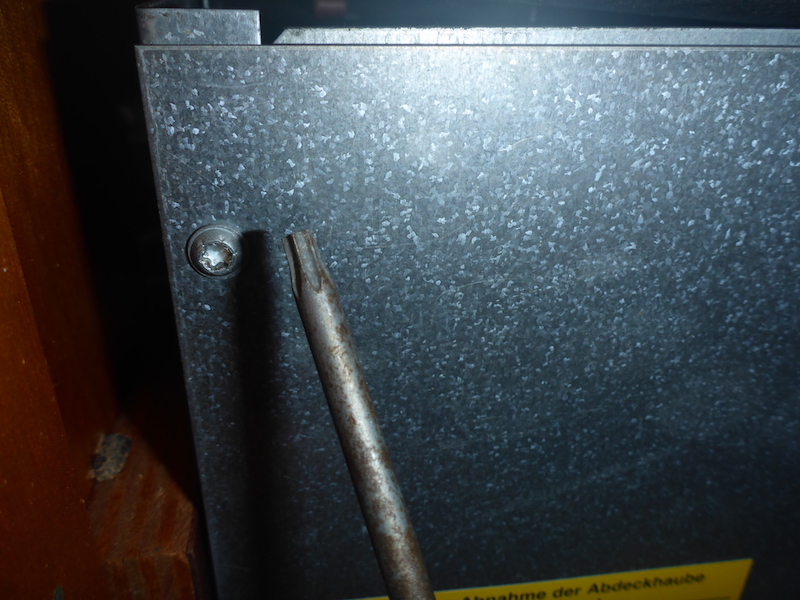

You will need a "Torx" (or star) screwdriver to open it
 Amel Super Maramu 2000 Eumenia dishwasher access

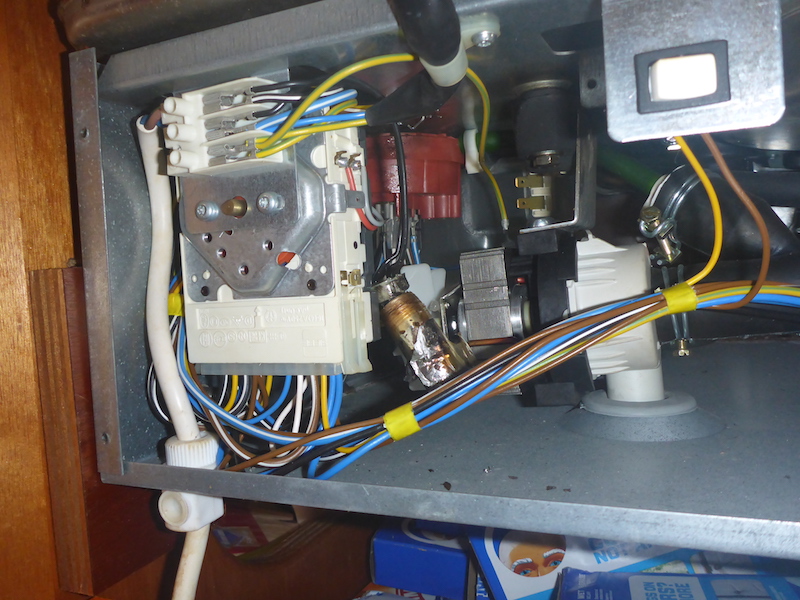

In my case I found my problem: a blown up capacitor
 Amel Super Maramu 2000 Eumenia dishwasher access

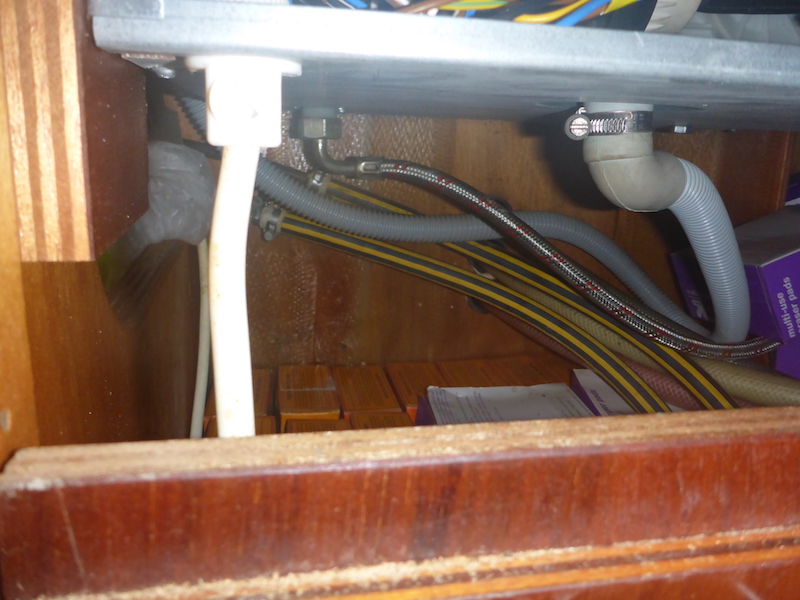

More exploring
 Amel Super Maramu 2000 Eumenia dishwasher access



Putting back the panels for the Eno Dishwasher
